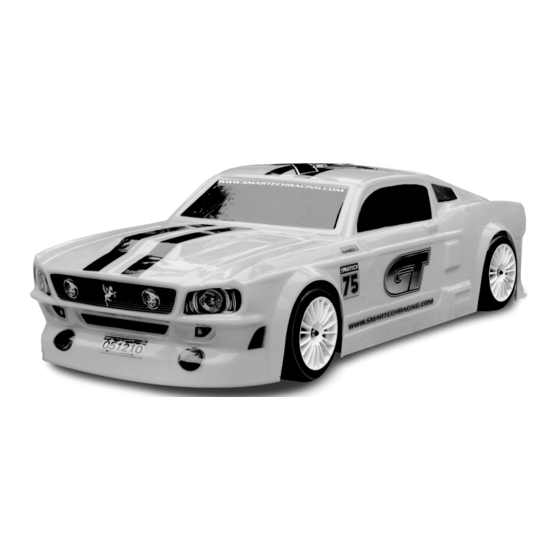

Smartech 051210 Instruction Manual

1/5 scale 2wd gas-powered on-road car
Hide thumbs

Advertisement

Quick Links

Download this manual
1/5 SCALE 2WD GAS-POWERED
ON-ROAD CAR
WWW.SMARTECHRACING.COM
WWW.SMARTECHRACING.COM
ITEM NO .: 051210
Instruction Manual
TECHNICAL DATA
Length
Width
Height
Wheelbase
Tread(Front)
Tread(Rear)
Wheel Diameter
Gear Rate
Weight
Engine
FEATURES
23CC GASOLINE ENGINE
EQUIPPED WITH ALUMINUM EXHAUST PIPE
HIGH EFFICIENCY SHAFT DRIVE STYLE 2WD SYSTEM
AND INDEPENDENT SUSPENSION
STEEL DIFFERENTIAL BEVEL GEAR
FULL BALL BEARING SYSTEM
SENSITIVE DISK BRAKE SYSTEM
REALISTIC LIGHT SYSTEM (HEAD.TAIL.TURNING.
BRAKE LIGHT INCLUDED)
Our company have the right to change
or modify this manual without notice.
920mm
390mm
200mm
530mm
390mm
395mm
125*65mm
5:1
9Kg
23CC

Advertisement

loading
Need help?

Need help?

Do you have a question about the 051210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smartech 051210

Summary of Contents for Smartech 051210

  • Page 1 ITEM NO .: 051210 Instruction Manual 1/5 SCALE 2WD GAS-POWERED TECHNICAL DATA ON-ROAD CAR Length 920mm Width 390mm Height 200mm Wheelbase 530mm Tread(Front) 390mm Tread(Rear) 395mm Wheel Diameter 125*65mm Gear Rate Weight Engine 23CC FEATURES 23CC GASOLINE ENGINE EQUIPPED WITH ALUMINUM EXHAUST PIPE...

  • Page 2: Tools Needed For Assembly

    In case of any porblems concerning your car please contact your local Half forward hobby shop! Full forward Battery We wish you good luck and a lot of fun driving with your SMARTECH "AA" battery cover or Ni-cd(*8) Transmitter Steering Engine throttle model car.
  • Page 3 Installing servo for steering and throttle Installing or receiver and battery 051083 051083 Self-tap screw Self-tap screw 3*12mm x4 3*12mm x4 113110 050400 051083 Grub self-tap screw 113100 4.2*16mm x4 051083 051068 M3 nylon lock nut x4 051068 051083 Screw M3*15 050400...
  • Page 4 Installing the steering Linkage of throttle and brake 051068 051083 050320 051052 051051 051055 M3 nylon lock nut x2 Self-tap screw Grub screw Inner hexagon Inner hexagon Screw M3*16 x2 M3*12mm x3 M4*16 x1 screw M4*20 x4 screw M4*25 x1 050770 050770 051035...
  • Page 5 Motor throttle operation and rear wheel brake Construction of the front wheel brake 050770 051045 050690 051054 051046 Socket head cap Set collar 6*2*5 x3 Silicone pipe 4*10 x1 Round Head Screw Set Screw screw M3*10 x1 M3*20 x2 M3*3 x1 051053 051380 Socket head cap...

  • Page 6: Front Axle

    Attaching the bowden wires Front axle 051046 050420 050360 050400 051082 050350 Inner hexagonal grub 051063 Grub screw Grub screw Grub self-up screw Inner hex.p.h.screw Damper shaft x2 screw M3*3 x3 M5*10 x8 M5*5 x4 4.2*16mm x4 M5*27 x4 051046 051062 Locking socket 5 x3 051380...
  • Page 7 Upper damper and body mount Rear axle 051065 05103 051057 051022 051059 051059 Inner hex.p.h.screw Inner hex.p.h.screw Inner hex.p.h.screw Self-tap screw Self-tap screw Round head self-tap M5*35mm M5*30mm M4*25mm x2 3*19mm x2 4.2*23mm x2 screw 4.2*23mm x6 051059 051016 050300 051058 050990 051060...
  • Page 8 Attaching the wheel Muffler and fuel tubes 05036 05030 Plain head screw Grub screw M4*8 x1 M5*5 x2 05106 M6 nylon lock nut x4 051001 Washer 12*6.2*1.5 052003 Washer 12*6.2*1.5 x4 M6 nylon lock nut Rear body support 051059 051053 051068 Self-tap screw Inner hexagonal...

  • Page 9: Rear Body Mount

    Attaching bumper and optional part Motor Plug Parts used Screw for mixture Ignition switch ar idling 051027 M4 nylon lock nut x3 050320 Fuel pump Flat head screw M4*16 x3 050400 051067 Grub self-tap screw 4.2*16mm x6 051067 Air filter Screw for mixture 050400 at full throttle...

  • Page 10: Starting The Cold Engine

    1. Initial operation of the engine 4. Carburetor adjustment Always check if the air filter is mounted correctly and firmly before starting The adjustment of the carburetor is pre-set by the factory to the local the engine. The basic adijustment of the engine is set by the factory. The conditions.
  • Page 11 Engine does not start WARNING: Problem Cause Reparation Fuel must never be poured into the waste water or anywhere else. This No spark in the spark plug would be punishable facts of the case. In the sewer there is an extreme risk of explosion by spontaneous ignition even at low temperature with 1.
  • Page 12 Spare parts of 051210 (SMT) 1 050040 - Front upper suspension 050050 - Front lower suspension 050060 - Rear lower suspension 050070 - Rear upper suspension 050080 - Rear gear mount left 1p arm left 1P arm left 1P arm left 1P...
  • Page 13 Spare parts of 051210 (SMT) 2 051006 - Rear body mount 2 2P 051007 - Rear body mount 3 2P 051008 - Wheel rim 2P 051009 - Tire 051010 - Tire Unit 2P - Tire foam 2P 051011 - Servo tray 1P...
  • Page 14 Spare parts of 051210 (SMT) 3 051026 - Body mount 2P 051027 - Sponge mount 6P 051028 - Shock absorber unit 2P 051029 - Connecting hub for wheel 051030 - Connecting hub for (long) 2P wheel (short) 2P 051031 - Front wheel axles 2P...
  • Page 15 Spare parts of 051210 (SMT) 4 050520 - Diff. bevel gear 050530 - Differential bevel gear 050540 - Spacer sleeve1 1P 050550 - Ball end A 5P 050560 - Rear axle outdrive 2P - Differential shaft 1P (main) 2P - Spacer sleeve2 2P...
  • Page 16 Spare parts of 051210 (SMT) 5 050730 - Rear gear shaft 1P 050740 - Slice A 1P 050750 -Upper steering mount 1P 050760 - Set collar A 4P 050770 - Set collar B 5P - Slice B 1P 050780 - Sleeve 8P...
  • Page 17 Spare parts of 051210 (SMT) 6 051160 - Rear lower swing arm 051170 - Rear upper swing arm 051180 - Upper shock absorber 4P 051190 - lower shock absorber 4P 051200 - Shock spring mount 4P (right) 1P (right) 1P...
  • Page 18 Spare parts of 051210 (SMT) 7 051081 - Gear cover (SMT) 1P 051039 - Locking ring 2P 051040 - Front brake disk slice 051041 - Brake cable 2P 051042 - Bent header unit 1P - Gear washer - Front brake friction pads 4P...
  • Page 19 Spare parts of 051210 (SMT) 8 051051 - Inner hexagon screw 051052 - Inner hexagon screw 05039 - Inner hexagon screw 05039 - Inner hexagon screw 05039 - Inner hexagon column M4*25 5P M4*20 8P M3*23 5P M3*20 4P screw M3*14 4P...
  • Page 20 Spare parts of 051210 (SMT) 9 05139 - E-ring Φ6 4P 051066 - Nylon unt M5 5P 051067 - Nylon lock unt M4 14P 05106 - Nylon unt M6 5P 051068 - Nylon lock unt M3 4P 05140 - E-ring Φ7 10P 05138 - E-ring Φ5 10P...
