Smartech 053420 Instruction Manual

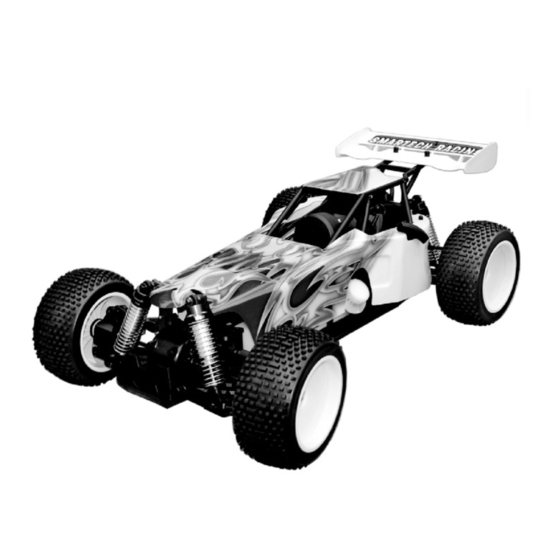

1:5 scale 4wd off-road buggy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

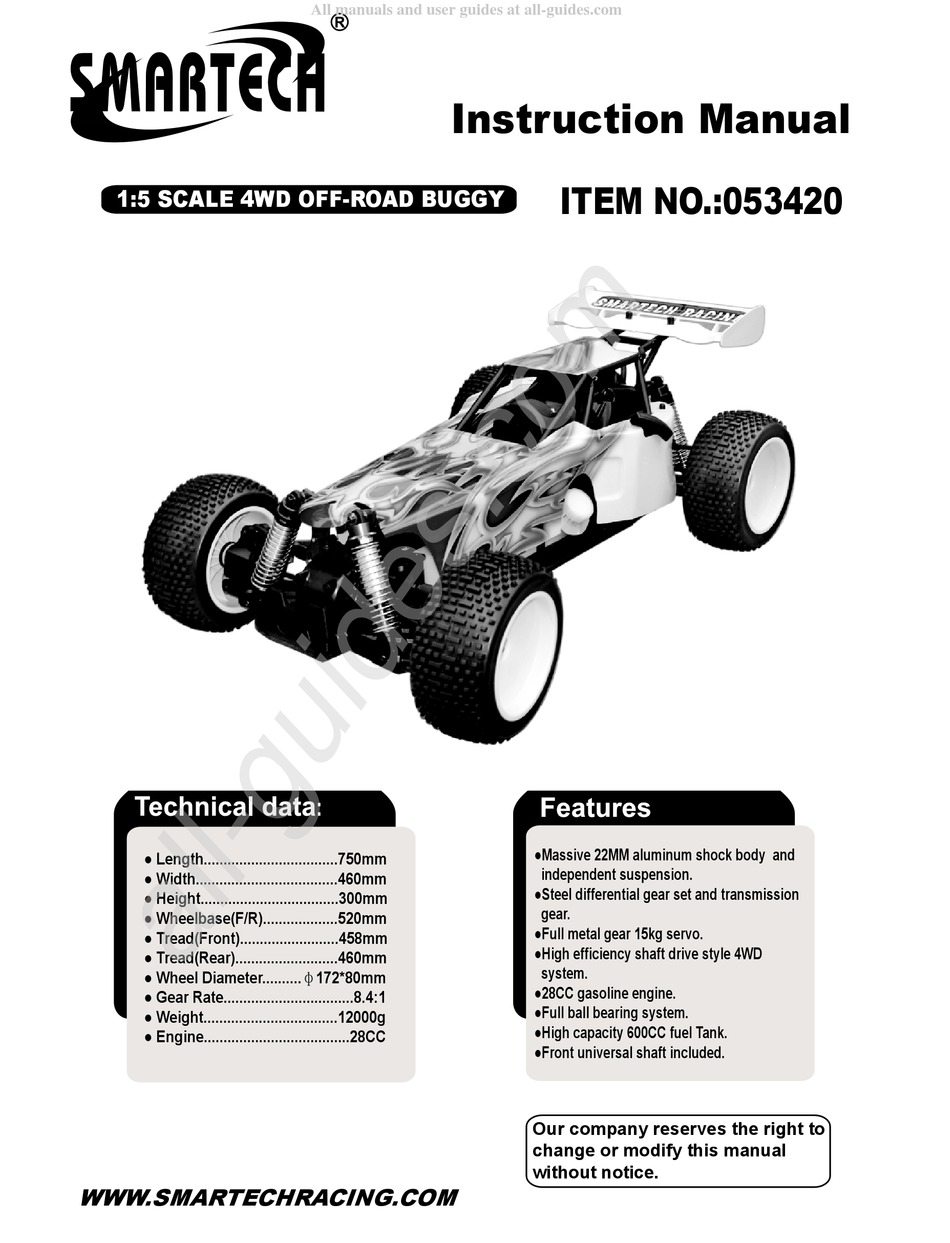

1:5 SCALE 4WD OFF-ROAD BUGGY
● Length..................................750mm
● Width....................................460mm
● Height...................................300mm
● Wheelbase(F/R)...................520mm
● Tread(Front).........................458mm
● Tread(Rear)..........................460mm
● Wheel Diameter..........φ172*80mm
● Gear Rate.................................8.4:1
● Weight..................................12000g
● Engine.....................................28CC
WWW.SMARTECHRACING.COM
All manuals and user guides at all-guides.com
Instruction Manual
ITEM NO.:053420
●Massive 22MM aluminum shock body and
independent suspension.
●Steel differential gear set and transmission
gear.
●Full metal gear 15kg servo.
●High efficiency shaft drive style 4WD
system.
●28CC gasoline engine.
●Full ball bearing system.
●High capacity 600CC fuel Tank.
●Front universal shaft included.
Our company reserves the right to
change or modify this manual
without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 053420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smartech 053420

Summary of Contents for Smartech 053420

  • Page 1 All manuals and user guides at all-guides.com Instruction Manual ITEM NO.:053420 1:5 SCALE 4WD OFF-ROAD BUGGY ●Massive 22MM aluminum shock body and ● Length........750mm independent suspension. ● Width........460mm ●Steel differential gear set and transmission ● Height........300mm gear. ● Wheelbase(F/R)....520mm ●Full metal gear 15kg servo.
  • Page 2 All manuals and user guides at all-guides.com The following items are needed for car assembly,please read this instruction manual carefully before operation. head head Addition items required for engine staring (Not included in car) Super Glue carefully before using,The servo must be set in Antenna then then...
  • Page 3 All manuals and user guides at all-guides.com problems pipe or abrupts carbon buid-up Air filter clogged air filter were blocked carbon build-up didn’t carbon build-up. something wrong with the al of Betteries of dry off. doesn’t Make sure the car is completely assemblied open space.
  • Page 4 All manuals and user guides at all-guides.com Fully extend receiver, turn on then rwise, while adding fuel. Please make sure using the fuel filter,fuel pipes and related components correctly,to avoid all probability abnormals on the fueling system. fuel inlet...
  • Page 5 All manuals and user guides at all-guides.com swiftly starts. after Blocked and air clogged is unavoidable when engine overheat. serious caused spark plug moisture. before drying or replace a spark plug. before stopping the engine. Air filter and sponge should be clean after running around 2 hours.

  • Page 6: Shock Absorber Assembly

    All manuals and user guides at all-guides.com Shock Absorber Assembly 054410 054409 054408 054408 054410 054410 054410 054410 054410 054410 054408 054410 054410 054410 054410 054410 054410 054408 054406 054407 Sφ8.0×7.6 φ10×φ4.2×1 φ9.5×φ6×2.4 φ9.7×φ5.7...
  • Page 7 All manuals and user guides at all-guides.com Diff Case Assembly 054077 Apply with proper quantities lubricating oil after gear set assembled. 960026 150004 054078 φ20×φ8.1×0.1 054077 054078 φ16×φ5.1×0.1 960026 054078 M3×6L φ5×42 Rear Section Assembly (One) 150020 152107 960013 054434 960013 054425 150021...
  • Page 8 All manuals and user guides at all-guides.com Rear Section Assembly (Two) 054054 054413 910067 054035 910074 910114 054041 054038 150059 054083 Sφ10×13.5 054061 054041 M4×16 054404 M5×28 M5×30 M5×95 54mm φ10×φ5.1×1.0 Rear Section Assembly (Three) 054033 054033 φ13×φ4.1×2.0T M4×21 910206 M4×32...
  • Page 9 All manuals and user guides at all-guides.com Front Section Assembly (One) φ3×17.5 φ5×17.5 054051 Sφ12 054053 054433 960013 950006 054427 960013 054414 054051 150021 054415 054042 M5×5 12mm 054415 φ8×φ5×6.0T φ12×φ8.1×1.0T M5×13 Front Section Assembly (Two) 054044 054412 910067 M3×12 910067 054431 M4×16 054431...

  • Page 10: Battery Case Assembly

    All manuals and user guides at all-guides.com Turning Servo Assembly 054067 910036 910166 054020 910036 054021 920003 910166 φ6.8×9L M3×8 M3×25 40mm M4×12 Throttle Servo Assembly Battery Case Assembly 083071 054022 054022 301030 910166 910166 054066 301320 054068 054067 M3×20 054068 φ1.0×19L M3×8...

  • Page 11: Engine Assembly

    All manuals and user guides at all-guides.com Completed Center Diff Assembly 054030 054029 054027 910166 054028 054030 054031 054028 054027 054320 054026 054081 (4pcs) 054080 054026 054025 910206 M3×3 054024 M4×12 M4×8 M3×12 M4×21 φ16×φ12.2×0.3T Engine Assembly 40140B 054084 920008 150034 054017 960012 054013...

  • Page 12: Roll Cage Assembly

    All manuals and user guides at all-guides.com Bumper Set Assembly 054011 054012 960008 054009 960008 920003 054009 054428 054008 920006 920003 960008 960008 920006 920003 054012 φ10×φ6×3T 054010 φ10×φ4×12h 18mm φ9×φ4×4.5L 18mm M3×25 Roll Cage Assembly 054420 054419 054432 054418 054432 054416 054417...
  • Page 13 All manuals and user guides at all-guides.com Rear Section Assembly 054423 054430 054422 910209 054063 054062 054430 910209 910172 M4×6 M4×16 M5×16 M4×12 Center Diff Mount Assembly 054061 054060 910067 M4×16...

  • Page 14: Engine Mount Assembly

    All manuals and user guides at all-guides.com Fuel Tank Mount Assembly 150052 M4×12 M4×10 φ2.9×1.8 H8×M4×24L 054065 054064 054065 054065(4pcs) Engine Mount Assembly 910208 M5×20...
  • Page 15 All manuals and user guides at all-guides.com Completed Radio Mount Assembly M4×12 M3×15 M4×16 910166 054068 910059 910067 Roll Cage Mount Assembly 910111 920006 054416 910067 910067 M4×17 M4×25 M4×16...
  • Page 16 All manuals and user guides at all-guides.com Tire Mount Assembly φ17×φ6.1×1.0T φ31×φ28×4.0T 054403 054403 054402 054402 950007 054401 920009 Roll Cage Tail Assembly 150063 054405 150063 054421 φ2.0×35...
  • Page 17 All manuals and user guides at all-guides.com 053420(SMT)PARTS LIST(1) 054401-Wheel unit　 2Sets 054403-Wheel rim unit 2Sets 054402-Tire unit　　　 2Sets 054404-Rear upper Pull ing Rod Ball Head 1sets 054405-Car body 1pcs 054406-Front shock absorber unit 054407-Rear shock absorber unit 2set 054408-Front/Rear shock absorber...
  • Page 18 All manuals and user guides at all-guides.com 053420(SMT)PARTS LIST(2) 054425-Rear lower susp arm 2Pcs 054426-Lower susp hingpin 4Sets 054428-Tie rod & ball end steering 054427-Drive shaft 2Sets 1Sets φ5*8pcs M5×15×2pcs 054429-Decal 054430-Bumper 054431-Roll Cage Frame 054432-Body pin 6Pcs M4×16×3pcs M3×12×1pc 054008-Steering draglink　...
  • Page 19 All manuals and user guides at all-guides.com 053420(SMT)PARTS LIST(3) 054026-Center diff.bevel gear(57T) 1set 054027-Brake shaft set 　 1set 054028-Brake rod set　 3Sets 054029-Throttle rod set　 1Set M4*8L *4pcs ISOHM4*4 *2pcs ISOHM3*3 *9pcs 054030-Throttle steering holder　 1Set 054031-Diff.brace　　 054033-Upper ball head for shodk 054034-Upper susp Hing pin w/ e-clip　　　...
  • Page 20 All manuals and user guides at all-guides.com 053420(SMT)PARTSLIST(4) 054060-Dogbone center front　　2Set 054061-Dogbone center rear　　2Set 054062-Rear center brace 　　　1Set 054063-Front center brace　　 1set M4*12 2pcs M4*12 2pcs 054064-Fuel pipe set 1Set 054065-Fuel tank unit　　 1Set 054066-Battery 　 054067-Servo mount　 1Set M4*12 4pcs M4*10 4pcs 054068-Battery case　　...
  • Page 21 All manuals and user guides at all-guides.com 053420(SMT)PARTS LIST(5) 920003-Locknut M3 6pcs 920006-Locknut M4 6pcs 920008-Locknut M5 6pcs 920009-Locknut M6 6pcs 930005-E-clip Φ4 6pcs 930003-E-clip Φ5 6pcs 960008-Bearing 6*10*3 6pcs 960011-Bearing 10*19*7 6pcs 960012-Bearing 10*22*6 6pcs 960013-Bearing 8*22*7 6pcs 960026-Bearing 12*24*6 6pcs 054080-Washer 16*12.2*0.3T...
  • Page 22 All manuals and user guides at all-guides.com 053420(SMT)PARTS LIST(6) 910172-Flat head screw M4*12 910204-Round head screwPT4*20 910111-Cap screw M4*20 910205-Button head screw PT5*28 6pcs 6pcs 6pcs 6pcs 910208-Flat head screw M5*20 910036-Fiat head screw ISO3*25 910206-Round head screw M4*21 910209-Flat head screw M5*16...
  • Page 23 All manuals and user guides at all-guides.com 053420 Explode Chart (1)/054421 Note: the marks (1),(2),(3),(4),(5),(6)in this chart correspond with the parts list. (1)/054405 (1)/054419 (2)/054432 (3)/054033 (4)/150052 (1)/40140B (4)/054065 (5)/920009 (4)/083071 (4)/150063 (5)/950007 (4)/054084 (1)/054419 (6)/910111 (4)/054064 (1)/054416 (5)/920008 (1)/054418...
  • Page 24 All manuals and user guides at all-guides.com 053420 Explode Chart (1)/054421 Note: the marks (1),(2),(3),(4),(5),(6)in this chart correspond with the parts list. (1)/054405 (1)/054419 (2)/054432 (3)/054033 (4)/150052 (1)/40140B (4)/054065 (5)/920009 (4)/083071 (4)/150063 (5)/950007 (4)/054084 (1)/054419 (6)/910111 (4)/054064 (1)/054416 (5)/920008 (1)/054418...
