Page 1: User Manual
User Manual Issue B... -
Page 3: Table Of Contents
QX User Manual – Issue B Contents CONTENTS ................................3 INTRODUCTION ..............................5 ................................. 5 VENT & S ............................5 REAS ROUPS ................................5 IRCUITS ....................5 ET GROUP AND IRCUIT DENTIFICATION ................................ 5 ODES OPERATOR CONTROLS AND DISPLAYS....................6 ............................... - Page 4 QX User Manual – Issue B CHIME ................................22 PRINT TEXT..............................22 IDENTIFY USER............................... 23 CCT STATUS ..............................23 APPENDIX A – USER AUTHORITIES......................24 APPENDIX B – EDITING TEXT........................25 APPENDIX C - SYSTEM DETAILS ....................... 26 ................................26 EYPADS ................................
-
Page 5: Introduction

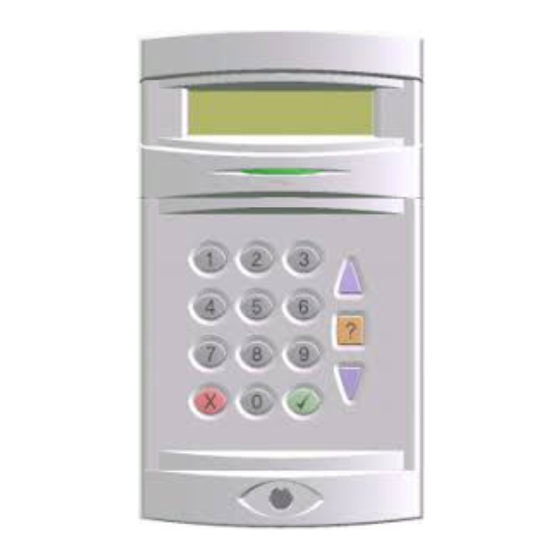

QX User Manual – Issue B Introduction The QX Electronic Intruder Alarm System is designed to provide secure protection for the installation. The system comprises a main control panel, normally located out of sight in a secure area, and at least one keypad. -
Page 6: Operator Controls And Displays
A user PIN code can be replaced by a proximity card or fob if the keypad is fitted with the optional proximity reader. All Guardall proximity cards and fobs are manufactured with a unique code and duplicate cards or fobs cannot be obtained. Spare or replacement cards or fobs can be obtained from the installation company. -
Page 7: Using The System
QX User Manual – Issue B Using the System The LCD keypad will normally display the time, date and company name. If a valid code is entered the user menu will normally be displayed. The default manager code is 0202 . -
Page 8: Easy Set
QX User Manual – Issue B Easy Set If your system is programmed with the easy set option then all PIN codes are 4 digits long and PIN codes can be entered without confirming with the button. A proximity card or fob may still be used in place of a PIN when easy set is programmed. -
Page 9: Incorrect Codes
QX User Manual – Issue B Incorrect Codes If Easy Set is not programmed and an incorrect user code is entered, the incorrect code message will be displayed for a few seconds or until another key is pressed. The installation engineer will have programmed a limit on the number of incorrect code attempts that can be made. -
Page 10: Set
1. A user request on a keypad 2. A user activating a keyswitch 3. Automatically by a timer schedule 4. Remotely from a PC using the Guardall GuardStation software Setting modes include: 1. Instant, where setting is completed immediately 2. Timed, where setting is completed at the end of the programmed exit time 3. -
Page 11: Cancelling Setting
QX User Manual – Issue B Cancelling Setting The setting procedure can be cancelled at any time during the exit time by pressing on the keypad that was used to start setting, logging on to any other keypad or turning a keyswitch to the unset position. -
Page 12: Setting Faults
QX User Manual – Issue B Setting Faults If the group cannot set a message will be displayed. This can occur at the start of setting or at the end of the exit time depending on how your system is set up and when the fault occurs. If a fault occurs during the exit time the exit tone will change to a warning tone. -
Page 13: Unset
1. A user request on a keypad 2. A user activating a keyswitch 3. Automatically by a timer schedule 4. Remotely from a PC using the Guardall GuardStation software Your installation engineer should advise which of the above options have been programmed on your system. -
Page 14: Unsetting From A Keyswitch
QX User Manual – Issue B Unsetting from a keyswitch To unset an area from a keyswitch, turn the keyswitch to the unset position. The area under the control of the keyswitch will immediately unset. Automatic Unsetting The system may have been programmed by the installation engineer to automatically unset all or parts of the system according to a pre-programmed schedule. -
Page 15: Reset
QX User Manual – Issue B Code-03 Reset The resetting method programmed by the alarm company engineer for each area and the system will depend on the particular security requirements of the area or system. There are 3 types of reset: 1. -
Page 16: Test
QX User Manual – Issue B Code-04 Test Each area of the system can be tested individually or all areas can be tested at the same time. The test time is limited to 1 hour. If the user does not end the test by the end of the test time then the panel will exit test mode automatically. -
Page 17: Engineer
QX User Manual – Issue B Code-05 Engineer The Eng option will only be available if the system is configured for user authorised engineer access. This option applies to both local and remote engineer access. When the Eng option is selected the system will prompt for the engineer PIN code to be entered. -
Page 18: User
QX User Manual – Issue B Code-07 User A manager user can change the name, user code and authority for any user except the engineer. To modify a user’s details enter the user number in the range 2-15. In the programming example user 3 is used. -
Page 19: Authority
QX User Manual – Issue B User Menu Code-3 Authority Users can be programmed with a number of options including authority level, group access and timed access. The available menu options are dependent on the programmed user authority. Refer to the... -
Page 20: Tel Number
QX User Manual – Issue B Code-08 Tel Number An authorised user can change any telephone number that has been programmed to use the home beep format. A telephone number of up to 16 digits can be programmed. This number can include pause digits. -
Page 21: Logs
QX User Manual – Issue B Logs The panel logs all events that occur in the system. All events stored in the event log are numbered in the range 0-65535 (the event index). The event index will be reset to 0 when more than 65535 events have been recorded. -
Page 22: Time
QX User Manual – Issue B Code-20 Time Some users have the authority to change the time by up to 75 minutes from the time set by the engineer if the user clock edit option is programmed. Time changes are recorded in the event log. -
Page 23: Identify User
QX User Manual – Issue B Code-52 Identify User This option allows a user to be identified by presenting the card/fob. 52=Identify User Present Card/Fob User 3 fob presented Unused card/fob presented Code Not Used User 3 J Smith User 20 fob presented... -
Page 24: Appendix A - User Authorities
QX User Manual – Issue B Appendix A – User Authorities All user options with the appropriate authority level are shown in the table. Code Menu Option Unset Reset Test Engineer Code User Log-Full Log-Cct Log-User Log-KP Log-Date Log-Alarm Time... -
Page 25: Appendix B - Editing Text
QX User Manual – Issue B Appendix B – Editing Text A number of text descriptors may be changed by an authorised user. Item Max. Length Default User User xx Set group Group x User Number-03 When a descriptor is displayed the character being edited will... -
Page 26: Appendix C - System Details
QX User Manual – Issue B Appendix C - System Details Number of Areas Number of Keypads Number of Circuits Number of Users Service Number Contract Number Keypads Number Location Users Number Description Areas - 26 -... -
Page 27: Circuits
QX User Manual – Issue B Circuits Number Description Location Cct 1 Cct 2 Cct 3 Cct 4 Cct 5 Cct 6 Cct 7 Cct 8 Cct 9 Cct 10 Set Groups Number Description Areas - 27 -... - Page 28 Guardall Limited Lochend Industrial Estate Newbridge Edinburgh EH28 8PL Tel: 0131-333-2900 FAX: 0131-333-4919 Technical Hotline: 0131-333-3802 Part Number: 320863-0B...
