Botex MPX-405 Operation Manual

PRODUCT DESCRIPTIONS:
This model is a 4 channel DMX & MIDI Power Pack, has RECEIVING & CHASING operating modes, built-in EEPROM
is incorporated with this unit to store operating mode and programming options.
TECHNICAL SPECIFICATIONS:
POWER INPUT ...................................................................................................................... AC 230V~50Hz, 16A max.
CHANNEL OUTPUT .......................................................................................................................... 5A /CH., Total 16A
FUSE ........................................................................................................................... (Internal)F0.315A 250V 5x20mm
............................................................................................................................(CH. Fuse) F6.3A 250V 5x20mm
DIMENSIONS ........................................................................................................................................ 212x188x71mm
WEIGHT ................................................................................................................................................................ 2.4Kg

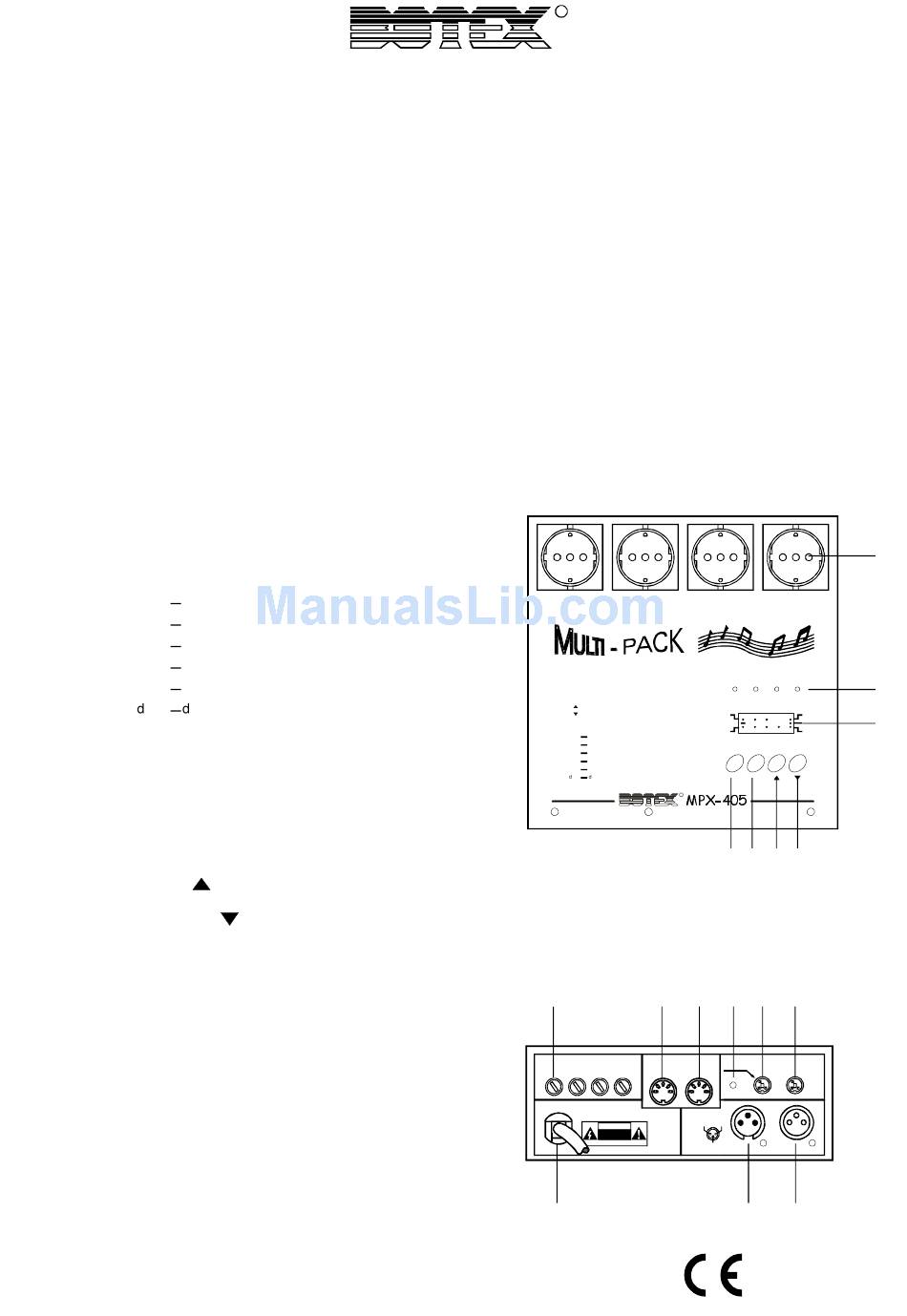

CONTROLS & FUNCTIONS
1. CHANNEL OUTPUT
5A per channel, Total 15A.
CHANNEL LEDs
2.
It is lit when corresponding channel is ON.
3. LCD DISPLAY
It shows the operating mode and function parameter,
specified as follows:
CH:01 CH:16
n:001 n:128
A:001 A:512
P:01 P:16
SP:01 SP:99
:000 :100
4. MODE BUTTON
Press to select operating mode from RECEIVE and
CHASE modes.
5. MENU BUTTON
Press to select display item in LCD.
MODE+MENU BUTTONS
Press to select RECEIVE mode between Separate and
Parallel modes.
6. UP BUTTON
Press to increase the display value.
7. DOWN BUTTON
Press to decrease the display value.
8. POWER INPUT
AC 230V~50Hz, 16A max.
9. DMX IN
Use to receive DMX data.
10. DMX OUT
Use to output DMX data.
11. CHANNEL FUSE
F6.3A 250V 5x20mm
12. MIDI IN
Use to receive MIDI data.
13. MIDI THRU
Use to output the data received on the MIDI IN
connector.
14. REMOTE INFRARED SENSOR
Use to detect the remote infrared signals.
15. LINK IN
Use to receive the information from another Midipak
or plug in external infrared detector.
16. LINK OUT
Use to output the information to another Midipak.
MULTI PACK
OPERATION MANUAL
MIDI-IN CHANNEL
NOTE NUMBER
DMX CHANNEL
CHASE PROGRAM
CHASE SPEED
CHASE DIMMER
R
OUTPUT:5A/CH,TOTAL16A Max.
OPERATION
MODE: SelectRECEIVEor CHASE .
MENU: SelectDISPLAY ITEMS.
MODE+MENU: SelectCh.Separate/Parallel.
: IncreaseDISPLAYITEMS.
: DecreaseDISPLAYITEMS.
DMXSignal
DISPLAY ITEMS
MIDISignal
CH:01 CH:16
MIDI-INCHANNEL
n:001 n:128
NOTENUMBER
A:001 A:512
DMXCHANNEL
P:01 P:16
CHASEPROGRAM
SP:01 SP:99
CHASESPEED
:000 :100
CHASEDIMMER
R
12 13
11
F6.3A 250V 5x20mm MIDI
1 2 3 4 IN THRU
POWERINPUT:
AC 230V~50Hz,16Amax
2
CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
1=Ground
N'OUVREZPAS..RISQUEDECHOCELECTRIQUE
WARNING: 2=Data-
THISAPPARATUSMUSTBEEARTHED 3
3=Data+
8
1
2
1CH. 2CH. 3CH. 4CH.
Receive
8 8 8 8
3
Parallel
Chase
MODE MENU
4 5 6 7
14 15 16
INFRARED LINK
EX.SENSOR
IN OUT
1
DMXIN DMXOUT
9 10
