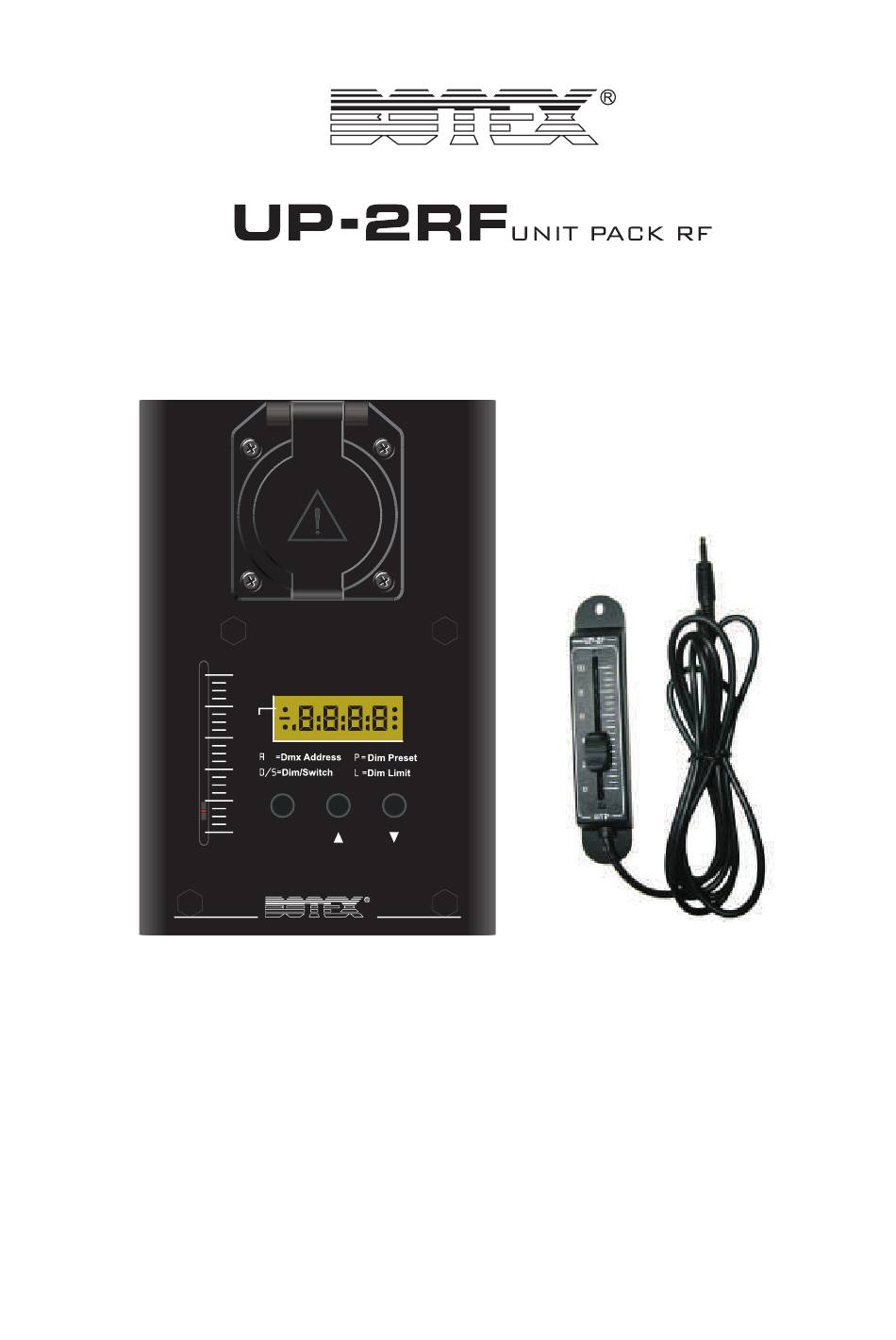

  • Page 1 OUTPUT : 10A Max. UP-2RF UNIT PACK RF MENU User's Manual...

  • Page 3: Table Of Contents

    Contents Features 1 General Instructions 2 1. Overview 3 1.1 Front Panel 3 1.2 Rear Panel 4 2. Operation Guide 5 2.1 DMX Address Mode 5 2.2 Switch Pack Mode 6 2.3 Dimmer Pack Mode 7 Technical Specifications 10...

  • Page 4: Features

    Features Thank you for your purchase. This product features include: 3-pin standard DMX IN/OUT ports providing dimmer information Serves as a Switch Pack or Dimmer Pack, depending upon the current operating mode. Allows DMX Addressing, Dimmer Preset and Dimmer Limit. Power failure memory.

  • Page 5: General Instructions

    General Instructions Please read through this operating instructions before installing or using your new product. After you have finished reading the instructions, put them away in a safe place for future reference. Safe and Efficient Use This product must be earthed. Do not make any inflammable liquids, water or metal objects enter the unit.

  • Page 6: Overview

    1. Overview 1.1 Front Panel OUTPUT : 10A Max. UP-2RF UNIT PACK RF MENU 1. Output: 10 A max. Segment Display: Shows current activity or function state. Menu button: Press to enter next level. 4. Up button: Each tap will increase the value once.

  • Page 7: Rear Panel

    1. Overview 1.2 Rear Panel 1. Power Cord: Plug in the appropriate power outlet. 2. Fuse: F10A 250V 5x20mm DMX In: 3-pin XLR male socket, used to receive DMX data. DMX Out: 3-pin XLR female socket, used to send DMX data. 5.

  • Page 8: Operation Guide

    2. Operation Guide General Plug in the appropriate power outlet, this unit recovers to the function state of last time automatically by reasons of power failure memory, and the Segment Display shows the DMX address of last change. If the frequency of power is not stable, the Segment Display will show "AC-0", wait until the power is stable.

  • Page 9: Switch Pack Mode

    2. Operation Guide 2.2 Switch Pack Mode - - - .8:8:8:8 1. When DMX address is complete, Press Menu button to enter next level. MENU s - - - 2. Tap the Up or Down button causing the Segment .8:8:8:8 Display shows "s---".

  • Page 10: Dimmer Pack Mode

    2. Operation Guide 2.2 Switch Pack Mode .8:8:8:8 4. Tap the Up or Down button to change between Switch On and Switch Off. MENU 5. Once the Switch Pack is selected, press Menu button to return to DMX Address mode. MENU 2.3 Dimmer Pack Mode 1.
  • Page 11 2. Operation Guide 2.3 Dimmer Pack - - - .8:8:8:8 2. Tap the Up or Down button causing the Segment Display shows "d---". MENU 3. Press Menu button to enter Dimmer Limit mode. MENU 4. Tap the Up or Down button to change the value within the range of 10-100.
  • Page 12 2. Operation Guide 2.3 Dimmer Pack Mode 4. Tap the Up or Down button to change the value within the range of 00-100. Each tap will change the value once, pressing and holding down will change the value quickly. MENU Once the Dimmer Preset is selected, it will be stored automatically.

  • Page 13: Technical Specifications

    Technical Specifications Power Input ............AC 230V~50Hz, 10 A max. Channel Output ................10 A max. DMX OUT ..............3-pin XLR female socket DMX IN ............... 3-pin XLR male socket Fuse ................. F10A 250V 5x20mm Dimensions ................182x92x65mm Weight ....................1.1 Kg...
  • Page 16 24-004-1300 Version 1.0 September, 2004 Printed in PR China...
