- Page 1 User manual X-DIMMER-1 PRO...
-
Page 2: Table Of Contents
Table of contents Safety instructions ........................... 3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Introduction ............................4 Delivery package ..........................4 Technical data ..........................5 Operation ............................5 5.1. DMX Control Mode (DMX Addressing) ................... 5 5.2. Manual Control Mode ......................6 Technical Drawing ........................... -
Page 3: Safety Instructions
1. Safety instructions This device is suitable for indoor use only. All modifications to the device will void the warranty. Repairs are to carry out by skilled personnel only. Use only fuses of the same type and original parts as spare parts. Protect the unit from rain and humidity to avoid fire and electric shocks. -
Page 4: Introduction

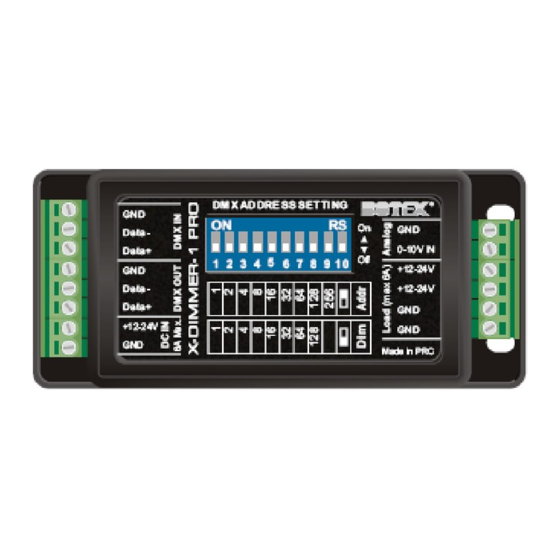

European safety standards. 2. Introduction Thanks for purchasing our product. Read the manual carefully before using our BOTEX X-DIMMER-1 PRO. This unit serves as a signal channel dimmer. A maximum of up to 6A loads are allowed on a single output, DMX address are addressed by flipping the dip switch. -
Page 5: Technical Data
4. Technical data Power requirement 12~24VDC 6.5A max. Output (6A max.) 3-pin terminal connector for DMX out 4-pin terminal connector for LOAD Input 2-pin terminal connector for Power In 2-pin terminal connector for Analog In 3-pin terminal connector for DMX In Ingress Protection Rating IP20 Housing... -
Page 6: Manual Control Mode
A DMX value (address) is set by combining the different dip switches that will add up to the value you wish to achieve, for example: Setting DMX address for 21. Flip switches 1, 3 & 5 to the “ON” position. 1=1, 3=4, 5=16 1+4+16=21 Setting DMX address for 201. - Page 7 The intensity is set by combining the different dip switches that will add up to the value you wish to achieve for example: Setting the Intensity for 21. Flip switches 1, 3 & 5 to the “ON” position. 1=1, 3=4, 5=16 1+4+16=21 Setting the Intensity for 201.
-
Page 8: Technical Drawing
6. Technical Drawing Connecting the X-CHIP-100 ND modules to the X-DIMMER-1 PRO 8 / 9... - Page 9 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 9 / 9...
