Summary of Contents for Botex UP-1

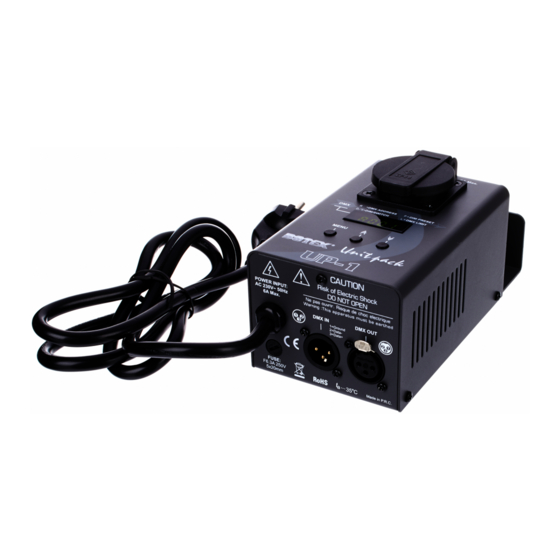

- Page 1 UP-1 - 1 Channel Dimmer dimmer pack...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 05.03.2020, ID: 152943...
-
Page 3: Table Of Contents
1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 13 Installation and starting up........................ 14 Connections and controls........................15 Operating..............................17 Technical specifications........................20 Plug and connection assignments....................21 Cleaning............................... 22 Protecting the environment......................23 UP-1 - 1 Channel Dimmer dimmer pack... - Page 4 UP-1 - 1 Channel Dimmer dimmer pack...
-
Page 5: General Notes
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. UP-1 - 1 Channel Dimmer dimmer pack... -
Page 6: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. UP-1 - 1 Channel Dimmer dimmer pack... -
Page 7: Notational Conventions
Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. UP-1 - 1 Channel Dimmer dimmer pack... - Page 8 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. UP-1 - 1 Channel Dimmer dimmer pack...
-
Page 9: Safety Instructions
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. UP-1 - 1 Channel Dimmer dimmer pack... - Page 10 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. UP-1 - 1 Channel Dimmer dimmer pack...
- Page 11 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. UP-1 - 1 Channel Dimmer dimmer pack...
- Page 12 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. UP-1 - 1 Channel Dimmer dimmer pack...
-
Page 13: Features
Features Features 1 dimmer channel, 6 A max. Output: 1 × Schuko socket outlet with hinged cover Digital control system Control via DMX 512 UP-1 - 1 Channel Dimmer dimmer pack... -
Page 14: Installation And Starting Up
Connect the output of the first DMX device to the input of the second one and so on, to form a series connection. Make sure that the output of the last DMX device in the chain is terminated by a resistor (110 Ω, ¼ W). UP-1 - 1 Channel Dimmer dimmer pack... -
Page 15: Connections And Controls
Connections and controls Connections and controls UP-1 - 1 Channel Dimmer dimmer pack... - Page 16 8 [DMX IN] DMX input. 9 Fuse holder. Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type. 10 Power cord. UP-1 - 1 Channel Dimmer dimmer pack...
-
Page 17: Operating
The display shows the last set DMX address, e.g. ‘A123’ . Use the arrow buttons to select a value between 1 and 512 (display shows ‘A001’ … ‘A512’ ). The setting is instantly applied. While setting the DMX address the output is switched off. UP-1 - 1 Channel Dimmer dimmer pack... - Page 18 Use the arrow buttons to choose between Switch On (display shows ‘S-on’ ) and Switch Off (display shows ‘S-oF’ ). Press [MENU] to apply the settings and return to adjusting the DMX address. UP-1 - 1 Channel Dimmer dimmer pack...
- Page 19 Press [MENU] to switch to Dimmer-Preset mode. Use the arrow buttons to set a value between 0 and 100 (display shows ‘L010’ … ‘L100’ ). The value is applied automatically. Press [MENU] to apply the settings and return to adjusting the DMX address. UP-1 - 1 Channel Dimmer dimmer pack...
-
Page 20: Technical Specifications
Operating supply voltage AC 230 V 50 Hz Fuse 5 mm× 20 mm, 6.3 A, 250 V, fast-acting Dimensions (W × H × D) 93 mm × 80 mm × 185 mm Weight 0.8 kg UP-1 - 1 Channel Dimmer dimmer pack... -
Page 21: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) UP-1 - 1 Channel Dimmer dimmer pack... -
Page 22: Cleaning
Clean with a dry soft cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use solvents or alcohol for cleaning. UP-1 - 1 Channel Dimmer dimmer pack... -
Page 23: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. UP-1 - 1 Channel Dimmer dimmer pack... - Page 24 Notes UP-1 - 1 Channel Dimmer dimmer pack...
- Page 25 Notes UP-1 - 1 Channel Dimmer dimmer pack...
- Page 26 Notes UP-1 - 1 Channel Dimmer dimmer pack...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
