Leviton QuickPort Duplex 106 Specifications

Component

Specifications

QuickPort

APPLICATION

Field-configurable housings in several NEMA styles that accept all
®
individual QuickPort
dia applications where a flush-mount electrical-wallplate look is
desired, or where there will be multiple devices—or a combina-
tion of electrical and voice/data devices—under a multi-gang
wallplate.

STANDARDS COMPLIANCE

Meets or exceeds all applicable standards: UL Listed; CSA
Certified; Complies with NEC
and meets FCC Part 68.

PHYSICAL SPECIFICATIONS

Capacity: Quad 106: 1-4 ports. Duplex 106: 1-2 ports
TR Plus: 1-2 ports w/token ring connector capability
Materials: High-impact, fire-retardant plastic rated UL 94V-0
Dimensions: Quad 106: 1.3"W x 4.1"H x 1.178" D (loaded)
Duplex 106: 1.5"W x 4.1"H x 1.2" D (loaded)
TR Plus 106: 1.5"W x 4.1"H x 1.2" D (loaded)

DESIGN CONSIDERATIONS

• Use where an electrical-outlet look & flush-mounting are impor-
tant.
• Fits most locations where NEMA duplex opening exists (includ-
ing floor monuments, access floor boxes, power poles, poke-
through fixtures, etc.).
• Gangable in single or multiple gangs.
• If ganged with electrical devices, a barrier box must be used.
• The TR Plus accommodates IEEE 802.5 token ring connectors.
• Put blanks (41084-B*B) in unused ports for future expansion.
• Specify port identification method (colored modules, designa-
tion labels, and custom silkscreening are available). To ID ports,
use different colored jacks for each application (full selection of
TIA/ EIA-606 compatible colors—13 available), or Leviton's pre-
printed Port Designation Labels. (Part #: 41080 LXB)

UNIQUE FEATURES

• Four color choices (Ivory, White, Gray, Black).
• Fits within minimum NEMA openings.
• Compatible with all individual QuickPort modules.
• Brass threaded insert for wallplate screw facilitates installation.
• The TR Plus version accommodates IEEE 802.5 token ring
connectors in a NEMA-style housing.
• Narrow module width allows high port density in a small area.
• The Quad 106 features a built-in termination station.
For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-722-2082
Spec sheets and updates are also available at www.levitonvoicedata.com.
2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA# GS-35F-4785G

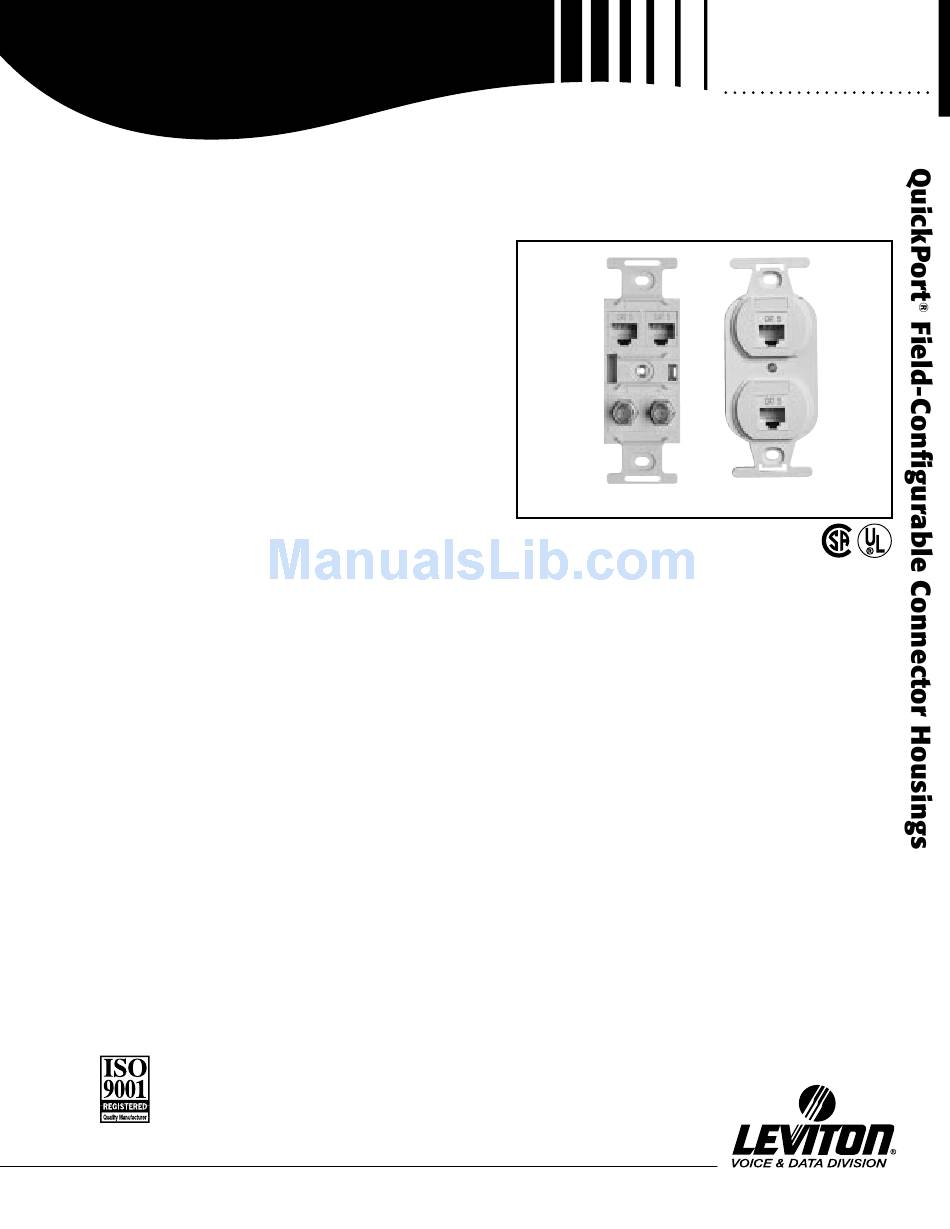

Field-Configurable Connector Housings
®
snap-in modules. Use to support multime-
®
Article 800 and TIA/EIA-568-A;
NEMA-Style Housings
See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk
For ELECTRONIC Typical Specs see (.TXT) file on disk.

TYPICAL SPECIFICATION

The workstation jack/connector housing shall be a field-configurable
NEMA-style housing that mounts flush in standard NEMA openings,
and under standard duplex electrical wallplates in single or multiple
gangs. It should provide ports which are field-configurable with a vari-
ety of simplex snap-in jacks/modules. Must be constructed of high-
impact, fire-retardant plastic rated UL 94V-0, and be UL Listed, CSA
Certified, and compliant with FCC Part 68 and TIA/EIA-568-A specifi-
cations. Colors, configurations and related wallplates to be specified
per schedule on plan. The manufacturer shall provide a one-year
limited product warranty and 15 year product performance guaran-
tee. The manufacturer shall provide a lifetime warranty against
defects in material and workmanship and an application guarantee
when installed as part of a certified system.

INSTALLATION NOTES

• Terminate jacks/modules, then snap them into housing from
the rear; housing screws to box, and NEMA plate screws to the
housing.
• Detailed installation instructions are included in the carton.
• Break off "T" arms for floor monument installation.

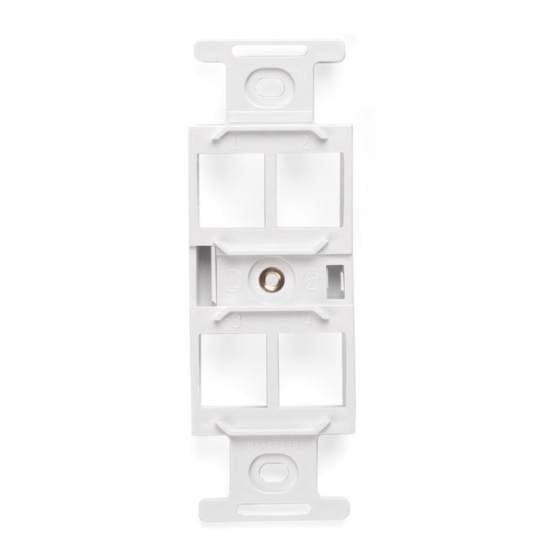

• The Quad 106 "Termination Station" (built-in termination aid)
stabilizes jacks during punchdown.

WARRANTY INFORMATION

• One-year limited product warranty and 15-year performance
guarantee are standard.
• Product and performance warranties are extended to a Lifetime
as part of Leviton's Certified Cabling System.
Part Numbers
3880-DIN
41087-xxP
Duplex 106
Quad 106
