Leviton 16A/20A Quick Start Manual

WARNINGS
• TO AVOID FIRE SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE,
TEST THAT POWER IS OFF BEFORE SERVICING OR WIRING and ensure connections are
made in the same sequence as existing device connections.
• These devices conform to IEC standard 60309-1 and 60309-2. The construction is such that
each device cannot be mated with another IEC device of different specifications (i.e., voltage,
amperage or system rating). For safety purposes, do not use a non-IEC device with these pin
and sleeve devices. The specifications for non-IEC devices are established by the individual
manufacturers, and may not meet IEC standards. IMPROPER MATING OF DEVICES MAY
CAUSE FIRE, SHOCK OR DEATH.
Cleaning Procedures
WARNING: RISK OF ELECTRIC SHOCK. TURN OFF POWER AT CIRCUIT BREAKER OR FUSE. DO NOT clean this product while undergoing electrical maintenance or service.
CAUTION: Use only chemicals and cleaning solutions that are safe for use with plastics and rubber gaskets.
CAUTION: DO NOT direct or concentrate high pressure water or cleaning solution on the enclosure gasket seams, switch handle area or exterior labels.
NOTE: Follow general cleaning procedures established by your facility.
®
NOTE: This product is certified by NSF International to NSF/ANSI/3-A 14159-1.
a. Use hose directed water or cleaning solution to remove any collected contaminants from behind the enclosure.
b. Use hose directed water or cleaning solution to remove soil and contaminants from the exterior surfaces of the enclosure.
c. Use a dry clean cloth to wipe away any excess water.

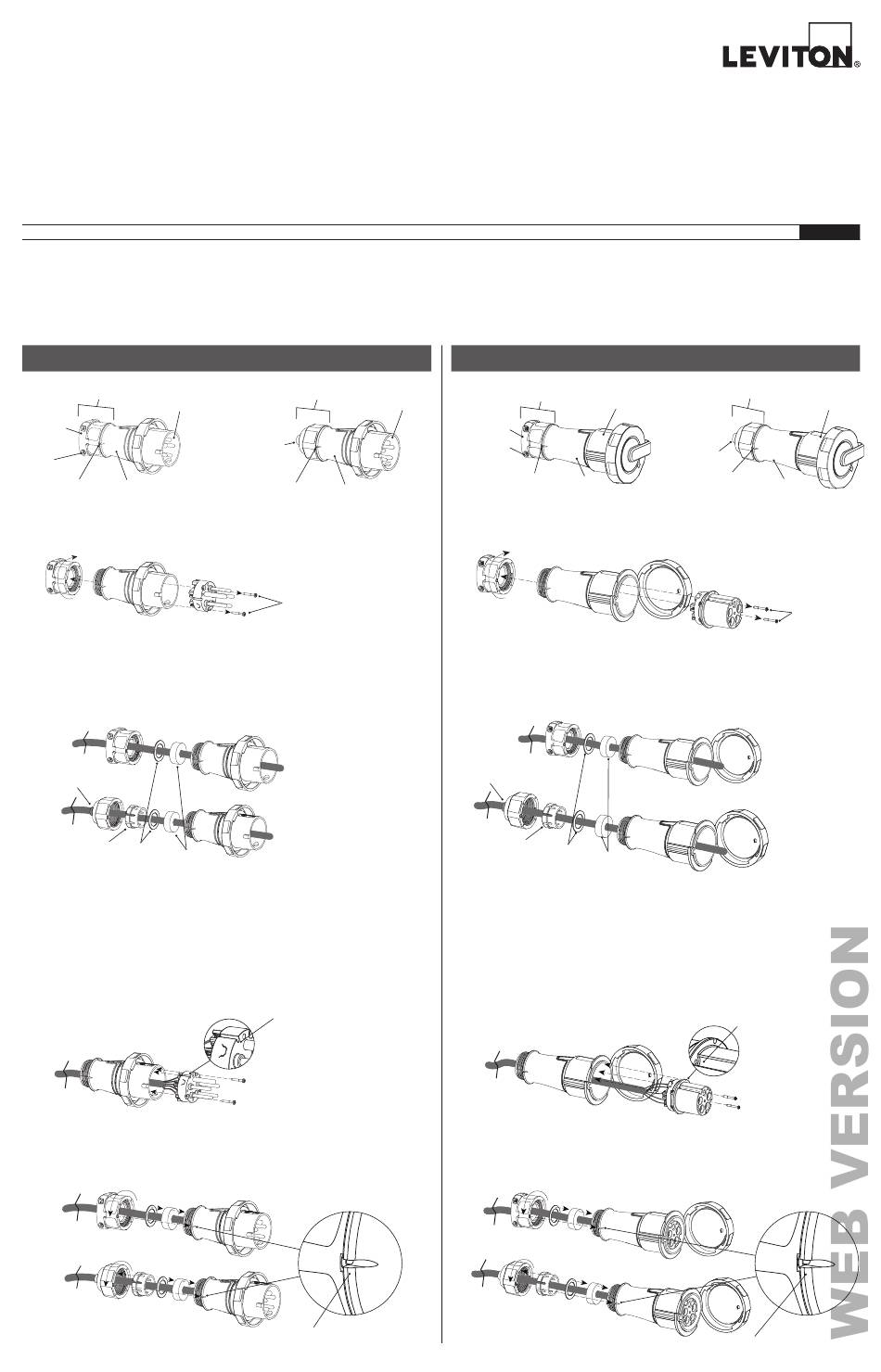

16A/20A and 30A/32A Plug Installation
saddle clamp assembly
contact carrier
saddle
clamp
saddle
clamp screw
quick lock housing
pin
1.
Unscrew assembly and contact carrier.
2.
Thread wire.
Select grommet (Table 1) thread clamp assembly, washer, grommet and housing onto selected wire (Table 3).
NOTE: If using screwless clamp assembly, select strain relief nut first (Table 2).
dust grommet
OR
strain relief
washer
grommet
nut
3.
Wire .
Cut and strip cable jacket and conductors (Table 4).
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must be made in the same sequence as
existing device connections.
Connect wires (Table 5 and Stripping and Wiring Diagram) and tighten terminal screws. NOTE: Reference
torque value (Table 6). Allen key included.
4.
Reconnect contact carrier.
Tighten assembly screws (Table 6).
5.
Reassemble
.
Slide grommet and washer down and seat firmly into housing. Slide saddle clamp assembly or screwless
clamp assembly onto housing and screw on until quick lock pin fully engages. Tighten clamp screws
(Table 6).
OR
Watertight Pin and Sleeve
Plugs and Connectors
16A/20A, 30A/32A, 60A/63A and 100A/125A
INSTALLATION INSTRUCTIONS
screwless clamp assembly
contact carrier
OR
dust shield
quick lock
housing
pin
assembly
screws
WARNING: To prevent property
damage or personal injury,
ensure use of correct grommet.
NOTE: Line up key with key notch.
NOTE: fully engaged quick lock pin
CAUTIONS
• Examine devices periodically for any foreign matter that may contaminate the contacts or the insulation material
separating the contacts. Contamination decreases the device's insulation properties. This increases the potential
for arcing and possibly decreases the product's life and may cause fire and/or shock hazard. The frequency of
inspection depends upon the degree of contamination.
• If you are unsure about any part of these instructions, consult an electrician.
• To be installed and/or used in accordance with electrical codes and regulations (Including NEC/CEC, as applicable).
• Use this device only with copper or copper clad wire.
16A/20A and 30A/32A Connector Installation
saddle clamp assembly
saddle clamp
saddle clamp
screw
quick lock
housing
pin
1.
Unscrew assembly and contact carrier.
2.
Thread wire.
Select grommet (Table 1) thread clamp assembly, washer, grommet and housing onto selected wire (Table 3).
NOTE: If using screwless clamp assembly, select strain relief nut first (Table 2).
dust grommet
strain relief
washer
nut
3.
Wire .
Cut and strip cable jacket and conductors (Table 4).
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must be made in the same sequence as
existing device connections.
Connect wires (Table 5 and Stripping and Wiring Diagram) and tighten terminal screws. NOTE: Reference
torque value (Table 6). Allen key included.
4.
Reconnect contact carrier
Tighten assembly screws (Table 6).
5.
Reassemble.
Slide grommet and washer down and seat firmly into housing. Slide saddle clamp assembly or screwless
clamp assembly onto housing and screw on until quick lock pin fully engages. Tighten clamp screws
(Table 6).
screwless clamp assembly
contact carrier
OR
dust shield
quick lock
pin
OR
grommet
.
NOTE: Line up key with key notch.
OR
NOTE: fully engaged quick lock pin
