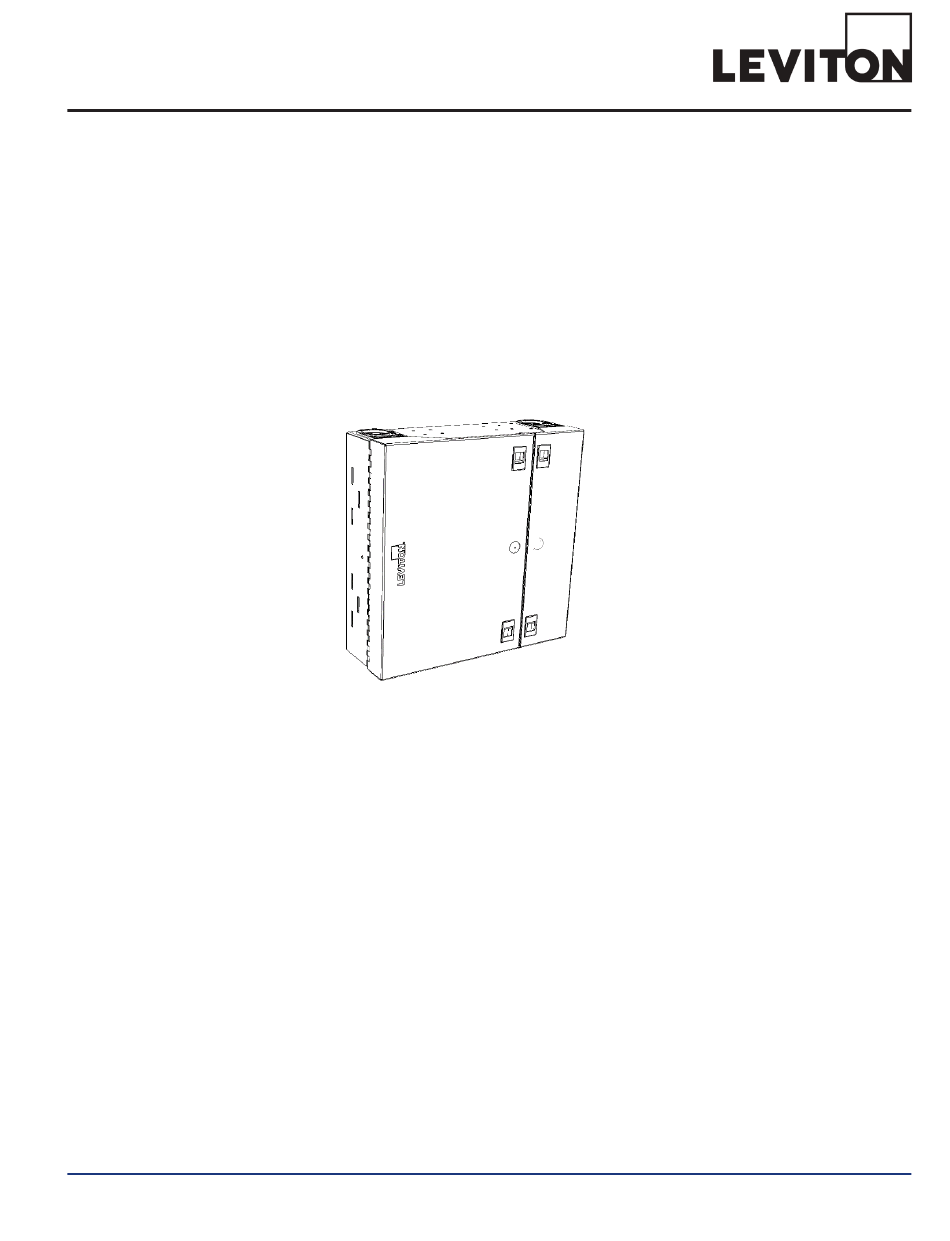

5WLRG-12C
Instructions for Use - Opt-X
SDX Wallmount Enclosures
®
5WLRG-12C
DI-000-5WLRG-00A
Page 1 of 13
Leviton Network Solutions, a division of Leviton Mfg. Co., Inc.
Tech Support: 1.800.824.3005 E-mail: appeng@leviton.com Web: www.leviton.com
Copyright © 2017 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
MTP
is a registered trademark of US Conec, Ltd.
®
