Leviton J1772 Installation Instructions

WARNINGS AND CAUTIONS:

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE and test that power is off before wiring!
• Read the instructions completely,
FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY RESULT IN DEATH, INJURY, PROPERTY DAMAGE OR INOPERABLE DEVICE.
• Leviton strongly recommends installation and service to be performed by an electrician, or an individual with thorough knowledge and experience with electrical wiring.
• DO NOT attempt to perform an installation or procedure if you are unsure how to properly perform it.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• Save these instructions for future reference.
INTRODUCTION

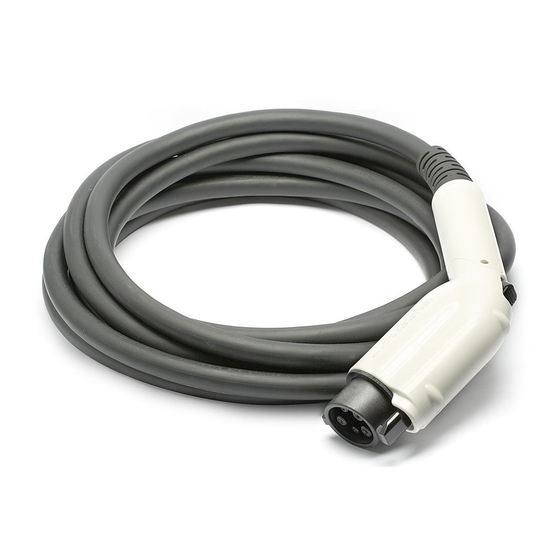

Thank you for purchasing the J1772 40A charge connector. This installation
sheet includes the latest information at the time of printing. Leviton reserves
the right to make changes to this product without further notice. Changes
or modifications to this product by other than an authorized service provider
could void the product warranty. If you have questions about the use of
this product, contact your customer service representative. Refer to the
Customer Support section located in these instructions.
INSTALLATION
Additional Equipment/Parts Required (not included):
• J1772 electric vehicle charging station (EVSE)
• Liquid-Tight Strain relief for 0.85"-1.00" cable diameter range such as
Heyco ® part number M4348.
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE and test that power is off before wiring!
1. Affix the strain relief to the EVSE enclosure.
2. Insert the charge connectors cable into the strain relief until the edge of the cables insulation reaches the inside lip of the strain relief.
NOTE: In order to fulfill the UL requirements, the fully-tightened strain relief must be able to withstand a 100-lb. pull on the cable without
allowing the cable to slip.

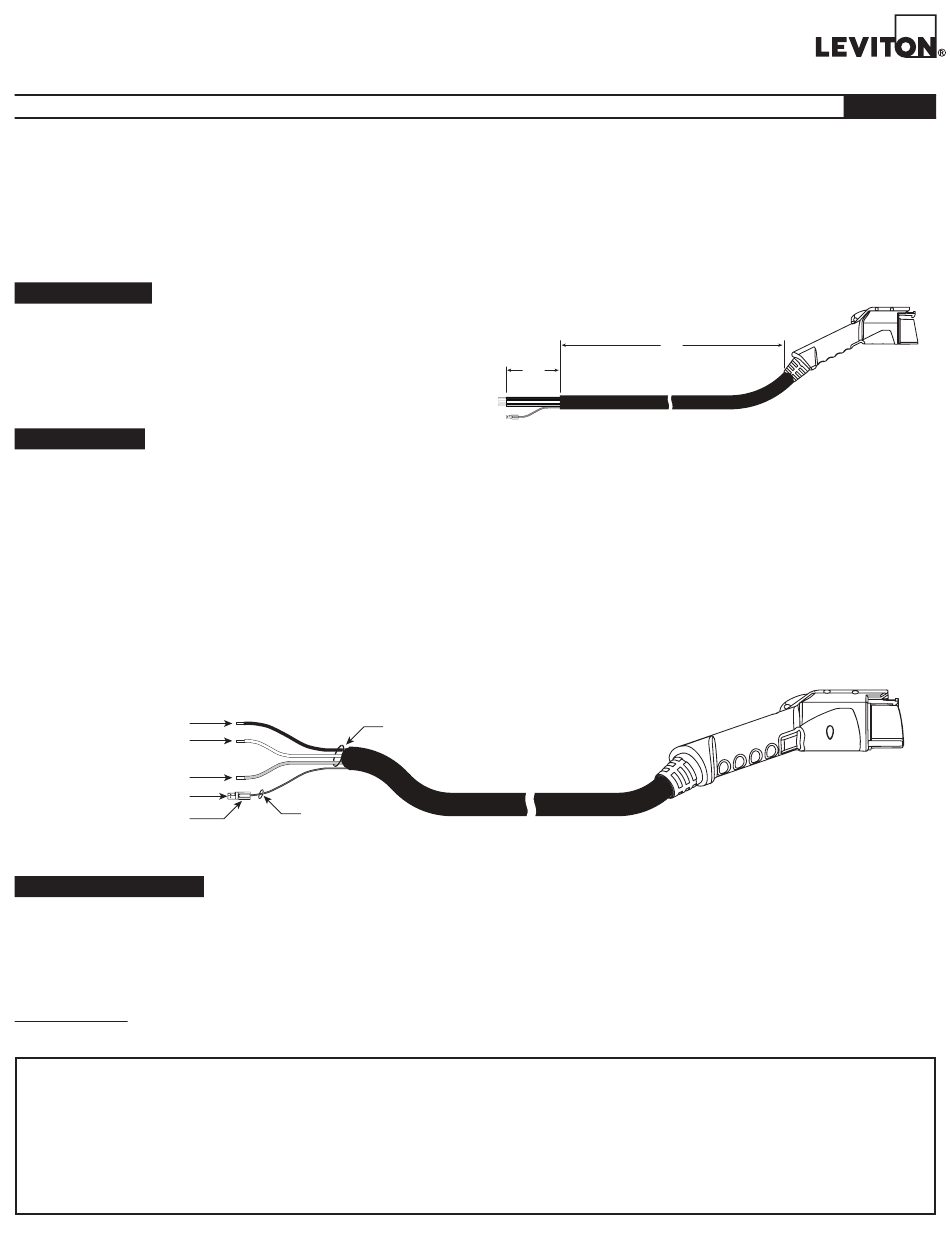

3. Wire the charge connectors cables to the EVSE using Figure 2 below:
4. If the pilot signal end on the EVSE side does not accept a Powerpole
Powerpole ® Connector from the charge connector side. Then strip the wire to a length suitable to be connected to the EVSE. Assure that once the connection
has been made to add an insulator such as a wire nut.
BLACK WIRE - HOT (LINE 1)
WHITE WIRE - HOT (LINE 2)
GREEN WIRE - GROUND
BLUE WIRE - PILOT SIGNAL
CONNECTOR
CUSTOMER SUPPORT
Call our Customer Support Hotline at 1-877-338-7473. PLEASE HAVE THE MODEL NUMBER AND SERIAL NUMBER AVAILABLE WHEN YOU CALL.
These can be found on the charge connector's casing. If your call is made after business hours or on weekends, please leave your name, telephone number,
the model number, the serial number, and a brief description of the problem. A customer service representative will call back at the earliest opportunity.
For additional products and information, please visit our website - www.leviton.com/evrgreen
Many questions and answers can be found in our knowledge base community. Just go to leviton.com and click on the Knowledgebase link, or go directly to
http://communities.leviton.com/community/knowledgebaseforums/evr-green.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free
of defects in materials and workmanship under normal and proper use for one year from the purchase date. Leviton's only obligation is to correct
such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty excludes and
there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not
in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness
for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including
merchantability and fitness for a particular purpose, is limited to one year. Leviton is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this
warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
© 2014 Leviton Mfg. Co., Inc.
J1772 40A Charge Connector
Cat. No. EVJ46-PEV
INSTALLATION INSTRUCTIONS
Tools:
• Appropriate tool to secure strain relief (channel lock pliers, torque wrench)
• Appropriate screw driver (Phillips, flat blade)
• Wire cutter and stripper
Connector, as manufactured by Anderson Power Products, then remove the
®
FIGURE 2
#8 AWG
#18 AWG

LIMITED 1 YEAR WARRANTY AND EXCLUSIONS

FIGURE 1
25'
6"
Heyco is a registered trademark of Heyco, Inc.
Powerpole is a registered trademark of Anderson Power Products, Inc.
DI-000-EVJ46-30A
ENGLISH
DI-000-EVJ46-30A
