Leviton 8200 Instruction Manual

WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
TO INSTALL:
Back or side-wire accepts up to #10AWG copper or copper clad wire.
Tighten terminal screws using the appropriate torque value, which can be found at
Leviton.com/torquevalue.
WARNING: TURN OFF POWER. TEST POWER IS OFF. Remove insulation per "strip
gage". Connect per Diagram.
CAUTION: If a Grounding conductor is NOT attached to the GREEN screw then the
mounting means is NOT grounded. To ensure mounting means being grounded, mount in
a grounded metallic wallbox.
Restore power. INSTALLATION IS COMPLETE.
NOTE: A lit LED indicates power to the receptacle.
LIMITED 10 YEAR WARRANTY
For Leviton's limited 10 year product warranty, go to www.leviton.com. For a printed copy of
the warranty, call 1-800-824-3005.
For Technical Assistance Call: 1-800-824-3005 (USA Only) or 1-800-405-5320 (Canada Only) www.leviton.com
Hospital Grade Standard and
Decora ® Duplex Lighted Receptacles
with Green LED
Cat. Nos. 8200 and 16262
- Rated: 15A-125VAC
Cat. Nos. 8300 and 16362
- Rated: 20A-125VAC
CAUTIONS:
• USE THIS DEVICE ONLY WITH COPPER OR COPPER CLAD WIRE ONLY.
• Do not split feed; do not break-off fin.

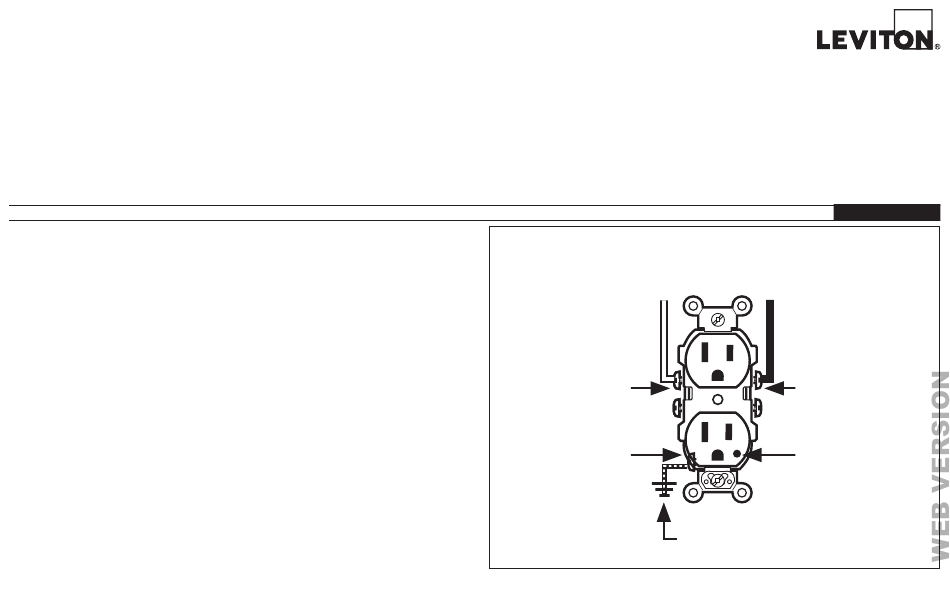

INSTALLATION
Silver screw
Vis argent
Tornillo plateado
Green screw
Vis verte
Tornillo verde
Common feed (fin intact)
Alimentation commune (ailette intacte)
Alimentación común (aleta intacta)
White Hot
Blanc
Actif
Blanco Fase
To System Ground
Vers la mise à la terre
Al sistema a tierra
PK-93078-10-02-0H
ENGLISH
Brass screw
Vis en laiton
Tornillo latón
Green LED
Témoin vert
LED Verde
