Leviton 47693-ESM Product Specifications

Product

Specifications

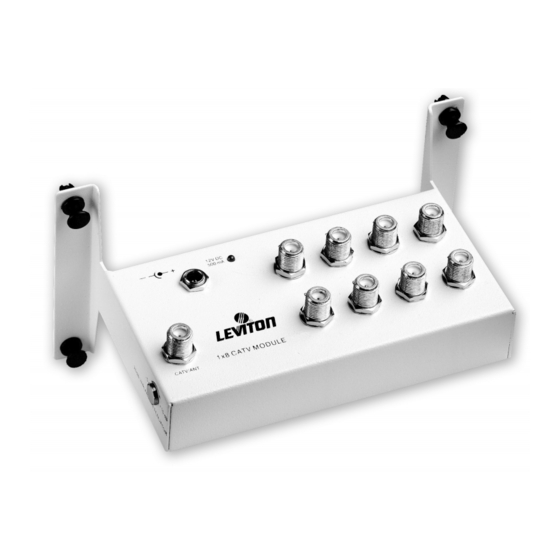

1x8 CATV MODULES
APPLICATION
Leviton's 1x8 CATV modules are designed to
distribute incoming RF signals (Cable TV,
Antenna, or other modulated sources) to eight
locations throughout the home or office on
coaxial cable. Variable attenuator enables precise
amplification for fine-tuning picture quality (-5 to
+15 dB) of incoming signal. The 1x8 CATV
modules incorporate state-of-the-art bi-directional
signaling to support advanced interactive
applications such as cable modem and cable box
communications. The module features one cable
input and eight isolated television outputs.
FEATURES AND BENEFITS
• Digital CATV compatible.
• High quality, professional-grade product.
• Distributes signals such as: CATV, antenna, VCR/DVD,
Camera/CCTV signals on coaxial cable throughout the home or
office.
• Built-in amplifier easily adjusts to compensate for variations in
incoming signal strength (-5 to +15dB).
• Provides bi-directional signal paths to support cable modem or
cable box communications.
• Installs easily into Leviton's Structured Media™ enclosures.
• Small circuit board design set at a 90º angle for easy
installation.
• Includes termination caps
PHYSICAL SPECIFICATIONS
Dimensions: 3.50" H x 6.50" W x 3.20" D
Impedance: 75 Ohm
Connector Type: F-Type (1 input, eight outputs)
47693-ESM: Nickel Plated
47693-GSM: Gold Plated
Power Input: 12VDC 1A, adapter supplied
Frequency: 52-1000 MHz
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-259
Customer Service: 1-800-323-8920 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
TYPICAL SPECIFICATIONS
The 1 GHz 1x8 CATV Module shall distribute RF signals
over coaxial cable to eight locations and contain a variable
attenuator with -5 to +15dB amplification. It shall feature
one cable input and eight isolated television outputs. The
CATV module shall support bi-directional signal paths for
cable modem or cable box communications. It shall also
come in a small circuit board design with a 90° angle, an
impedance of 75 Ohm, F-Type connectors and come with
a 12VDC 1A power supply. The manufacturer shall provide
a two-year limited product warranty.
47693-ESM
47693-GSM
