Leviton 47691-5MS Quick Install Manual

5x8 multi-switch

5x8 Multi-Switch

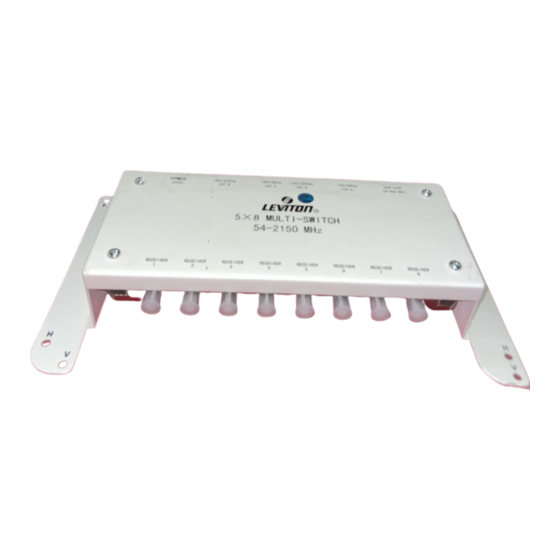

The 5x8 Multi-Switch distributes satellite signals from incoming LNB's to

up to eight satellite receivers. It is designed to work with all DIRECTV Dish

Antenna Systems and all generations of DIRECTV satellite receivers. The

module also incorporates a separate input to receive TV antenna or CATV

signals.

PACKAGE CONTENT

5x8 Multi-Switch

24 VDC Power Supply

6 Push-Lock pins

Technical Support: 800-824-3005

www.leviton-lin.com

Quick-Install Guide

47691-5MS

5x8 BETA GUIDE

Table of Contents

Do you have a question about the 47691-5MS and is the answer not in the manual?

Page 1 5x8 Multi-Switch The 5x8 Multi-Switch distributes satellite signals from incoming LNB’s to up to eight satellite receivers. It is designed to work with all DIRECTV Dish Antenna Systems and all generations of DIRECTV satellite receivers. The module also incorporates a separate input to receive TV antenna or CATV signals.
Page 2 INSTALLATION The 5x8 Multi-Switch can be installed horizontally or vertically within any Leviton Structured Media Center (SMC). For horizonal mounting, snap the supplied grommets in to the locations marked ‘H’. See Figure 1. For vertical mounting, snap the supplied grommets in to the locations marked ‘V’.
Page 3 Connect the cables from the satellite dish to the multi-switch as shown in Figure 3. Connect cables going to the satellite receivers to the “receiver 1 through 8” connectors. Figure 3 5x8 BETA GUIDE...
Page 4 For the power connection to the multiswitch: • Make a coax jumper cable of the desired length. • Connect one end of the jumper to the power connection on the multiswitch. • Connect the other end of the jumper to the included power transformer. •...
