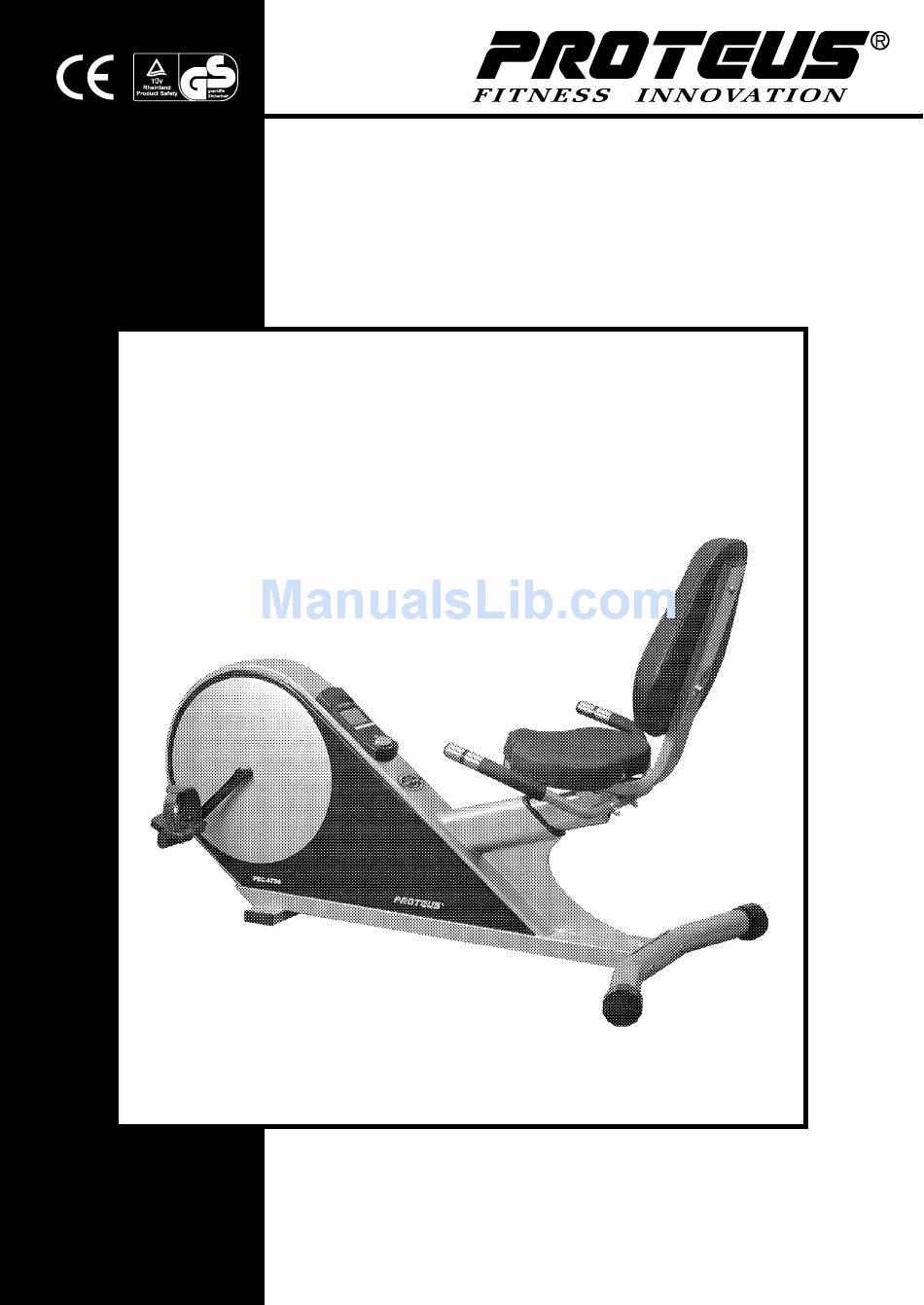

- Page 1 MAGNETIC CYCLE PEC-4750 Owner's manual...
- Page 2 Testing specification : EN 957-1+A1, EN 957-5. Features of product with GS-TUV mark : Mechanical safety. Symbol of high quality. Reliability assurance.
-
Page 3: Table Of Contents
......Information PEC-4750 ....... -
Page 4: Index
INTRODUCTION / SAFETY GUIDELINE A. Introduction Thank you very much for choosing PROTEUS products. To secure your safety, please read the manual and all suggestions carefully before using this product. While you get everything ready, believe that you could enjoy the pleasure of exercise and healthy. - Page 5 IMPORTANT : THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR EQUIPMENT IS 125 KG ( 275 LB ). ALL OF THE TEST STIPULATE TO THE EN 957-1+A1 / -5, CLASS HC. CLASS H: ( HOME ) DOMESTIC USE. CLASS C: MINIMUM ACCURACY. NOTE : THE EQUIPMENT IS SPEED-DEPENDENT ON BRAKING SYSTEM.
-
Page 6: Information Pec-4750
THE MOST SUSCEPTIBLE TO WEAR PARTS ARE Drum magnetic wheel / Belt TOOLS REQUIRED FOR ASSEMBLY We enclose with two simple assembling tools for your assembly convenience. One allen key and one spanner w/ screwdriver. C. Information PEC-4750 PEC-4750 Resistance Drum Magnetic Control Driving... -
Page 7: Correct Posture
CORRECT POSTURE . Correct posture Introduction one: Before exercising, adjust the pedal strap first, let your feet at comfortable position. Then adjust the height of saddle, back lean on back backrest pad, put your hands on the handle bar, sit on the seat pad steadily, do your best to let your body smooth and steady. -
Page 8: Assembly
ASSEMBLY Step 1 : Assemble stabilizers STEP 1 Attach rear stabilizer ( 02 ) to main frame ( 01 ), fasten with carriage bolts ( 19 ), washers ( 25 ), and dome nuts ( 23 ). Then fully tighten them with spanner. - Page 9 Output DC 6V / 500 mA. Note : Tension adjust Tension adjustment operating by the motor. Please refers to the operating instruction of monitor. Now your PEC-4750 has been fully assembled. Thank you for choosing PROTEUS product ! - 6 -...
-
Page 10: Exploded View
EXPLODED VIEW - 7 -... -
Page 11: Parts List
PARTS LIST Description Q'ty Main frame Rear stabilizer Seat tube Handlebar Slide tube Crank ( R ) Crank ( L ) Cycle monitor Pulse wire Extention pulse wire Backrest pad Seat pad 25 x 75 plug Foot cap Knob w/ clamp Pedal ( R) Pedal ( L ) 3/8"... - Page 12 PEC4750-040819GB-GS...
