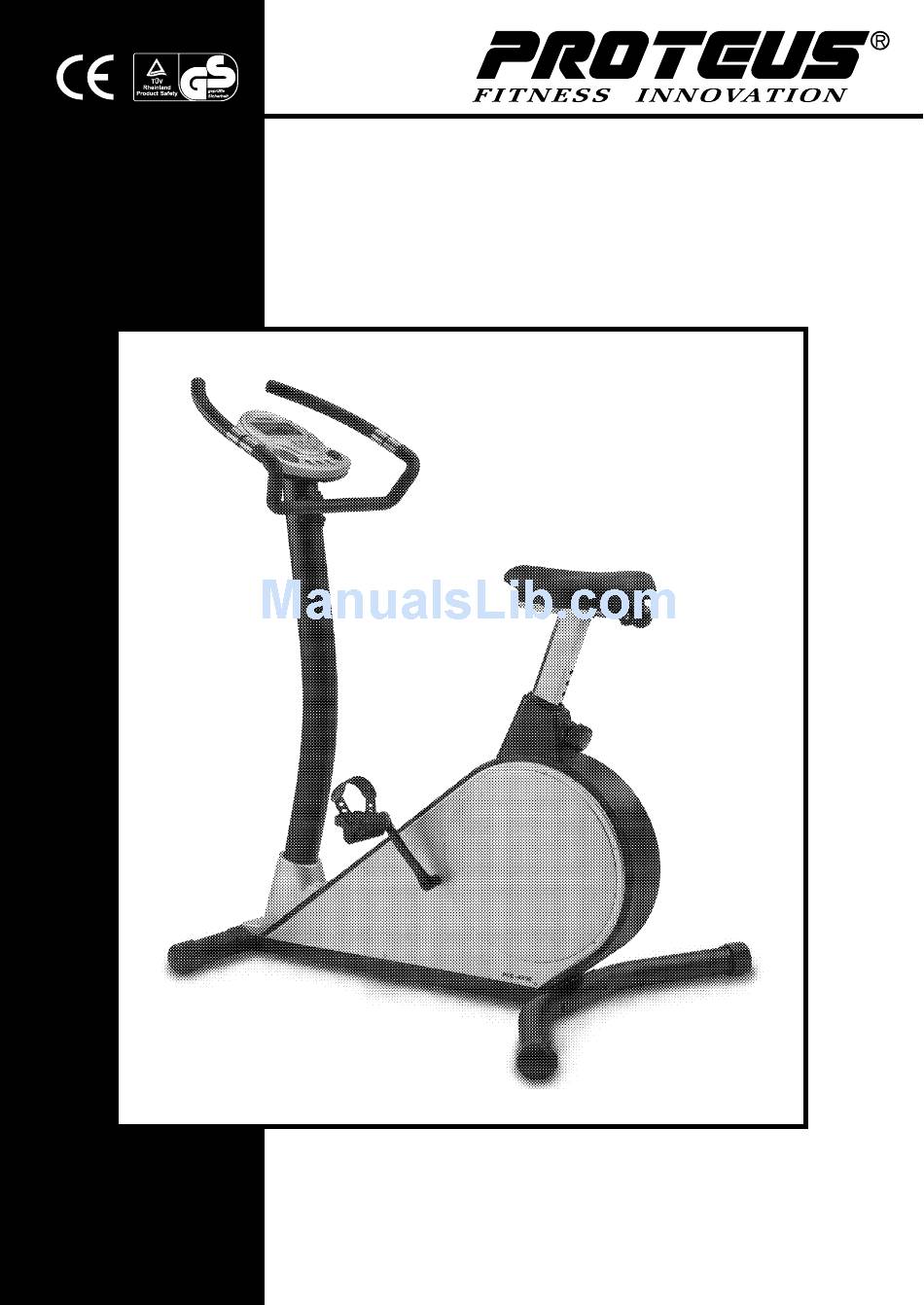

- Page 1 MAGNETIC CYCLE PEC-4850 Owner's manual...
- Page 2 Testing specification : EN 957-1+A1, EN 957-5. Features of product with GS-TUV mark : Mechanical safety. Symbol of high quality. Reliability assurance.
-
Page 3: Table Of Contents
......Information PEC-4850 ....... - Page 4 INTRODUCTION / SAFETY GUIDELINE A. Introduction Thank you very much for choosing PROTEUS products. To secure your safety, please read the manual and all suggestions carefully before using this product. While you get everything ready, believe that you could enjoy the pleasure of exercise and healthy.
- Page 5 IMPORTANT : THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR EQUIPMENT IS 125 KG ( 275 LB ). ALL OF THE TEST STIPULATE TO THE EN 957-1+A1 / -5, CLASS HC. CLASS H: ( HOME ) DOMESTIC USE. CLASS C: MINIMUM ACCURACY. NOTE :THE EQUIPMENT IS SPEED-DEPENDENT ON BRAKING SYSTEM.
-
Page 6: Information Pec-4850
THE MOST SUSCEPTIBLE TO WEAR PARTS ARE Drum magnetic wheel / Belt TOOLS REQUIRED FOR ASSEMBLY We enclose with two simple assembling tools for your assembly convenience. One allen key and one spanner w/ screwdriver. C. Information PEC-4850 PEC-4850 Resistance Drum Magnetic Control Driving... -
Page 7: Correct Posture
CORRECT POSTURE D. Correct posture Introduction one: efore exercising, adjust the pedal strap first, let your feet at comfortable position. Then adjust the height of saddle, put your hands on the handlebar, sit on the saddle steadily, do your best to let your body smooth and steady . - Page 8 SERVICE INFORMATION FIG. - 1 Introduction four: While exercising, the active direction should be head forward, it is no tension in the contrary direction. Besides, no matter you wear the shoes or not, you should put your foot on the pedal and use the belt to tie up before your exercise .
-
Page 9: Assembly
ASSEMBLY Step 1 : Assemble stabilizers STEP 1 Attach both front and rear Stabilizers ( 02, 03 ) to 2 11 main frame ( 01 ), with carriage bolts ( 11 ), washers ( 12 ) and dome nut ( 13 ). Then fully tighten them with spanner. - Page 10 Step 4 : Assemble handlebar post STEP 4-a a. Slide handlebar post ( 05 ) into front protective casing ( 19 ). b. Connect extension monitor cable ( 17 ) to lower monitor cable ( 18 ). STEP 4-b, 4-c c.
- Page 11 - 2 x 4pcs or be DC transformer. DC transformer spec. : Output DC 6V/500mA. Tension adjustment operating by the motor. Please refers to the operatinginstruction of monitor. Now your PEC-4850 has been fully assambled. Thank you for choosing proteus product ! - 8 -...
-
Page 12: Exploded View
EXPLODED VIEW - 9 -... -
Page 13: Parts List
PARTS LIST English Q'ty Main frame Front stabilizer Rear stabilizer Seat post Handlebar post Handlebar assembly Handlebar Grip pulse Foam grip-a Foam grip-b Handlebar end cap Pulse wire Cycle monitor M5 screw x 10mm Tension control M5 screw x 40 mm Pedal ( R ) Pedal ( L ) Crank ( R )
