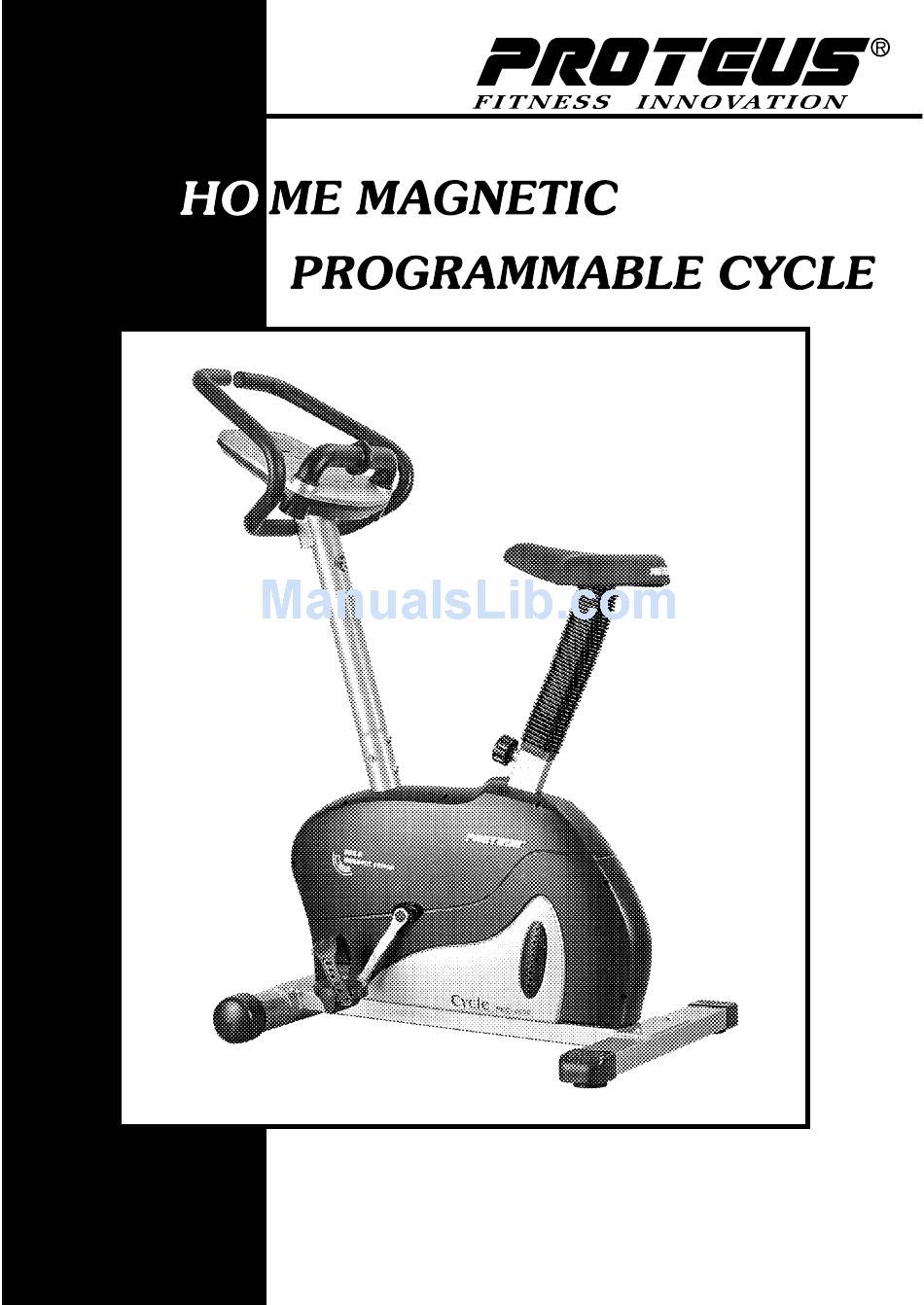

- Page 1 4650 Owner's manual...
- Page 2 PEC-4650 MAGNETIC PROGRAMMABLE CYCLE ASSEMBLY INSTRUCTION THIS OWNER'S MANUAL CONTAINS ASSEMBLY , OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. IMPORTANT SAFETY PRECAUTIONS 1. READ THE OWNER'S MANUAL AND ALL ACCOMPANYING LITERATURE AND FOLLOW IT CAREFULLY BEFORE USING YOUR MACHINE.
- Page 3 THE APPLIANCES ARE NOT FOR CHILDREN UNDER 14 YEARS OF AGES. THE PEDAL CRANK TRAINING EQUIPMENT OF CLASS B AND C IS NOT SUITABLE FOR THERAPEUTIC PURPOSES. BEFORE YOU BEGIN IMPORTANT : READ ALL INSTRUCTIONS CAREFULLY. ASSEMBLE THE UNIT IN ACCORDANCE WITH THE STEPS IN THE MANUAL.
-
Page 4: Exploded View
EXPLODED VIEW PEC4650-020118GB-GS - 3 -... - Page 5 PARTS LIST KEY. Q'TY DESCRIPTION MAIN FRAME FRONT STABILIZER REAR STABILIZER SEAT POST HANDLEBAR POST HANDLEBAR CRANK (R) CRANK (L) CYCLEMONITOR MONITOR CABLE (A) MONITOR CABLE (B) CHAIN COVER (R-1) CHAIN COVER (L-1) CHAIN COVER (R-2) CHAIN COVER (L-2) 30 * 60 SLEEVE HANDLEBAR END CAP FOAM GRIP PEDAL (R)
- Page 6 OPERATING INFORMATION OF EXERCISE METER SUMMARY : THIS SYSTEM IS DESIGNED FOR PROGRAMMABLE MAGNETIC BIKE. THERE ARE 3 PARTS TO THIS SYSTEM, THE MONITOR, MOTOR & CONTROLLER AND MAGNETIC BRAKING SYSTEM. GETTING STARTED : 1. MONITOR CONNECTIONS : PLUG THE 10-PIN CONNECTOR ( PROTRUDING FROM THE TUBE ) INTO THE RECEPTOR ON THE BACK OF THE MONITOR SECURE THE MONITOR TO THE MOUNTING PLATE.
- Page 7 SELECT : USE SELECT BUTTON WHILE EXERCISING TO SELECT A FUNCTION TO BE DISPLAYED ( TIME, SPEED, DISTANCE, CALORIES OR HEART RATE ) WHILE IN SCAN MODE, PRESSING SELECT TAKES THE MONITOR OUT OF THIS MODE AND ADVANCE TO THE NEXT FUNCTION ENTER : USE THIS KEY TO CONFIRM SELECTION DISPLAYS AND FEATURES :...
- Page 8 YOUR MAXIMUM HEART RATE = 220 YOUR AGE TARGET HEART RATE = 80% * YOUR MAXIMUM HEART RATE MANUAL PEAK HIKING VIGOROUS ENDURANCE COURSE FAT LOSS INTENSE CORRECT POSTURE FOR PEC-4650 MANUFACTURER SERVICE TRELOCK GMBH INDUSTRIESTRASSE 3, D-48301 NOTTULN GERMANY Tel: 2509/98-0 - 7 -...
