t.amp TSA4-700 Owner's Manual

Hide thumbs Also See for TSA4-700:
Table of Contents

Advertisement

Quick Links

See also: User Manual
OWNER'S MANUAL
-dB
0
-dB
0
-dB
0
-dB
0
Fault
Clip
-5
-10
-15
-20
Signal
CH-A
CH-B
Power
-dB
0
-dB
0
Fault
Clip
-5
-10
-15
-20
Signal
CH-A
CH-B
Power
-dB
0
-dB
0
TSA4-700
TSA1400
POWER
TSA2200
POWER
TSA4-700
TSA1400
TSA2200

Advertisement

Table of Contents
loading

Related Manuals for t.amp TSA4-700

Summary of Contents for t.amp TSA4-700

  • Page 1 OWNER'S MANUAL TSA4-700 TSA1400 Fault Clip Signal CH-A CH-B Power POWER TSA2200 Fault Clip Signal CH-A CH-B Power POWER TSA4-700 TSA1400 TSA2200...

  • Page 2: Installation

    PRECAUTIONS WARNING INSTALLATION Connect this unit's power cord only to an AC outlet of the type stated in this ow -ner's Manual or as marked on the unit. Failure to do so is a fire and electrical shock hazard. Do not allow water to enter this unit or allow the unit to become wet. Fire or elec -trical shock may result.
  • Page 3 CAUTION Installation Keep this unit away from the following locations: - Locations exposed to oil splashes or steam, such as near cooking stoves, hum- idifiers, etc. - Unstable surfaces, such as a wobbly table or slope. - Locations subject to excessive heat, such as inside a car with all the windows Closed, or places that receive direct sunlight.

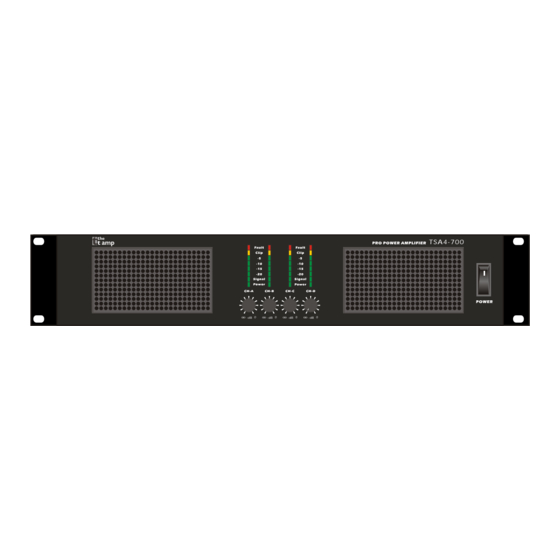

  • Page 4: Front Panel

    Front Panel TSA4-700 Power switch Press to toggle the power on or off. POWER Fault LED Lights up red to indicate that protection is in effect. Specifically, lights up if the heat sink Fault overheats, or if a DC voltage is detected at the amplifier outputs. Also lights up for about Three seconds at time of power-on, as the amp gets ready to operate.

  • Page 5: Rear Panel

    Rear panel WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE EQUIPMENT TO RAIN OR MOISTURE! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE EQUIPMENT TO RAIN OR MOISTURE! Mains Socket Please, make sure to check whether the voltage selector shows the correct mains voltage that matches the local mains supply at the installation site.
  • Page 6 Rear panel LF- connection cords Choosing high-quality balanced cables( two conductors for the audio signal plus sepearate shielding mesh) with XLR-type connectors is recommended for LF-signal connection. Although connecting unbalanced cables to the power amplifier inputs is possible as well, using balanced cables is always preferable.
  • Page 7 Dimensions Unit: mm...
  • Page 8 6.5A/1180W 14.97A/2800W (2x)2 Ohms 5.0A/850W 9.8A/1800W 21A/4200W 8 Ohms bridged 4.1A/680W 6.8A/1200W 15.2A/2850W 4 Ohms bridged 4.5A/820W 10.1A/1900W 23A/4600W (4x)8 Ohms TSA4-700 3.1A/400W 5.8A/860W 9.5A/1400W (4x)4 Ohms 4.4A/650W 9.8A/1500W 15.4A/2450W (4x)2 Ohms 6.4A/950W 11.6A/1800W 20A/3100W (2x)8 Ohms bridged 4.3A/620W 15A/2450W...

  • Page 9: Specifications

    Specifications TSA1400 TSA2200 TSA4-700 Model 8ohm 4ohm 2ohm 8ohm 4ohm 2ohm 8ohm 4ohm 2ohm Load Impedance Rated output power 2X450W 2X670W 2X800W 2X590W 2X910W 2X1200W 4X490W 4X810W 4X930W (THD=1%,1kHz) Maximum bridged output power 1380W 1600W 1800W 2400W 2X1600W 2X1800W (THD=1%,1kHz) Maximum RMS voltage swing 68.7V...
  • Page 12 Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. Have the product disposed of by a professional disposal company of by your communal disposal facility.
