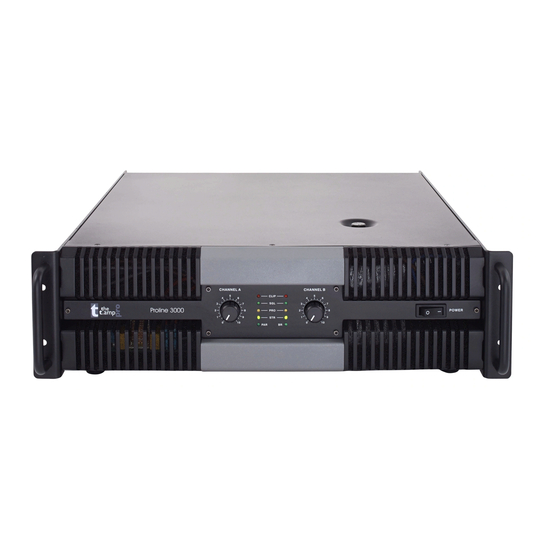

Proline 3000
Power Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for t.amp Proline 3000

  • Page 1 Proline 3000 Power Amplifier...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 14.03.2023, ID: 168990 (V3)
  • Page 3: Table Of Contents

    1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Installation and starting up........................ 12 Connections and controls........................16 Technical specifications........................20 Plug and connection assignment....................23 Cleaning............................... 26 Protecting the environment......................27 Proline 3000 Power Amplifier...
  • Page 4 Proline 3000 Power Amplifier...
  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Proline 3000 Power Amplifier...
  • Page 6: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Proline 3000 Power Amplifier...
  • Page 7: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Proline 3000 Power Amplifier...
  • Page 8 General information Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Proline 3000 Power Amplifier...
  • Page 9: Safety Instructions

    Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. Proline 3000 Power Amplifier...
  • Page 10 Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Proline 3000 Power Amplifier...
  • Page 11 When installing the power amplifier into a rack, you should place it in the lowest position, and further equipment such as pre-amplifiers in the highest position. Proline 3000 Power Amplifier...
  • Page 12: Installation And Starting Up

    Never touch the bare ends of loudspeaker cables when the amplifier is on. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. Proline 3000 Power Amplifier...
  • Page 13 When installing the power amplifier into a rack, you should place it in the lowest position, and further equipment such as pre-amplifiers in the highest position. Rack mounting The unit has been designed for rack mounting in a standard 19-inch rack; it occupies three rack units. Proline 3000 Power Amplifier...
  • Page 14 On each output of the amplifier, the overall impedance resulting from the individual impe‐ dances of the connected speakers must not fall below the minimum allowable impedance of the amp's output. If you want to connect multiple speakers to one amplifier output, note the following: Proline 3000 Power Amplifier...
  • Page 15 This means, for example with two speakers with the same impedance: In series connection, impedance is doubled. In parallel connection, it's halved. Detailed information on this topic can be found in our online guide ‘Speakers’ (www.thomann.de). Proline 3000 Power Amplifier...
  • Page 16: Connections And Controls

    Connections and controls Connections and controls Front panel 1 [POWER] | Mains switch. Turns the device on and off. 2 [CHANNEL A ] / [CHANNEL B] | Volume control for the respective channel 3 LED panel Proline 3000 Power Amplifier...
  • Page 17 One or more protection circuits have been triggered, or the device is faulty. [STR] | Lights when the device is operated in stereo mode. [PAR] | Lights when the device is operated in parallel mode. [BRI] | Lights when the device is operated in bridged mode. Proline 3000 Power Amplifier...
  • Page 18 6 XLR mounting socket for the input signal in channel B 7 1/4" phone socket for the input signal in channel B 8 Selector switch for operating mode [PAR]: Parallel mode [STR]: Stereo mode [BR]: Bridged mode Proline 3000 Power Amplifier...
  • Page 19 13 [RESET] | Resettable fuse. The fuse switches off when the power consumption of the power amplifier is too high. Once the problem is resolved, the fuse is automatically reset and the device is ready for use again. The switch can be used to force a reset. 14 Power cable. 15 Fan Proline 3000 Power Amplifier...
  • Page 20: Technical Specifications

    Lockable chassis connector (Speaker Twist) CH B OUT Lockable chassis connector (Speaker Twist) Output power Stereo, 8 Ω: 2 × 1100 W Stereo, 4 Ω: 2 × 1500 W Stereo, 2 Ω: 2 × 1800 W Proline 3000 Power Amplifier...
  • Page 21 Crosstalk at rated power @ 8 Ω, 1 kHz > 70 dB Power consumption (at 50 % of rated output 1550 W power @ 8 Ω) Inrush current 15 A, 240 µs Supply voltage AC 230 V 50 Hz Proline 3000 Power Amplifier...
  • Page 22 Dimensions (W × H × D) 482 mm × 132 mm × 460.5 mm Weight 37 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing Further information Channels 2 Ohm stability DSP / crossover Convection cooling Proline 3000 Power Amplifier...
  • Page 23: Plug And Connection Assignment

    ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. Proline 3000 Power Amplifier...
  • Page 24 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Proline 3000 Power Amplifier...
  • Page 25 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) ö Proline 3000 Power Amplifier...
  • Page 26: Cleaning

    The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Proline 3000 Power Amplifier...
  • Page 27: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Proline 3000 Power Amplifier...
  • Page 28 Notes Proline 3000 Power Amplifier...
  • Page 29 Notes Proline 3000 Power Amplifier...
  • Page 30 Notes Proline 3000 Power Amplifier...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
