TSA 4-700, TSA 1400, TSA 2200,
TSA 4000, TSA 4-300, TSA 4-1300
power amplifier
user manual

Advertisement

Table of Contents
loading

Related Manuals for t.amp TSA 4-700

Summary of Contents for t.amp TSA 4-700

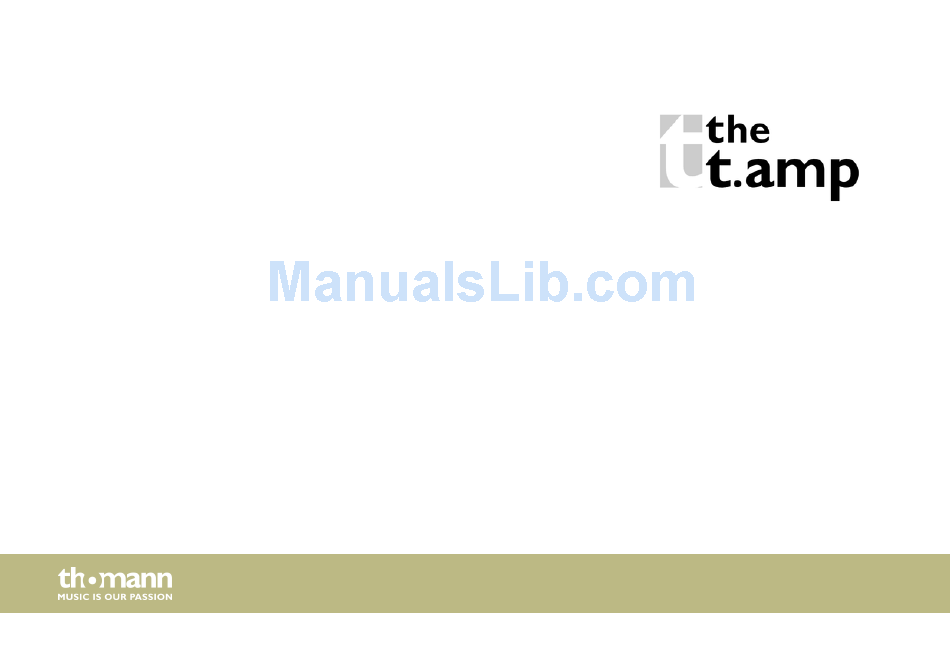

  • Page 1 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300 power amplifier user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.12.2015, ID: 218912, 218913, 218915, 287602, 325986, ... (V4)

  • Page 3: Table Of Contents

    Features............................... 13 Installation and starting up........................ 14 Connections and controls........................15 Current consumption..........................37 Technical specifications........................41 Plug and connection assignment....................53 Cleaning............................... 56 Protecting the environment......................57 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...

  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the Service customer service will gladly assist you. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Cross-references References to other locations in this manual are identified by an arrow and the specified page number.
  • Page 7 Warning signs Type of danger Warning – high-voltage. Warning – danger zone. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device amplifies electric audio frequency signals to operate passive speakers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 12 Safety instructions NOTICE! Magnetic fields The device generates strong magnetic fields that can interfere with the function of poorly shielded devices. The strongest magnetic fields are directly above and below the power amplifier. Therefore, never place sensitive devices such as pre- amplifiers, radio transmission systems, or tape decks directly above or below the power amplifier.

  • Page 13: Features

    Find device-specific features here Ä Chapter 5 ‘Connections and controls’ on page 15, Ä Chapter 6 ‘Current consumption’ on page 37 and Ä Chapter 7 ‘Technical specifications’ on page 41. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...

  • Page 14: Installation And Starting Up

    Installation and starting up Installation and starting up NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.

  • Page 15: Connections And Controls

    Connections and controls Connections and controls Front panel TSA 4-700 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 16 Connections and controls 1 [POWER] Main switch to turn the device on/off. 2 LED [CH-A] … [CH-D] These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal] / [–20] / [–15] / –10 / [–5]), channel overdrive ([Clip]) and a fault condition ([Fault]).
  • Page 17 Connections and controls Rear panel TSA 4-700 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 18 Connections and controls 4 IEC chassis plug for the power supply. 5 [OUTPUT CH-A] … [OUTPUT CH-D] Signal outputs, designed as lockable NL4 panel sockets for connecting speakers. 6, 9, 10, 11 [INPUT CH-A] … [INPUT CH-D] Signal input channels, designed as XLR socket pairs (input/output) for looping the signals through to other devices. 7 [Stereo | Bridge] selector switch Switch for operating modes ‘Stereo’...
  • Page 19 Connections and controls Front panel TSA 1400, 2200 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 20 Connections and controls 1 [POWER] Main switch to turn the device on/off. 2 LED [CH-A], [CH-B] These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal] / [–20] / [–15] / [–10] / [–5]), channel overdrive ([Clip]) and a fault condition ([Fault]). 3 [CH-A], [CH-B] Input gain controls for channels A and B.
  • Page 21 Connections and controls Rear panel TSA 14002200 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 22 Connections and controls 4 IEC chassis plug for the power supply. 5 [OUTPUT CH-A], [OUTPUT CH-B] Signal outputs, designed as lockable NL4 panel sockets for connecting speakers. 6, 9 [INPUT CH-A], [INPUT CH-B] Signal input channels, designed as XLR socket pairs (input/output) for looping the signals through to other devices. 7 [Stereo | Bridge] selector switch Switch for operating modes ‘Stereo’...
  • Page 23 Connections and controls Front panel TSA 4000 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 24 Connections and controls 1 [POWER] Main switch to turn the device on/off. 2 LED [CH-A], [CH-B] These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal] / [–20] / [–15] / [–10] / [–5]), channel overdrive ([Clip]) and a fault condition ([Fault]). 3 [CH-A], [CH-B] Input gain controls for channels A and B.
  • Page 25 Connections and controls Rear panel TSA 4000 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 26 Connections and controls 4 IEC chassis plug for the power supply. 5 [OUTPUT A], [OUTPUT B] Signal outputs, designed as lockable NL4 panel sockets for connecting speakers. 6, 8 [INPUT A], [INPUT B] Signal input channels, designed as XLR socket pairs (input/output) for looping the signals through to other devices. 7 [Stereo | Parallel | Bridge] Switch for operating modes ‘Stereo’...
  • Page 27 Connections and controls Front panel TSA 4-300, TSA 4-1300 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 28 Connections and controls 1 [POWER] Main switch to turn the device on/off. 2 LED [CH-A] … [CH-D] These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal] / –20 / –15 / –10 / –5), channel overdrive ([Clip]) and a fault condition ([Fault]).
  • Page 29 Connections and controls Rear panel TSA 4-300 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 30 Connections and controls 4 IEC chassis plug for the power supply. 5 [RESET] Push-button to reset the built-in automatic fuse in case it has tripped. 6 [OUTPUT CH-A] … [OUTPUT CH-D] Signal outputs, designed as lockable NL4 panel sockets for connecting speakers. 7 [INPUT A] …...
  • Page 31 A, the volume is controlled by the control for channel A (3). Wiring of the NL4 output sockets: Plus terminal = 1+, minus terminal = 2+. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 32 Connections and controls 12 The input sensitivity at which the amplifier is delivering its full rated power, can be set with this push-button between 0.775 V (pressed) and 1,4 V (not pressed). 13 Push-button for switching the operating mode of the power amps for the output channels C and D. Push-button not pressed: Input signals C and D (connection depends on the position of switch [M3] (10)) are being amplified in ‘stereo’...
  • Page 33 Connections and controls Rear panel TSA 4-1300 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 34 Connections and controls 4 Power supply input powerCON (NAC3FA). 5 [RESET] Push-button to reset the built-in automatic fuse in case it has tripped. 6 [OUTPUT CH-A] … [OUTPUT CH-D] Signal outputs, designed as lockable NL4 panel sockets for connecting speakers. 7 [INPUT A] …...
  • Page 35 A, the volume is controlled by the control for channel A (3). Wiring of the NL4 output sockets: Plus terminal = 1+, minus terminal = 2+. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 36 Connections and controls 12 The input sensitivity at which the amplifier is delivering its full rated power, can be set with this push-button between 0.775 V (pressed) and 1,4 V (not pressed). 13 Push-button for switching the operating mode of the power amps for the output channels C and D. Push-button not pressed: Input signals C and D (connection depends on the position of switch [M3] (10)) are being amplified in ‘stereo’...

  • Page 37: Current Consumption

    (2 ×) 8 Ω, bridged 620 W / 4,1 A 2450 W / 14,4 A (2 ×) 4 Ω, bridged 870 W / 5,8 A 3300 W / 18,7 A TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 38 Current consumption TSA 1400 Load 1/8 nominal power 1/3 nominal power (2 ×) 8 Ω 330 W / 1,8 A 734 W / 4,2 A (2 ×) 4 Ω 480 W / 2,7 A 1200 W / 6,6 A (2 ×) 2 Ω 700 W / 3,9 A 1313 W / 6,9 A 8 Ω, bridged...
  • Page 39 1640 W / 10,5 A (2 ×) 2 Ω – – 8 Ω, bridged 677 W / 4,8 A 1520 W / 9,8 A 4 Ω, bridged – – TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 40 Current consumption TSA4-300 Load 1/8 nominal power 1/3 nominal power (4 ×) 8 Ω 420 W / 3,0 A 1050 W / 7,2 A (4 ×) 4 Ω 700 W / 5,0 A 1810 W / 12,0 A 2 ×8 Ω, bridged 706 W / 5,4 A 1847 W / 12,5 A TSA4-1300...

  • Page 41: Technical Specifications

    < 0.1 % Crosstalk (ref. 1 kHz, 10 % rated power) > 70 dB Frequency response (ref. 1 kHz) 20 Hz … 20 kHz (0 – 2 dB) TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 42 Technical specifications Input impedance (20 Hz - 20 kHz, balanced) 20 kW (balanced) 10 kW (unbalanced) Input sensitivity (rated power output, 1 kHz) Damping factor (100 Hz / 1 kHz, 8 W) > 400 Voltage amplification 38,4 dB Signal-to-noise ratio 105 dB (A-weighted) Protective circuits Temperature, short circuit, limiter...
  • Page 43 < 0.1 % Crosstalk (ref. 1 kHz, 10 % rated power) > 70 dB Frequency response (ref. 1 kHz) 20 Hz … 20 kHz (0 – 2 dB) TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 44 Technical specifications Input impedance (20 Hz - 20 kHz, balanced) 20 kW (balanced) 10 kW (unbalanced) Input sensitivity (rated power output 1 kHz) Damping factor (100 Hz / 1 kHz, 8 W) > 400 Voltage amplification 38,3 dB Signal-to-noise ratio 105 dB (A-weighted) Protective circuits Temperature, short circuit, limiter...
  • Page 45 < 0.1 % Crosstalk (ref. 1 kHz, 10 % rated power) > 70 dB Frequency response (ref. 1 kHz) 20 Hz … 20 kHz (0 – 2 dB) TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 46 Technical specifications Input impedance (20 Hz - 20 kHz, balanced) 20 kW (balanced) 10 kW (unbalanced) Input sensitivity (rated power output 1 kHz) Damping factor (100 Hz / 1 kHz, 8 W) > 400 Voltage amplification 39,8 dB Signal-to-noise ratio 105 dB (A-weighted) Protective circuits Temperature, short circuit, limiter...
  • Page 47 20 kΩ (balanced) 10 kΩ (unbalanced) Input sensitivity (rated power output 1 kHz) 0.775 V / 1.4 V, (switchable) Damping factor (10 Hz / 400 Hz, 8 W) > 200 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 48 Technical specifications Voltage amplification 35.3 dB Signal-to-noise ratio > 100 dB (A-weighted) Protection circuits against short circuit, missing load, cracking when turning on and off, radio interference Cooling Internal heat dissipation with forced ventilation through con‐ trolled fan, overheating protection Ventilation front to rear Operating supply voltage...
  • Page 49 20 kΩ (balanced) 10 kΩ (unbalanced) Input sensitivity (rated power output 1 kHz) 0.775 V / 1.4 V, (switchable) Damping factor (10 Hz / 400 Hz, 8 W) > 200 TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 50 Technical specifications Voltage amplification 37.8 dB Signal-to-noise ratio > 100 dB (A-weighted) Protection circuits against short circuit, missing load, cracking when turning on and off, radio interference Cooling Internal heat dissipation with forced ventilation through con‐ trolled fan, overheating protection Ventilation front to rear Operating supply voltage...
  • Page 51 DIM 30 (3.15 kHz, 15 kHz) Crosstalk (at 1 kHz, 10 % nominal power) < –80 dB Frequency response (at 1 kHz) 20 Hz … 20 kHz (0 – 2 dB) TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 52 Technical specifications Input impedance (20 Hz – 20 kHz, balanced) 20 kW (balanced) 10 kW (unbalanced) Input sensitivity (nominal power output, 1 kHz) Damping factor (100 Hz / 1 kHz, 8 W) > 450 Voltage amplification 37 dB Signal-to-noise ratio (SNR) 106 dB (A-weighted) Protective circuits Thermal, short circuit, limiter...

  • Page 53: Plug And Connection Assignment

    In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 54 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
  • Page 55 1, + Signal 1 (in phase) 1, – Signal 1 (180 degree phase shift) 2, + Signal 2 (in phase) 2, – Signal 2 (180 degree phase shift) TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...

  • Page 56: Cleaning

    Cleaning Cleaning Fan grids The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. power amplifier...

  • Page 57: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. TSA 4-700, TSA 1400, TSA 2200, TSA 4000, TSA 4-300, TSA 4-1300...
  • Page 58 Notes power amplifier...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
