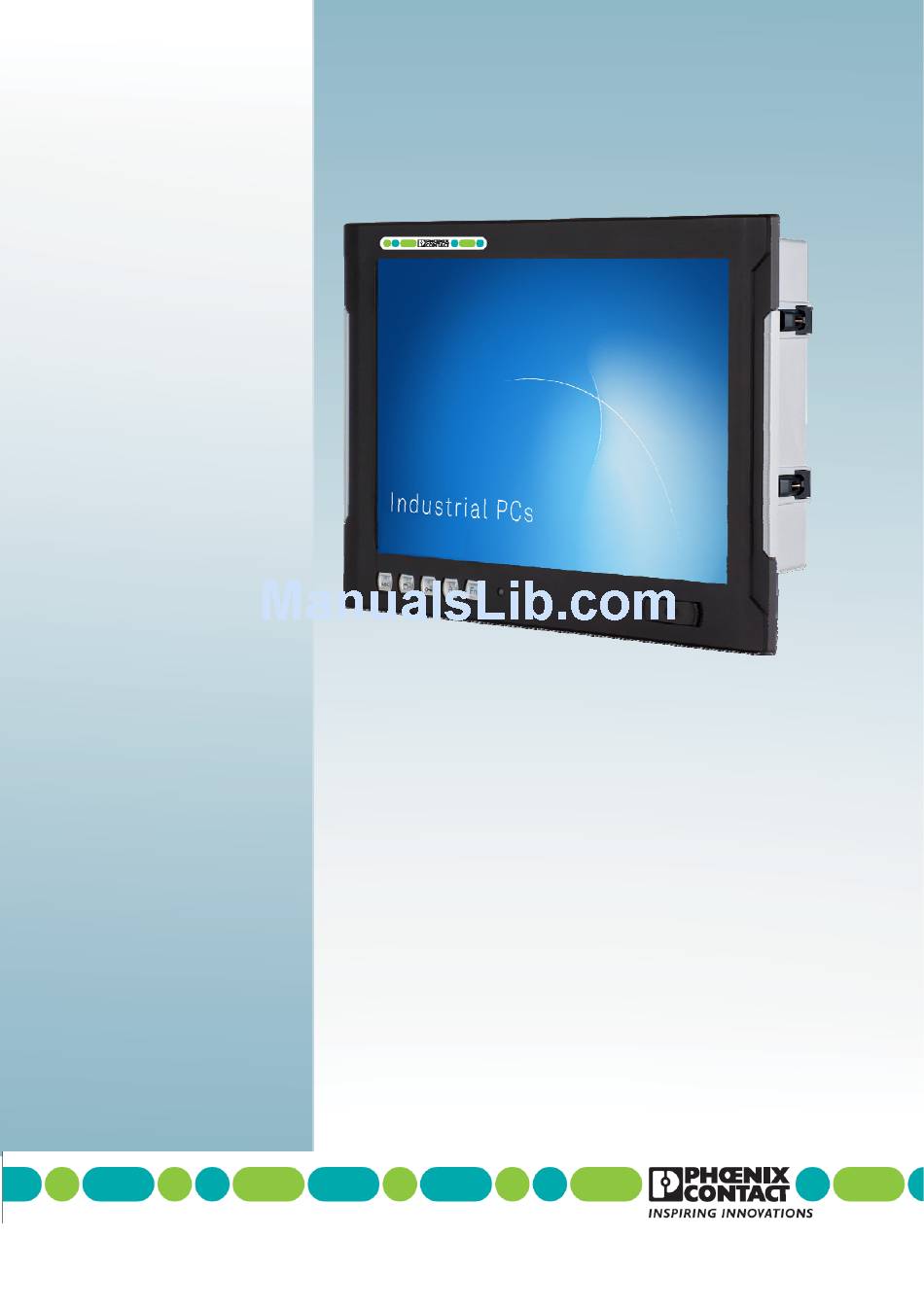

- Page 1 User Manual UM EN OPC 7015 / OPC 7022 Panel-PC with Touchscreen and Software-Keyboard, 15“,22”-Display with the frontsided protection IP65...
-
Page 2: Um En Opc 7015/Opc
UM EN OPC 7015/OPC 7022 8155_en_00 PHOENIX CONTACT... - Page 3 UM EN OPC 7015/OPC 7022 AUTOMATION User Manual Panel-PC with Touchscreen and Software-Keyboard, 15“,22”- Display with the frontsided protection IP65. 02/2011 Description: UM EN OPC 7015/OPC 7022 Revision: This Manual is valid for the Panel PCs OPC 7015/OPC 7022 PxC Description...
- Page 4 Phoenix Contact accepts no liability for erroneous handling or damage to products from Phoenix Contact or third-party products resulting from disregard of information contained in this manual.
- Page 5 The receipt of technical documentation (in particular data sheets, installation instructions, manuals, etc.) does not constitute any further duty on the part of Phoenix Contact to furnish information on alterations to products and/or technical documentation. Any other agreement shall only apply if expressly confirmed in writing by Phoenix Contact.
- Page 6 Phoenix Contact. Violators are liable for damages. Phoenix Contact reserves all rights in the case of patent award or listing of a registered design. Third-party products are always named without reference to patent rights. The existence of such rights shall not be excluded.
-
Page 7: Table Of Contents
UM EN OPC 7015/OPC 7022 NDEX ..........................9 EMARKS .................. 9 ELEVANT DOCUMENTATION FOR THE DEVICE ....................9 FIGURES AND MODIFICATION ........................9 RADE MARKS ....................10 NVIRONMENTAL CONDITIONS ......................... 11 ... - Page 8 UM EN OPC 7015/OPC 7022 & ..................33 OFTWARE DRIVER INSTALLATION ................... 33 NSTALLING THE OPERATING SYSTEM ..................34 OUCH SCREEN DRIVER INSTALLATION ........................34 OFT KEYBOARD ....................... 35 OMPONENT REPLACEMENT .....................
-
Page 9: Remarks
UM EN OPC 7015/OPC 7022 EMARKS 1.1 R ELEVANT DOCUMENTATION FOR THE DEVICE The following documents are essential for setting up and operating this device: SER MANUAL THIS DOCUMENTATION Contains information for installation, commissioning and operating the device along with technical data of the device hardware. -
Page 10: Nvironmental Conditions
NVIRONMENTAL CONDITIONS The device may be operated under the following conditions. Failure to observe these specifications will terminate any warranty for this device. Phoenix Contact cannot be held liable for any damages arising due to improper use and handling. ... -
Page 11: Standards
Please check that all of the following components are contained in the packaging: 1 x device With 24 V DC devices: 3-pin lead-through plug from Phoenix Contact, 3-pin 3.81 OPC7 with a screw connection (already connected with device socket) ... -
Page 12: Operating Instructions
UM EN OPC 7015/OPC 7022 PERATING INSTRUCTIONS This device contains electrical voltages and extremely sensitive components. User intervention is restricted to plugging in additional cards only. The manufacturer or a service partner authorised by the manufacturer should be consulted if you plan to make further modifications. -
Page 13: Warranty / Repair
UM EN OPC 7015/OPC 7022 2.3 W ARRANTY REPAIR During the warranty period, any repair must be carried out by the manufacturer or by persons duly authorised by the manufacturer only. Pos: 14 /Datentechnik/Betriebshinweise/Behandlung und Entsorgung von Lithium-Batterien/Behandlung und Entsorgung von Lithium-Batterien @ 1\mod_1247056308470_6.doc @ 5922 @ 2.4 T... -
Page 14: Installation
UM EN OPC 7015/OPC 7022 NSTALLATION 3.1 I NSTALLATION OPTION This device is intended for integration into switch panels or switching cabinets. In order to allow for a safe installation and operation (connector access), these switch panels or control desks must be accessible from the back. The device can be integrated into switching cabinets with a wall thickness of 2 to 13 mm. -
Page 15: External Dimensions Of The Opc 7013 Model
UM EN OPC 7015/OPC 7022 3.2 E OPC 7013 XTERNAL DIMENSIONS OF THE MODEL PHOENIX CONTACT 8155_en_00... -
Page 16: Installation Layout For Opc 7013
UM EN OPC 7015/OPC 7022 3.3 I OPC 7013 NSTALLATION LAYOUT FOR 8155_en_00 PHOENIX CONTACT... -
Page 17: External Dimensions Of The Opc 7015 Model
UM EN OPC 7015/OPC 7022 3.4 E OPC 7015 XTERNAL DIMENSIONS OF THE MODEL PHOENIX CONTACT 8155_en_00... -
Page 18: Installation Layout For Opc 7015
UM EN OPC 7015/OPC 7022 3.5 I OPC 7015 NSTALLATION LAYOUT FOR 8155_en_00 PHOENIX CONTACT... -
Page 19: External Dimensions Of The Opc 7022 Model
UM EN OPC 7015/OPC 7022 3.6 E OPC 7022 XTERNAL DIMENSIONS OF THE MODEL PHOENIX CONTACT 8155_en_00... -
Page 20: Installation Layout For Opc 7022
UM EN OPC 7015/OPC 7022 3.7 I OPC 7022 NSTALLATION LAYOUT FOR Pos: 17 /Datentechnik/Montage/Reihenfolge der Montage/Reihenfolge der Montage für OPC 7013 / 7015 / 7022 @ 2\mod_1257325957019_6.doc @ 6790 @ 8155_en_00 PHOENIX CONTACT... -
Page 21: Order Of Installation
UM EN OPC 7015/OPC 7022 3.8 O RDER OF INSTALLATION NTEGRATING THE DEVICE IN AN INSTALLATION RECESS Warning: The PC must be switched off before connecting or disconnecting any cables in order to prevent damage to the electronics! The device may only be switched on after acclimatising to the ambient temperature in order to avoid condensate accumulation. - Page 22 UM EN OPC 7015/OPC 7022 Then insert the device into the recess created in the described way. The tensioners will snap back. 3) Please make sure to insert the device carefully into the switching cabinet. After that, the tensioners will snap back to the front. Now, the device is safely fixed in the installation recess.
- Page 23 UM EN OPC 7015/OPC 7022 Tensioners must be fastened hand-tight. Pos: 18 /Datentechnik/Inbetriebnahme/Systemmerkmale/Inbetriebnahme für OPC 7013 / 7015 / 7022 @ 2\mod_1257326026010_6.doc @ 6795 @ PHOENIX CONTACT 8155_en_00...
-
Page 24: Commissioning
UM EN OPC 7015/OPC 7022 OMMISSIONING Warning: The PC must be switched off before connecting or disconnecting any cables in order to prevent damage to the electronics! The device may only be switched on after acclimatising to the ambient temperature in order to avoid condensate accumulation. -
Page 25: Check For Operational Readiness
UM EN OPC 7015/OPC 7022 4.4 C HECK FOR OPERATIONAL READINESS Check the device for any hidden damage potentially caused by improper transport, operating or storage conditions or by improper use or handling (e.g. smoke development from the device, etc.). If any damage is detected, the device must be put out of service immediately and protected from accidental switch-on. -
Page 26: Operation
UM EN OPC 7015/OPC 7022 PERATION 5.1 F RONT CONTROL KEYS Depending on the equipment version, an operating system and a soft keyboard has previously been installed ex works. The keys on the front panel are occupied with the following functions by a specific driver in the soft keyboard:... -
Page 27: Soft Keyboard
UM EN OPC 7015/OPC 7022 5.2 S OFT KEYBOARD If an operating system is installed ex works, the soft keyboard is also preinstalled. If the operating system is delivered separately with the device, the soft keyboard must also be installed on site. By using the soft keyboard, data can be entered via the touch screen like with an external keyboard. -
Page 28: Touch Screen
UM EN OPC 7015/OPC 7022 5.3 T OUCH SCREEN The control system is equipped with a touch screen monitor. The touch screen monitor is internally connected with the USB interface. The driver software required for using the touch screen is integrated in the corresponding operating system, or can alternatively be installed from the enclosed service CD. -
Page 29: Interfaces
UM EN OPC 7015/OPC 7022 NTERFACES 6.1 I NTERFACE SETUP INTERFACE ADDRESS COM1 3F8h-3FF Pos: 27 /Datentechnik/Schnittstellen/Spannungsversorgung/Spannungsversorgung für OPC7000-Serie @ 2\mod_1270724385376_6.doc @ 7572 @ 6.2 24 V DC POWER SUPPLY This power supply is provided to the device by using a lead-through terminal with a screw connection. -
Page 30: Network Connection (Rj45)
UM EN OPC 7015/OPC 7022 6.4 N (RJ45) ETWORK CONNECTION If the drivers required for functioning are installed on the device, the control system may be integrated in an Ethernet network supporting the 10/100 Mbit standard by using the Ethernet 10/100BaseT network connector. Specifications of this network topology must be observed in this case. -
Page 31: External Drives
UM EN OPC 7015/OPC 7022 6.6 E XTERNAL DRIVES By default, no drive for removable media (CD/floppy disk) is integrated in the device. Instead, the system provides a USB interface, to which an external drive can be connected. In this case you'd have to ensure that the used device is suitable for industrial environments. -
Page 32: Drives
UM EN OPC 7015/OPC 7022 RIVES 7.1 H / SSD ARD DRIVE FLASH MEMORY The storage medium is selected according to the customer requirements. The following options are available for storage: SSD Flash memory: An SSD flash memory is used. Its capacity depends on the desired operating system and the additional programmes to be installed. -
Page 33: Software & Driver Installation
UM EN OPC 7015/OPC 7022 & OFTWARE DRIVER INSTALLATION The device will be delivered with a pre-installed Windows / Linux operating system depending on what the customer wants. The drivers required for this are already installed and the operating system will be enabled by entering the licence information. Should an initial installation be required, please proceed according to the following steps. -
Page 34: Touch Screen Driver Installation
UM EN OPC 7015/OPC 7022 8.2 T OUCH SCREEN DRIVER INSTALLATION Note: When installing the driver, you'll have to take in account that the touch screen monitor is internally connected with the USB interface! The installation has to be carried out as described below: ... -
Page 35: Component Replacement
UM EN OPC 7015/OPC 7022 OMPONENT REPLACEMENT Warning: Make sure that all cable connections are removed and that all supply voltages are disconnected from the device! 9.1 O PENING THE SERVICE SLOT Remove the four screws holding the service slot on the rear of the device. The screws can be removed by using a screw driver of Tx10 size. - Page 36 UM EN OPC 7015/OPC 7022 Removing the service slot cover gives you the opportunity of replacing the following components: Lithium battery Flash modules 8155_en_00 PHOENIX CONTACT...
-
Page 37: Hdd
UM EN OPC 7015/OPC 7022 9.2 1. HDD ( HARD DISK REPLACEMENT EMOVAL The pulling aid provided on the HDD should be used for removing the HDD from the device. Please pull the HDD carefully out. NSTALLATION The HDD must carefully be lowered into the slot and then pushed down until you feel that it has snapped in. -
Page 38: Fan Replacement
UM EN OPC 7015/OPC 7022 9.3 2. F AN REPLACEMENT Warning: The fan supply cable must be pulled off before replacing the fan! EMOVAL Remove screws holding using Tx10 size screw driver. The fan can now be lifted from the body and be replaced with a new fan. -
Page 39: Working Memory (Ram) Replacement
UM EN OPC 7015/OPC 7022 9.4 3. W (RAM) ORKING MEMORY REPLACEMENT EMOVAL The RAM component is unlocked and released by pulling both retainer clamps to the outside (1+2) and can be replaced with a new RAM. NSTALLATION Put the new RAM into the designated slot and push it to the rear until the retainer clamps snap in and lock it in place. -
Page 40: Replacing The Lithium Battery
2) Now the lithium battery can be removed. It must only be replaced by the same battery type. The type of battery to be used is: Lithium battery 1/2AA 3V (e.g. Phoenix Contact part number: DZ-SONS- 04100-0) Please observe the correct polarity when replacing the battery. -
Page 41: Replacing The Flash Modules
UM EN OPC 7015/OPC 7022 5. R EPLACING THE FLASH MODULES Note: The HDD (hard disk) must be removed before installing or replacing any of the SSD flash modules. EMOVAL Remove the screw(s) of the spacer bolt by using a Tx10 screw driver. - Page 42 UM EN OPC 7015/OPC 7022 NSTALLATION Carefully place the SSD flash module on top of the SSD flash slot so that the contacts on both sides match and press it carefully down. Make sure that the SSD flash module is correctly put in place, and that the contacts are properly connected with the SSD flash slot contacts.
