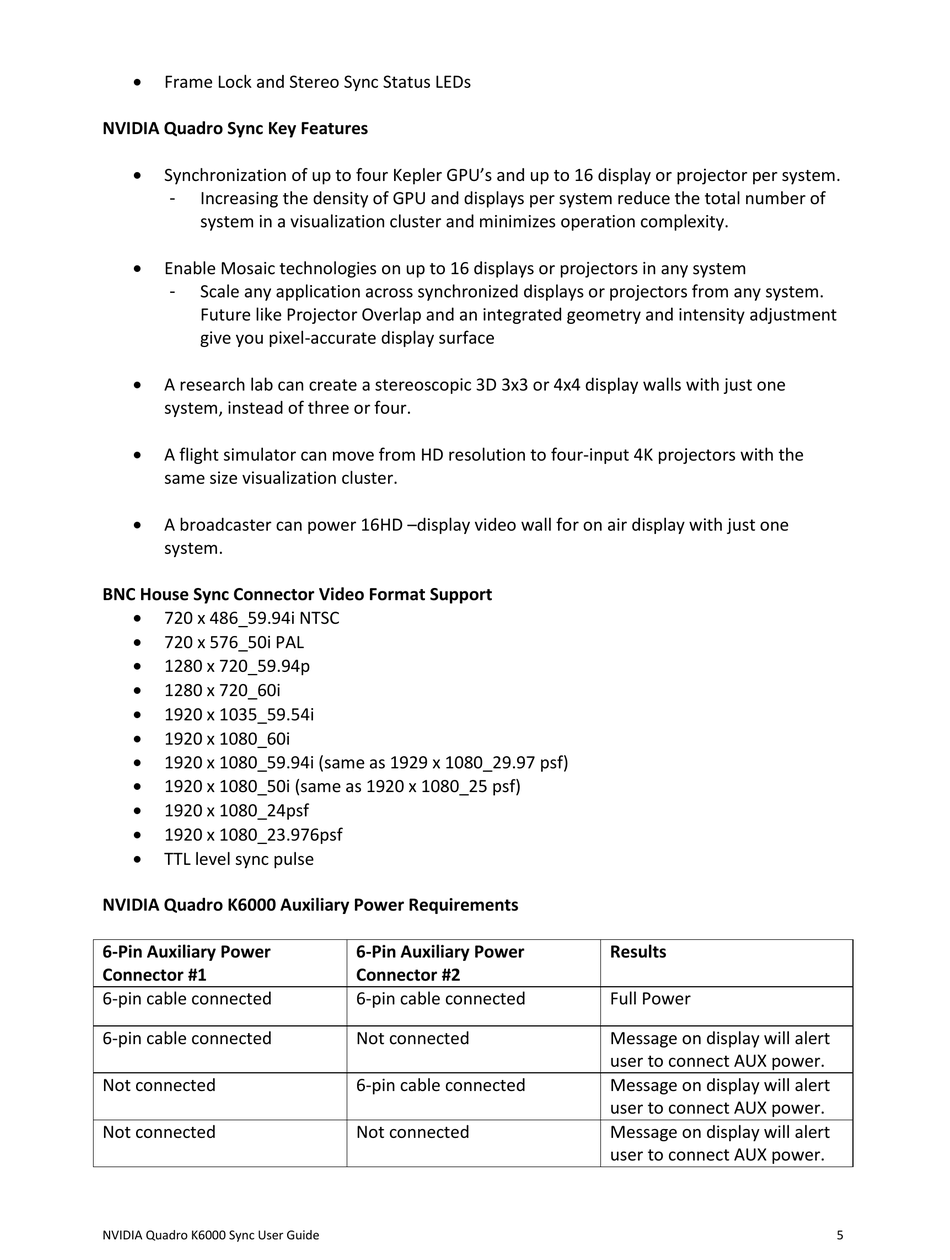

Frame Lock and Stereo Sync Status LEDs
NVIDIA Quadro Sync Key Features

Synchronization of up to four Kepler GPU's and up to 16 display or projector per system.
Increasing the density of GPU and displays per system reduce the total number of
-
system in a visualization cluster and minimizes operation complexity.

Enable Mosaic technologies on up to 16 displays or projectors in any system
- Scale any application across synchronized displays or projectors from any system.
Future like Projector Overlap and an integrated geometry and intensity adjustment
give you pixel-accurate display surface

A research lab can create a stereoscopic 3D 3x3 or 4x4 display walls with just one
system, instead of three or four.

A flight simulator can move from HD resolution to four-input 4K projectors with the
same size visualization cluster.

A broadcaster can power 16HD –display video wall for on air display with just one
system.
BNC House Sync Connector Video Format Support

720 x 486_59.94i NTSC

720 x 576_50i PAL

1280 x 720_59.94p

1280 x 720_60i

1920 x 1035_59.54i

1920 x 1080_60i

1920 x 1080_59.94i (same as 1929 x 1080_29.97 psf)

1920 x 1080_50i (same as 1920 x 1080_25 psf)

1920 x 1080_24psf

1920 x 1080_23.976psf

TTL level sync pulse
NVIDIA Quadro K6000 Auxiliary Power Requirements
6-Pin Auxiliary Power
Connector #1
6-pin cable connected
6-pin cable connected
Not connected
Not connected
NVIDIA Quadro K6000 Sync User Guide
6-Pin Auxiliary Power
Connector #2
6-pin cable connected
Not connected
6-pin cable connected
Not connected
Results
Full Power
Message on display will alert
user to connect AUX power.
Message on display will alert
user to connect AUX power.
Message on display will alert
user to connect AUX power.
