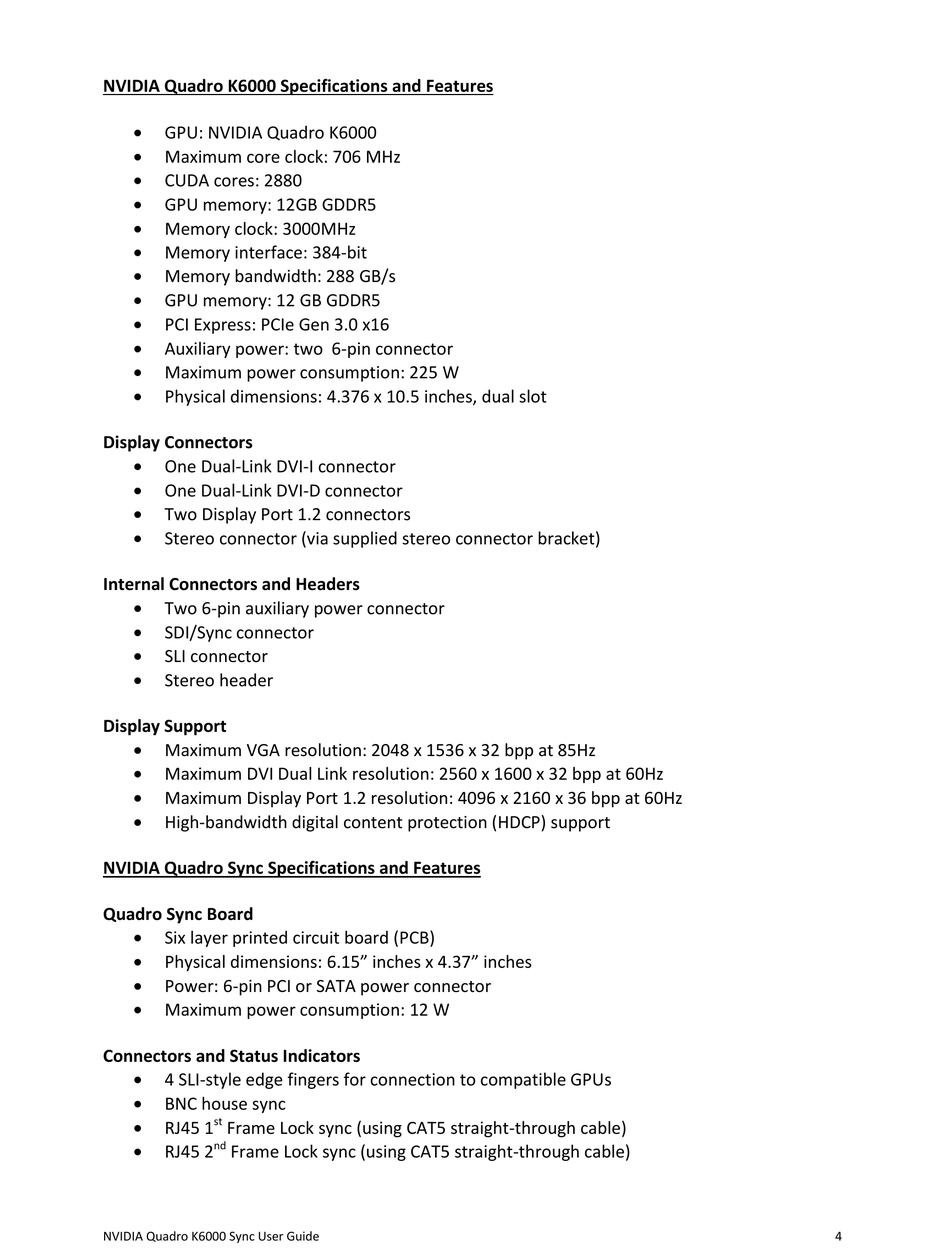

NVIDIA Quadro K6000 Specifications and Features

GPU: NVIDIA Quadro K6000

Maximum core clock: 706 MHz

CUDA cores: 2880

GPU memory: 12GB GDDR5

Memory clock: 3000MHz

Memory interface: 384-bit

Memory bandwidth: 288 GB/s

GPU memory: 12 GB GDDR5

PCI Express: PCIe Gen 3.0 x16

Auxiliary power: two 6-pin connector

Maximum power consumption: 225 W

Physical dimensions: 4.376 x 10.5 inches, dual slot
Display Connectors

One Dual-Link DVI-I connector

One Dual-Link DVI-D connector

Two Display Port 1.2 connectors

Stereo connector (via supplied stereo connector bracket)
Internal Connectors and Headers

Two 6-pin auxiliary power connector

SDI/Sync connector

SLI connector

Stereo header
Display Support

Maximum VGA resolution: 2048 x 1536 x 32 bpp at 85Hz

Maximum DVI Dual Link resolution: 2560 x 1600 x 32 bpp at 60Hz

Maximum Display Port 1.2 resolution: 4096 x 2160 x 36 bpp at 60Hz

High-bandwidth digital content protection (HDCP) support
NVIDIA Quadro Sync Specifications and Features
Quadro Sync Board

Six layer printed circuit board (PCB)

Physical dimensions: 6.15" inches x 4.37" inches

Power: 6-pin PCI or SATA power connector

Maximum power consumption: 12 W
Connectors and Status Indicators

4 SLI-style edge fingers for connection to compatible GPUs

BNC house sync

st
RJ45 1 Frame Lock sync (using CAT5 straight-through cable)

nd
RJ45 2 Frame Lock sync (using CAT5 straight-through cable)
NVIDIA Quadro K6000 Sync User Guide 4
