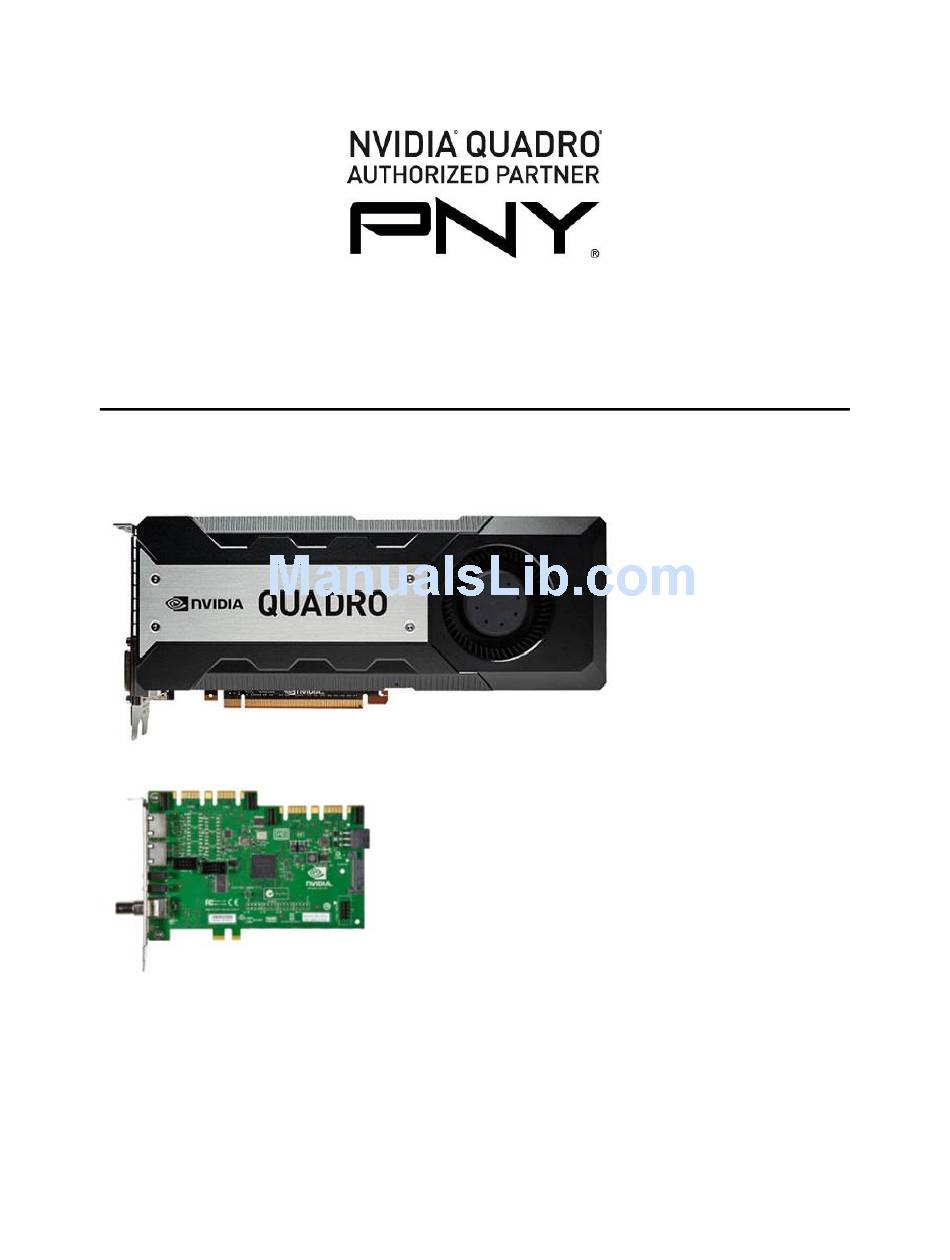

NVIDIA® Quadro® K6000 Sync
PNY Part Number: VCQK6000SYNC-PB
User Guide
PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 888.230.0130 Support | 800.333.3657 Sales
Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of
NVIDIA. The PNY logo is a registered trademark of PNY Technologies. All other trademarks are the property of their
respective owners. © 2013 by PNY Technologies. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCQK6000SYNC-PB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nvidia VCQK6000SYNC-PB

  • Page 1 Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY logo is a registered trademark of PNY Technologies. All other trademarks are the property of their respective owners. © 2013 by PNY Technologies. All rights reserved.
  • Page 2 The K6000 requires auxiliary power via two PCIe 6-pin auxiliary power connectors. The NVIDIA Quadro Sync board is designed to fit into any available expansion slot within 6 inches of the NVIDIA Quadro K6000. The Quadro Sync requires power via a 6-pin PCIe power connector or SATA power connector.
  • Page 3 GPU memory: 12 GB GDDR5  PCI Express: PCIe Gen 3.0 x16  Auxiliary power: two PCIe 6-pin connectors  Maximum power consumption: 225 W  Physical dimensions 4.376 x 10.5 inches, dual slot NVIDIA Quadro K6000 Sync User Guide v8.9.13...
  • Page 4  A stereoscopic 3D 3 x 3 or 4 x 4 display wall can be built with just one system, instead of three or four. NVIDIA Quadro K6000 Sync User Guide v8.9.13...
  • Page 5 1920 x 1080_50i (same as 1920 x 1080_25 psf)  1920 x 1080_24psf  1920 x 1080_23.976psf  TTL level sync pulse NVIDIA Quadro K6000 Auxiliary Power by Rail 6-Pin Auxiliary Power 6-Pin Auxiliary Power Results connector #1 connector #2 6-pin cable connected...
  • Page 6 Quadro K6000, Quadro Sync and Mosaic Configuration Options 1) Four display configuration with the Quadro K6000 and Quadro Sync 2) Eight (1 x 8 or 2 x 4) display configuration with two Quadro K6000s and Quadro Sync. NVIDIA Quadro K6000 Sync User Guide v8.9.13...
  • Page 7 3) Twelve (4 x 3) display configuration with three Quadro K6000s and Quadro Sync. NVIDIA Quadro K6000 Sync User Guide v8.9.13...
  • Page 8 4) Sixteen (4 x 4) display configuration with four Quadro K6000s and Quadro Sync. NVIDIA Quadro K6000 Sync User Guide v8.9.13...
