NVIDIA GeForce GTX 980 Ti - Graphics Card Manual

INTRODUCTION

The GeForce GTX 980 Ti is a powerful graphics card that gives you the fast, smooth, quiet gaming you're looking for in all your favorite titles. With features like GPU boost 2.0, NVIDIA TXAA, and NVIDIA PhysX, this graphics card will give you the best your games have to offer.

Plus, with NVIDIA's GeForce Experience built right into its drivers, you can take advantage of NVIDIA's tens of thousands of hours of testing to optimize your gameplay settings with one click.

About This Guide

This installation guide discusses the installation and operation of the NVIDIA GeForce GTX 980 Ti graphic card.

Note: It is important to register your product in order to receive online and phone support. Consult the registration card included in the retail packaging for more information on registering your product.

Minimum System Requirements

• Motherboard
  PCI Express^® or PCI Express 3.0-compliant motherboard with one dual-width x16 graphics slot.
• System Power Supply
  Minimum 600 W or greater system power supply with two 6-pin PCI Express supplementary power connectors.
• Operating System
  • Microsoft Windows 8, 32-bit or 64-bit
  • Microsoft Windows 7, 32-bit or 64-bit
  • Linux, 32-bit or 64-bit
  • FreebSD x86
• System Memory
  8 Gb system memory (16 Gb recommended)
• DVD-ROM drive or internet connection for driver installation
• 300 MB of available hard disk space

UNPACKING

Prior to unpacking your new NVIDIA GeForce GTX 980 Ti graphics card, it is important to make sure you meet all the system requirements for a smooth installation.
Be sure to inspect each piece of equipment shipped in the packing box. If anything is missing or damaged, contact your reseller.

Equipment

The following equipment and documentation are included in the GeForce GTX 980 Ti graphics card box.

1. NVIDIA Driver Installation Disc

   Contains:
   • GeForce Experience Software
   • For other operating systems and to keep your drivers current, visit www.nvidia.com/drivers and download the latest drivers
   • Digital version of this Manual and Driver
2. Quick Start Guide
   Fast and easy steps to install the GeForce graphics card.
3. Registration Card
   Register to gain priority access to online and phone support.

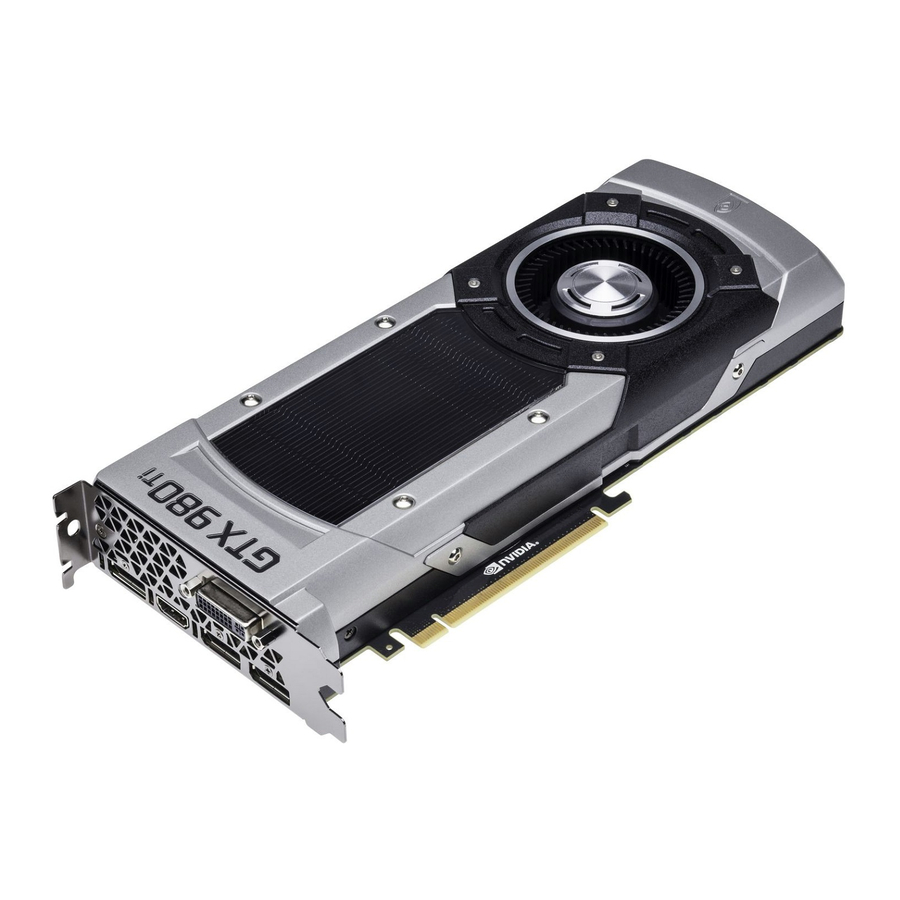

4. GeForce GTX 980 Ti Graphics Card


HARDWARE INSTALLATION

Installing the NVIDIA GeForce GTX 980 Ti graphics card hardware involves opening up your computer. Follow all of the safety instructions provided here to ensure that there is no damage to you, your computer, or the graphics board.

Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions.

Note: All hardware must be installed prior to installation of the drivers.

• Remove power from your computer by disconnecting the AC main source before installation.
• Do not operate this product near water or when your hands or body are wet.
• Do not place this product on soft surfaces that could block the ventilation slots and cause overheating.
• Do not place this product near a heating register or radiator.
• Place this product securely on a stable surface. Serious damage to this product may result if it falls.
• Do not allow anything to rest on the power cord. Do not place this product where a person can step or trip on the power cord.

Before You Begin

The GeForce GTX 980 Ti graphics card is a PCI Express 3.0 ×16 graphics card. Your computer may already have a graphics card installed in the PCI Express slot. If so, you will need to remove that graphics card and replace it with the GeForce GTX 980 Ti graphics card.
If you do not have a graphics card, this means that your motherboard has on-board graphics (there is a graphics chip installed on your motherboard or integrated in the motherboard chipset). If this is the case, there is no action that needs to be taken before installing your new graphics card.

Installing the GeForce Graphics Card

Because there are so many different computer systems on the market, the procedure to install the GeForce GTX 980 Ti graphics card can vary from system to system. Use the following instructions as a guideline and consult the documentation for your computer system for any further information on your individual system.

Note: It is important that all power to the computer be disconnected before you install the graphics card.

Discharge your body's static electricity by touching a grounded surface before touching the graphics card. A grounded surface is the computer chassis, or some other surface you know to be grounded.

Use the following procedure to install the GeForce GTX 980 Ti graphics card into your computer system.

1. Turn off your computer and monitor and disconnect the power cord. Depending on your computer system, you may need to disconnect the cable going to the back of your system. Mark the cables so you can make sure you reconnect them properly.
2. Open your computer by removing the cover/side panel. Refer to your computer documentation from the original manufacturer for assistance.
3. Remove any existing graphics card (if there is one). Save hardware (such as screws and brackets) to use when installing the NVIDIA graphics card.
   Attention:
   If your system has been running for a period of time prior to opening the panels, it is very important that you wait until the graphics card in your system has cooled before taking the card out of the system. Graphics cards get very hot when they have been operating for any length of time.
4. Remove two adjacent slot covers if you do not have a graphics card installed.

   Note: The GeForce GTX 980 Ti card is double-wide so it will require removing two slot covers.
5. Plug the GeForce GTX 980 Ti graphics card into the Primary PCI Express x16 slot on your motherboard. This is often the slot closest to the CPU but may be the second or third slot. Look for the slot labeled ×16. It will likely be the only PCI Express slot with a retention lever on the end of the slot or the one closest to the CPU

   Note: It is recommended that you install the graphics card into the primary PCI Express x16 slot. If you install the graphics card into the secondary slot, your system may not recognize the graphics card and there will be nothing displayed on the monitor. Also note that on some motherboard SBIOS, the physical location of the primary slot can be configured when there are more than one PCI Express x16 slots.
   If you are installing additional GeForce GTX 980 Ti graphics cards for an SLI configuration, continue with step 6 (2-way SLI) or step 6 and 7 (3-way SLI). If you are only installing one GeForce card, go on to step 8.
   Note: All of the graphics cards in an SLI configuration must be identical. Therefore, you must have all GeForce GTX 980 Ti graphics cards.
6. Install a second GeForce GTX 980 Ti graphic card (2-way SLI):
   1. Install the second GeForce card into the outer most PCI Express x16 slot on the motherboard.
   2. Connect the two GeForce GTX 980 Ti cards together using the dual SLI bridge connector that came with your SLI-ready motherboard.

7. Install a third GeForce GTX 980 Ti graphic card (3-way SLI):
   1. Install the third GeForce card into the middle PCI Express x16 slot on the motherboard.
   2. Connect the three GeForce GTX 980 Ti cards together using the tripple SLI bridge connector that came with your SLI-ready motherboard.

8. Connect one 6-pin and one 8-pin PCI Express auxiliary power connectors to the top edge of the GeForce GTX 980 Ti graphics card. Note that the connectors and sockets on the graphics card have a unique shape and connect one way only.

9. Reinstall the cover on your computer and reconnect any cables that you removed earlier in the installation.


SOFTWARE INSTALLATION

With the hardware installed, it is now time to install the GeForce Experience software and the graphics driver.

GeForce Experience Software Installation

1. Go to http://www.geforce.com/geforce-experience/download. to download GeForce Experience software.
2. Accept the NVIDIA software license agreement by selecting AGREE AND CONTINUE.

   The GeForce Experience software begins to install.

3. Select Close to finish the installation.


NVIDIA Driver Installation

To install/update your graphics driver, use the newly installed GeForce Experience. GeForce Experience automatically checks NVIDIA servers for the latest GeForce drivers each day, and notifies users if a new driver is available

1. Open GeForce Experience and select the Drivers tab.
2. Select Download driver.

   Your GPU driver begins to download.

3. Select Express installation when the download finishes.

   GeForce Express begins to install the graphics driver.

   Note: It may take several minutes for the installation to take place. Your screen may go blank for a few seconds one or more times during installation. This is normal.

4. Click CLOSE when the driver install completes.

   Note: Visit http://www.nvidia.com/support to access our 24x7x365 online support system. GeForce customers purchasing NVIDIA-branded products also have access to toll free technical support at 1-800-797-6530 from 8:00AM-5:00PM Pacific Time, M-F. The technical support line is accessible from the U.S. and Canada only.

CONFIGURING SLI

SLI is a revolutionary technology developed by NVIDIA that allows you to connect identical GeForce graphics cards together to deliver increased performance.

You can enable SLI by either clicking on the SLI capable system balloon in the system tray or by going to the NVIDIA Control Panel.

Note: You must have an SLI-ready motherboard and 2 or 3 identical SLI-ready GeForce graphics cards installed in your PC in order to enable SLI

Accessing the NVIDIA Control Panel

1. To access the NVIDIA Control Panel, you can right-click the Windows desktop and select NVIDIA Control Panel from the menu. Other ways to access the NVIDIA Control Panel depends on the operating system.
   • Windows 8
     Using a mouse, point to the upper-right corner of the screen, click Settings → Control Panel → Hardware and Sound → and select the NVIDIA Control Panel icon.
   • Windows 7
     Go to Start → Control Panel → Hardware and Sound and select the NVIDIA Control Panel icon.

Enabling / Disabling SLI

1. Once you have the NVIDIA Control Panel open, click on Configure SLI, Surround, PhysX in the left task pane.
2. Select from the following multi-GPU configurations:
   • Maximize 3D performance
     Select this mode when you want your graphics cards to work together to increase your rendering performance and image quality.
   • Acivate all displays
     Activate all displays disables SLI and activates all connected displays (heads).
   • PhysX settings
     PhysX settings switches which GPU runs PhysX and can also dedicate a GPU to PhysX only.
   • Disable SLI Default Selection.
3. Click Apply.


CONFIGURING HDMI

Connecting your HDTV via HDMI allows you to output both digital audio and video from your graphics card to an HDTV.

Enabling Audio Over HDMI

If you are connecting to your display over HDMI, you may need to set the HDMI output to be your default audio device.

In Windows 8, select Start → Control Panel → Sound.
On the Playback tab, select your HDMI display and select Set Default.

In Windows 7, select Start → Control Panel → Sound.
On the Playback tab, select your HDMI display and select Set Default.

Congratulations! Your GeForce graphics card(s) is now ready to use!

For detailed instructions on using the NVIDIA Control Panel, consult the Control Panel User's Guide found at www.geforce.com/drivers (select your driver, then click on Documentation to download the User's Guide).

FEATURES

• NVIDIA Maxwell^™: This is NVIDIA's most advanced architecture ever, delivering incredible performance and unmatched power efficiency. Plus, it offers cutting-edge features like advanced sampling and Dynamic Super Resolution technology that delivers 4k fidelity — even on 1080p displays.
• GeForce^® Experience^™: Ensures the best gaming experience, the day a game releases, by automatically updating your game-ready drivers. Plus, it allows users to optimize the game settings to their
  PC with a single click. GeForce Experience also includes NVIDIA ShadowPlay™ that lets you capture and share your favorite gaming moments.
• Multi-Frame sampled Anti-Aliasing (MFAA): MFAA delivers a 30% performance boost while maintaining smooth, high-quality edges by alternating sample calculations across each frame and each pixel.
• Dynamic Super Resolution (DSR): This innovative feature can delivers 4k fidelity to 1080p displays for exceptional detail and image quality.
• Voxel Global Illumination (VXGI): Part of the NVIDIA GameWorks™ library for developers, VXGI accelerates dynamic lighting effects for a truly immersive, cinematic experience.
• NVIDIA GameStream™¹: Stream extreme GeForce® GTX™ PC gaming experiences to portable devices like NVIDIA SHIELD™ with super-smooth, low-latency performance.
• NVIDIA G-SYNC™-Ready²: NVIDIA G-SYNC monitors feature revolutionary NVIDIA technology that eliminates screen tearing while also reducing input lag. The result is a smoothest, fastest, and most responsive gaming monitor experience ever seen.
• DirectX 12 Support: Support for the latest Microsoft DirectX API to enable next-generation gaming.
• NVIDIA GpU boost™ 2.0: Dynamically maximizes clock speeds based on workload and allows enthusiast-class controls such as temperature target and fan controls, extra over-voltage headroom, and optimizations for water-cooling solutions. This allows gamers to push performance to new levels.
• NVIDIA Adaptive Vertical Sync: Dynamically enable vertical sync based on your current frame rates for the smoothest gaming experience.
• NVIDIA CUDA™: Unlock the power of the GPU's processor cores to accelerate demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.
• Display port: Drive the latest DisplayPort panels with support for resolutions up to 5120x3200.
• HDMI: Support for HDMI includes 4k resolution at 60 Hz, GPUaccelerated blu-ray 3D support, x.v. Color, HDMI Deep Color, and 7.1 digital surroundsound.
• Dual-link DVI: Drive flat-panel displays up to 2560x1600 resolution over a DVI connector.
• PCI Express 3.0: This card is designed for the new PCI Express 3.0 bus architecture, offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications. It also maintains backwards compatibility with existing PCI Express motherboards for the broadest support.

1. NVIDIA GameStream requires an NVIDIA GameStream-ready device.
2. NVIDIA G-SYNC requires an NVIDIA G-SYNC-ready monitor.

www.nvidia.com
