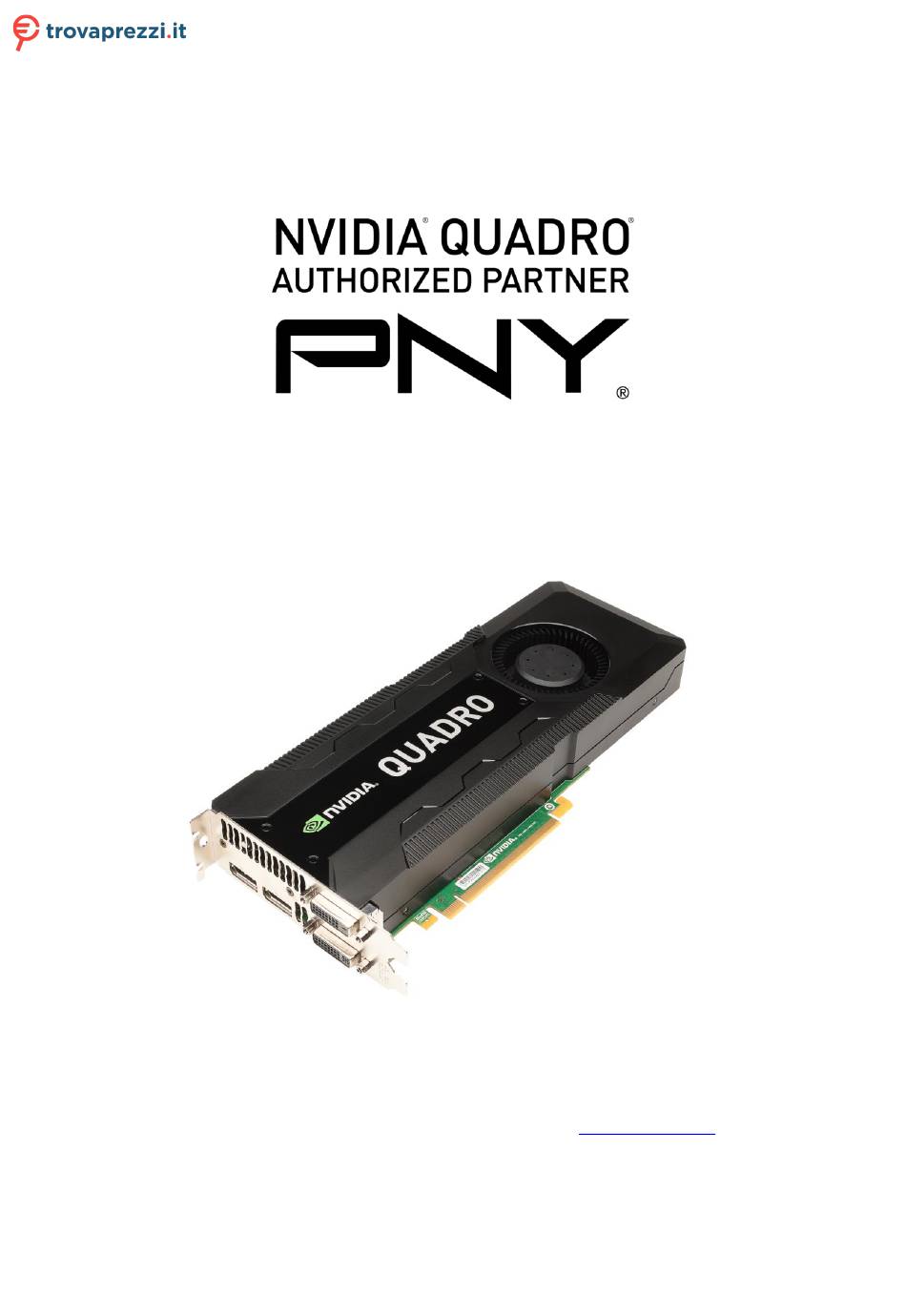

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
295
o cerca il tuo prodotto tra le
NVIDIA
Quadro
©
PNY | 100 Jefferson Road | Parsippany, NJ 07054-0218 | 800.230.0130 |
Copyright © 2013 by PNY, all rights reserved. No reproduction of this document in any form is permitted
without prior written authorization from PNY. NVIDIA and Quadro are registered trademarks of NVIDIA
Corporation. NVS is a trademark of NVIDIA. The PNY logo is a registered trademark of PNY. All other
registered trademarks are the property of their respective owners.
migliori offerte di Schede Grafiche
and NVIDIA NVS
©
User Guide
™
v2_15_13
www.pny.com/quadro
PNY Quadro NVS
Advertisement
Table of Contents
Related Manuals for Nvidia Quadro 6000
Summary of Contents for Nvidia Quadro 6000
- Page 1 PNY. NVIDIA and Quadro are registered trademarks of NVIDIA Corporation. NVS is a trademark of NVIDIA. The PNY logo is a registered trademark of PNY. All other registered trademarks are the property of their respective owners.
-
Page 2: Table Of Contents
Table of Contents Introduction Minimum System Requirements Package Contents Hardware Installation Additional Power Requirements Attaching Displays NVIDIA Graphics Driver Installation ™ NVIDIA nView Installation NVIDIA Control Panel Technical Support PNY’s Replacement Warranty FCC Information - 2 -... -
Page 3: Introduction
Introduction Congratulations on the purchase of your new NVIDIA Quadro or NVIDIA NVS professional graphics board. You are now the owner of a state-of-the-art graphics board specifically designed for demanding 3D or enterprise graphics and video applications, offering features and functionality beyond any other cards in their class. -
Page 4: Hardware Installation
▪ DVD-ROM with driver software for Windows 8, 7, Vista or XP SP3 (64- or 32-bit) Hardware Installation Follow the steps listed in the order given to successfully install your new NVIDIA Quadro or NVIDIA NVS professional graphics board. Important Static electricity can severely damage electronic components. -
Page 5: Additional Power Requirements
Quadro 6000 graphics boards have two auxiliary power connectors, one 8-pin connector and one 6-pin connector. The 8-pin connector will drive your Quadro 6000 when connected to the dedicated graphics 8- pin connector tap provided by PCIE Gen 2 compliant power supplies. Older systems must use two 6-pin auxiliary power connector cables (provided) for proper operation. -
Page 6: Attaching Displays
Connecting the SPDIF Audio Cable An 18” SPDIF audio interface cable is provided with NVIDIA NVS 295 professional graphics boards. This cable allows content with an audio signal, such as Blu-ray or DVD to be passed from the motherboard for further processing and signal conversion. -
Page 7: Nvidia Graphics Driver Installation
Power up your system and let it boot into Windows 8, 7, Vista or XP SP3. Logon and proceed as noted below: ▪ Insert the NVIDIA Quadro by PNY driver installation DVD into the Blu-ray or DVD-ROM drive. The DVD will autorun and you will be presented with a main menu that includes driver installation, along with other options. -
Page 8: Nvidia Control Panel
NVIDIA Control Panel The NVIDIA Control Panel (available after driver installation) allows you to access and configure all of the features offered by your NVIDIA Quadro, Quadro NVS, or NVS series professional graphics card. From changing screen resolution and other image settings, to selecting optimum performance options for your... - Page 9 ▪ The listbox contains all of the features you can adjust on your NVIDIA Quadro or NVS graphics board. You can change the setting of a feature using the dropdown listbox beside the feature name. If in doubt about a particular feature the ‘Application-controlled’ setting is your best option.
- Page 10 ▪ If you elect to use a resolution on your flat panel display other than the display’s native resolution, this setting allows you specify the scaling used in order to achieve the highest possible display quality, but please note that flat panel displays always look best when run at native resolution. Figure 5 –...
- Page 11 ▪ NVIDIA NVRotate allows you to change the orientation of your desktop. This is useful if you have rotated your physical display and need to rotate the desktop to match the orientation of your display. Options include ‘No rotation (Landscape)’, ’90 degrees to the left (Portrait)’, 90 degrees to the right (Inverted Portrait)’, and ‘180 degree rotation (Inverted Landscape)’.
- Page 12 ▪ Set up Multiple Displays allows you to set optimal parameters for each display, gives you full control over features such as horizontal or vertical monitor spanning, and allows you to position the displays relative to one another based on where they are physically located. Figure 9 –...
-
Page 13: Technical Support
PNY will ensure access to this valuable service. PNY’s Replacement Warranty PNY warrants your NVIDIA Quadro or NVIDIA NVS professional graphics board to be free from defects in materials and workmanship for a period of three years from the date of purchase (For additional information visit http://www.pny.com/support/register/warr2.asp.), of the product as sold to the original purchaser,... - Page 14 ▪ Consult the reseller or an experienced radio or TV technician for additional help and assistance This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any interference received, including interference that may cause undesired operation.
