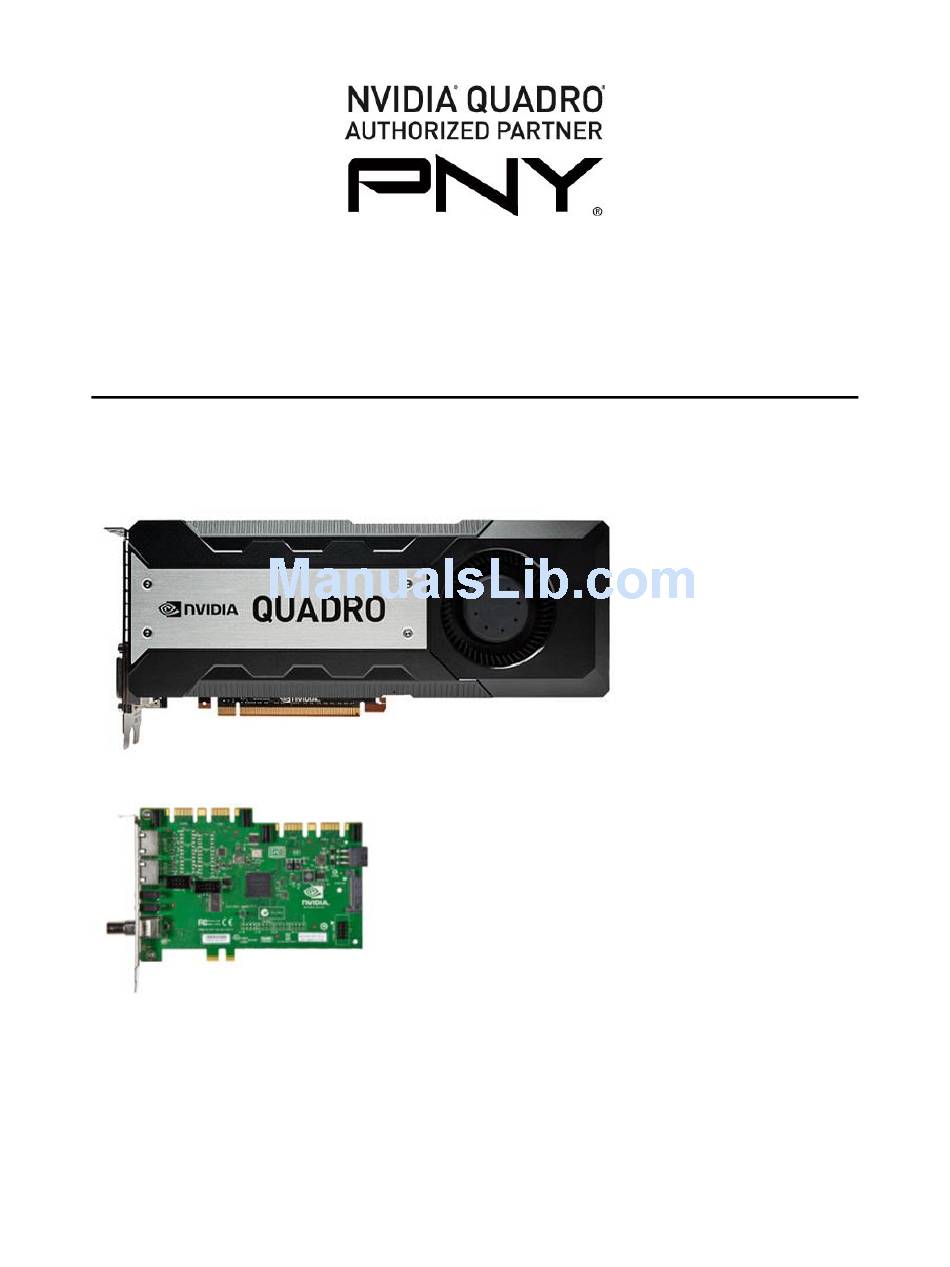

NVIDIA Quadro K6000 Sync
PNY Part Number: VCQK6000SYNC-PB

User Guide

PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 973-515-9700 | www.pny.com/quadro
Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY
logotype is a registered trademark of PNY. All other trademarks are the property of their respective owners. © 2014 PNY. All rights
reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quadro K6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Nvidia Quadro K6000

Summary of Contents for Nvidia Quadro K6000

  • Page 1: User Guide

    PNY | 100 Jefferson Road | Parsippany | NJ 07054-0218 | 973-515-9700 | www.pny.com/quadro Features and specifications are subject to change without notice. NVIDIA and Quadro are registered trademarks of NVIDIA. The PNY logotype is a registered trademark of PNY. All other trademarks are the property of their respective owners. © 2014 PNY. All rights...
  • Page 2 The NVIDIA Quadro Sync board is designed to fit into any available expansion slot within 6 to 24 inches of the NVIDIA Quadro K6000. The Quadro Sync requires power via a 6-pin power connector or SATA power connector. The Quadro Sync card can host up to four (4) NVIDIA Quadro K6000 boards.
  • Page 3 The NVIDIA Quadro K6000 graphics board offers 4GB of GDDR5 GPU memory and supports display types ranging from analog CRTs to the latest digital flat panels. NVIDIA Quadro K6000 Photo NVIDIA Quadro Sync Photo Refer to the NVIDIA Quadro Sync Quick Start Guide which covers the various connectors available and how to connect the Quadro Sync board to the Quadro K6000.
  • Page 4 NVIDIA Quadro K6000 Specifications and Features  GPU: NVIDIA Quadro K6000  Maximum core clock: 706 MHz  CUDA cores: 2880  GPU memory: 12GB GDDR5  Memory clock: 3000MHz  Memory interface: 384-bit  Memory bandwidth: 288 GB/s ...
  • Page 5 1920 x 1080_50i (same as 1920 x 1080_25 psf)  1920 x 1080_24psf  1920 x 1080_23.976psf  TTL level sync pulse NVIDIA Quadro K6000 Auxiliary Power Requirements 6-Pin Auxiliary Power 6-Pin Auxiliary Power Results Connector #1 Connector #2 6-pin cable connected...
  • Page 6 Swap Lock features are available Quadro K6000, Quadro Sync and Mosaic Configuration Options 1) Four display configuration with Quadro K6000 and Quadro Sync. 2) Eight (1 x 8 or 2 x 4) display configuration with two Quadro K6000s and Quadro Sync.
  • Page 7 3) Twelve (4 x 3) display configuration with three Quadro K6000s and Quadro Sync. NVIDIA Quadro K6000 Sync User Guide...
  • Page 8 4) Sixteen (4 x 4) display configuration with four Quadro K6000s and Quadro Sync. Motherboard, Power Supply, and System Enclosure Selection The Quadro Sync card supports up to four Quadro K6000 boards. The number of K6000’s that can be installed will vary by motherboard, system enclosure, and power supply capacity. When configuring a multi-K6000 system choose all of these components accordingly.
