  • Page 1 DelfiScan C70 Programming Manual...

  • Page 2: Table Of Contents

    Table of Contents Getting Started Getting Familiar with your DelfiScan Connecting/Disconnecting Cable Connecting Host Interface Configure Your DelfiScan Bar Code Programming Manual Programming Procedures Host Interface Selection Symbology Reading Control Keyboard Interface Control Serial Interface Control Wand Emulation Control Operation Control Condensed DataWizard Appendix Keyboard Function Code Table...

  • Page 3: Getting Started

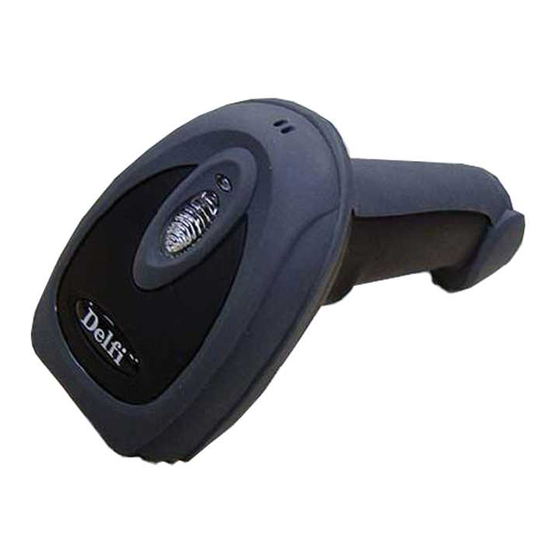

    Getting Started Getting Familiar with your DelfiScan Thank you for choosing DelfiScan Imager. All DelfiScan Imagers deliver world-class performance for a broad range of market applications to unleash your productivity. This document provides installation and programming instructions for DelfiScan Imagers. C70 Series 1.

  • Page 4: Connecting Host Interface

    Connecting Host Interface DelfiScan imagers have capability to connect different host devices by PS/2(DOS/V) Keyboard Wedge, RS-232 Serial and USB interfaces. Please choose one of the interface cables to connect your host device by referring to the illustrations below. PS/2(DOS/V) Keyboard Wedge RS232 Serial...

  • Page 5: Bar Code Programming Manual

    Bar Code Programming Menu The DelfiScan bar code commands are specially designed Proprietary bar code labels which allow you to set the DelfiScan internal programming parameters. There are System Command, Family Code and Option Code for programming purpose. Each programmable family and bar code command label is listed on the same page with major system commands. The detailed explanations and special programming flowchart are printed on facing or following pages.

  • Page 6: Programming Procedures

    Programming Procedures As you scan the bar code command to select the desired parameters, information about the final selected parameters represented by the bar code commands are stored in the DelfiScan’s internal Flash Memory ASIC or non-volatile memory. If you turn off the unit, the Flash Memory ASIC or non-volatile memory retains all programming options. You need not re-program the DelfiScan if you want to keep the existing configurations in the next power on.
  • Page 7 Program & End Scan “PROGRAM” DelfiScan will enter programming mode, and inhibit all non-programming functions. Scan “END” DelfiScan will exit programming mode, and store all parameters in Flash Memory ASIC or non-volatile memory, then issue the completion beeping. Please note that the DelfiScan will take 3-4 seconds to store parameters in internal Flash Memory ASIC or non-volatile memory after you scan the “END”.
  • Page 8 Single scan selection Scan “PROGRAM” Enter programming mode. Select one of desired Scan programming families. One of Family Codes Select one option code of Scan desired parameter. One of Option Codes Want to select another Repeat programming family? Selection Scan Exit programming mode.
  • Page 9 Multiple scans selection Scan “PROGRAM” Enter programming mode. Select one of desired Scan programming families. One of Family Codes 1. Select one or several Scan One or option codes to select Several Option Codes desired parameters. 2. If it’s necessary, scan “FIN”...
  • Page 10 Cycling scan selection Scan “PROGRAM” Enter programming mode. Select one of desired Scan programming families. One of Family Codes Cycling select one or several option codes of Scan desired parameters as One of Option Codes “Single” or “Multiple” scans selection. Scan “FIN”...
  • Page 11 Dual level selection Scan “PROGRAM” Enter programming mode. Select one of desired Scan programming families. One of Family Codes Select several option codes (1st) Scan of desired parameters. Several Option Codes 1. Select one or several option codes of desired parameters.

  • Page 12: Host Interface Selection

    Host Interface Selection PROGRAM M_DEFAULT Family Code Selection P.C Parameter Selection Option Code Host Interface Selection Standard/TTL RS-232 peer-to-peer serial interface Wand emulation interface PC/AT, PS/2 keyboard replacement interface (without external keyboard) General Notebook PC keyboard wedge interface (with external keybaord) USB keyboard interface (for Microsoft Windows 98, 2000, XP, Vista and Apple iMac) IBM PS/55 5576-001 (code set 81) keyboard wedge interface IBM PS/55 5576-002 (code set 81) keyboard wedge interface...

  • Page 13: Symbology Reading Control

    Symbology Reading Control User Defined Symbol ID PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Symbol ID : 1 character Code 128 (default=B) (1 character) UCC/EAN-128 (default=C) (1 character) UPC-A (default=A) (1 character) EAN/JAN/CAN-13 (default=F) (1 character) Codabar/NW-7 (default=D) (1 character) Code 39/Code 32 (default=G)
  • Page 14 Symbology Reading Control Symbology ID Trans., Readable Bar Code Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Symbology ID Transmission Disable symbology ID transmission Enable prefix symbology ID transmission Enable suffix symbology ID transmission Enable both prefix and suffix symbology ID transmission Readable Symbology Setting Automatic discrimination...
  • Page 15 Symbology Reading Control Code 39/Code 32 Setting PROGRAM M_DEFAULT Family Code Parameter Selection Option Code Selection Select Standard Code 39 as primary format Select Full ASCII Code 39 as primary format Code 39 Family Setting Select Code 32 (Italian Pharmaceutical) as primary format Disable start/stop symbol transmission Enable start/stop symbol transmission Disable Code 32 leading A transmission...
  • Page 16 Symbology Reading Control Codabar/NW-7 Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Select Codabar standard format Codabar Setting Select Codabar ABC format Select Codabar CLSI format Select Codabar CX format Disable start/stop symbol transmission Enable ABCD/ABCD start/stop symbol transmission Enable abcd/abcd start/stop symbol transmission Enable ABCD/TN*E start/stop symbol transmission Enable abcd/tn*e start/stop symbol transmission...
  • Page 17 Symbology Reading Control UPC-A & UPC-E Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Disable UPC-E expansion Enable UPC-E expansion UPC Family Setting Disable UPC standardization Enable UPC standardization Disable UPC numeric system Enable UPC numeric system Disable UPC-A check digit transmission Enable UPC-A check digit transmission Disable UPC-E check digit transmission Enable UPC-E check digit transmission...
  • Page 18 Symbology Reading Control UPC-A & UPC-E Setting Disable Disable Basic With 2-digit With 5-digit Enable Enable WPC Selection Check Numeric Length Addendum Addendum Standardization Expansion (UPC/EAN/JAN/CAN) Digit System UPC-A UPC-E EAN/JAN/CAN-13 EAN/JAN/CAN-8...
  • Page 19 Symbology Reading Control EAN/JAN/CAN & IATA Setting PROGRAM M_DEFAULT Parameter Selection Option Code Family Code Selection EAN/CAN/JAN Setting Disable EAN-8 expansion Enable EAN-8 expansion Disable EAN-13 check digit transmission Enable EAN-13 check digit transmission Disable EAN-8 check digit transmission Enable EAN-8 check digit transmission Disable ISBN/ISSN Conversion reading check Enable ISBN/ISSN Conversion reading check EAN/CAN/JAN Supplement Setting SS...
  • Page 20 Symbology Reading Control Code 25 Family & German Post Code Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Code 25 Setting Select any Code 25 Select Standard/Industrial 2 of 5 only Select Matrix 2 of 5 only Select Interleaved 2 of 5 only Select Interleaved 2 of 5 S Code only Select IATA only Select China Postal Code only...
  • Page 21 Symbology Reading Control Code 11 & Code 93 Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Code 11 Setting Select 1-check digit verification Select 2-check digit verification Disable check digit transmission Enable 1-check digit transmission Enable 2-check digit transmission Code 11 Min.Length Default (04) 01-Maximum...
  • Page 22 Symbology Reading Control MSI/Plessey, Code 128 & UCC/EAN 128 Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code MSI/Plessey Setting Select MOD 10 check digit Select MOD 10-10 check digit Select MOD 11-10 check digit Disable check digit transmission Enable 1-check digit transmission Enable 2-check digit transmission MSI/Plessey Min.
  • Page 23 Symbology Reading Control UK/Plessey & Telepen Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code UK/Plessey Setting Select UK/Plessey Standard Format Select UK/Plessey CLSI Format Disable Convert X to A-F Enable Convert X to A-F Disable check digit transmission Enable check digit transmission UK/Plessey Min.
  • Page 24 Symbology Reading Control GS1 DataBar Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code GS1 DataBar (RSS-14) Setting Disable GS1 DataBar (RSS-14) decoder Enable GS1 DataBar (RSS-14) decoder Disable limited GS1 DataBar (RSS-14) decoder Enable limited GS1 DataBar (RSS-14) decoder Disable expanded GS1 DataBar (RSS-14) decoder Enable expanded GS1 DataBar (RSS-14) decoder...

  • Page 25: Keyboard Interface Control

    Keyboard Interface Control Keyboard Layout (Language) Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Keyboard Laybout USA (QWERTY) France (AZERTY) Germany (QWERTZ) United Kingdom - UK (QWERTY) Canadian French (QWERTY) Spain (QWERTY) Sweden/Finland (QWERTY) Portugal (QWERTY) Norway (QWERTY) Latin America (QWERTY) Italy (QWERTY) Netherlands (QWERTY)
  • Page 26 Keyboard Interface Control Record Suffix, Preamble, Postamble & Caps Lock PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Record Suffix None RETURN SPACE ENTER (Numeric Key Pad) User defined character (1 character) 5, (00-7F) Preamble None 1-15 characters [00-7f], [FIN] Maximum 15-character input;...
  • Page 27 Keyboard Interface Control Delay Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Character Frame Control None 1-99 msec. (2 digits) Scan 2 digits from the option code chart in Appendix, then C70 will terminate this selection automatically. Intermessage Delay None 1-99 (x5) msec.
  • Page 28 Keyboard Interface Control Emulation Setting & Upper/Lower Case Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Function Key Emulation Enable ASCII 00-31 code as keyboard function code output Ctrl-Output Refer to Appendix – Keyboard Function Code Table for details. Key Pad Emulation Disable key pad emulation Enable numeric output as key pad (Num Lock On) output...

  • Page 29: Serial Interface Control

    Serial Interface Control Record Suffix, Preamble ,Postamble Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission Enable STX/ETX transmission STX/ETX are two characters used to indicate the starting and ending of the total data frame transmitted via serial interface.
  • Page 30 Serial Interface Control Delay Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Intermessage Delay None 1-99 (x5) msec. (2 digits) Scan 2 digits from the option code chart in Appendix, then DelfiScan will terminate this selection automatically. Intercharacter Delay None 1-99 (x5) msec.
  • Page 31 Serial Interface Control Protocol, Baud Rate, Data Frame & Time Out Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Handshaking Protocol None (free running mode) RTS/CTS (hardware handshaking) ACK/NAK (software handshaking) Xon/Xoff (software handshaking) Baud Rate (BPS) 38.4K BPS 2400 BPS 19.2K BPS 1200 BPS...

  • Page 32: Wand Emulation Control

    Wand Emulation Control Output Polarity, Signal State, Margin/Module  Time, etc. PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Output Polarity High level (5Vdc) on Bar (low level on Space) Low level (0Vdc) on Bar (high level on Space) Determine the output voltage level for both bar and space.

  • Page 33: Operation Control

    Operation Control Operation Control Operation Mode Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Low Power mode (Low Power triggering) Operation Mode Trigger mode/Serial mode (External triggering) Presentation mode (Auto detection) Alternative mode (Periodic power off) Flash mode (Pulse driven reading) Force mode (Continued power on) Toggle mode (Repeat reading) Diagnostic mode (Test reading)
  • Page 34 Operation Control Buzzer, Indicator, Vibrator, Inverse Reading, Dollar Sign PROGRAM M_DEFAULT Parameter Selection Option Code Buzzer Tone Adjust Buzzer tone - mute Buzzer tone - low Buzzer tone - medium Buzzer tone - high Buzzer tone - extremely high Good-read beep before data transmission Good-read beep after data transmission Power-on beep No power-on beep...
  • Page 35 Operation Control Pulse Driven Duty, Redundancy, Delay Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code 1/2 duty cycle Pulse Driven Duty 2/3 duty cycle 3/4 duty cycle 4/5 duty cycle Redundancy (Scan Voting) None 1 time 2 times 3 times 4 times 5 times...
  • Page 36 Operation Control Time-out Setting, Good Read Duration PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code Auto Power Off Duration Short Medium Long Extremely long Hands Free Time-out Short Medium Long Extremely long Good Read Duration Short Medium Long Extremely long The Auto Power Off Duration is a pre-defined power off time out counter for Automatic Mode.

  • Page 37: Condensed Datawizard

    Condensed DataWizard Preamble, Postamble, Data Length & Symbol ID Trans. PROGRAM M DEFAULT Family Code Selection Parameter Selection Option Code Preamble None 1-15 characters [00-7f], [FIN] Maximum 15-character input; scan “FIN” to terminate this selection. None Postamble 1-15 characters [00-7f], [FIN] Maximum 15-character input;...

  • Page 38: Appendix

    Condensed DataWizard Data Formatter Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Disable Formatter Control Select one bar code symbology automatic termination (2 digits) Select all bar code symbologies automatic termination Disable Insertion Enable [1-3 characters], [FIN] (2 digits) 2-digits identified position;...

  • Page 39: Appendix

    Condensed DataWizard Data Verifier Setting PROGRAM M_DEFAULT Option Family Code Selection Parameter Selection 2nd Option Code Code Verifier Control Disable Select one bar code symbology automatic termination (2 digits) Select all bar code symbologies automatic termination Identified Data Length Disable Enable (2 digits) Determine the identified data length for...

  • Page 40: Appendix

    Condensed DataWizard Data Replacer Setting PROGRAM M_DEFAULT Option Family Code Selection Parameter Selection 2nd Option Code Code Replacer Control Disable Select one bar code symbology automatic termination (2 digits) Select all bar code symbologies automatic termination Disable Replacement Enable [00-7F] (2 digits) 2-digits identified position;...
  • Page 41 Condensed DataWizard Data Organizer Setting PROGRAM M_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Disable Organizer Control Select one bar code symbology automatic termination (2 digits) Select all bar code symbologies automatic termination Disable Organization Enable 0 (Forward) (2 digits) 2-digits identified position;...

  • Page 42: Data Formatter

    Select a Bar Code Symbology Application Example You can select one or all types of bar code If your bar code label is a 16-digit Interleaved 2 of 5 symbologies to use Condensed DataWizard for which includes the information of 6-digit date code, 6- advanced transmission arrangement.

  • Page 43: Programming Procedure

    [Data Replacer] Programming Procedure Scan “Replacer Control” and set bar code symbology [Data Verifier] “08” Scan “Program” to enter the programming mode. Scan “1st Replacement” and set the identified Scan “Verifier Control” and set bar code symbology to “00” “41” position to , then replaced character to “08”...

  • Page 44: Keyboard Function Code Table

    Keyboard Function Code Table ANSI ASCII Key Function ANSI ASCII Key Function RESERVED CTRL (Left) ALT (Left) SHIFT CAPS LOCK NUM LOCK INS (Insert) (Edit) DEL (Delete) (Edit) BACK SPACE HOME (Edit) END (Edit) PAGE UP (Edit) PAGE DOWN (Edit) UP (Edit) ENTER (CR) DOWN (Edit)

  • Page 45: Ascii Input Shortcut

    ASCII Input Shortcut To configure the user definable parameters of DelfiScan via programming menu, DelfiScan will ask you to scan your desired ASCII value in HEX/ASCII Reference Table HEX form. You have to refer to the “HEX/ASCII Table” for details. Example: NUL DLE SPACE If you want the scanned data output leading with...

  • Page 46: Host Interface Quick Set / Operation Mode Quick Set

    Host Interface Quick Set PS/2 (DOS/V) Keyboard Wedge RS232 Serial Interface USB HID Interface Keyboard Replacement USB COM Interface Operation Mode Quick Set Lower Power Mode Force Mode Alternative Mode Trigger Mode Toggle Mode Flash Mode Presentation Mode Diagnostic Mode...
  • Page 47 Option Codes...

  • Page 48: System Commands

    System Commands PROGRAM System Information List (Enter Programming Mode) (SYSLIST) Save User Default FIN (Finish) Factory Default (M_DEFAULT) User Default PowerTool Host Link (Exit Programming Mode)
