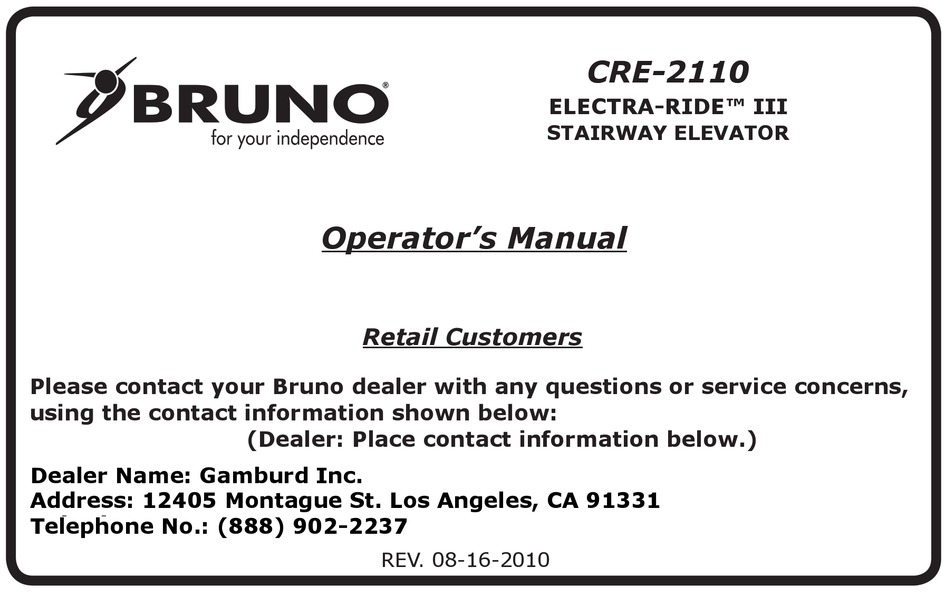

- Page 1 CRE-2110 ELECTRA-RIDE™ III STAIRWAY ELEVATOR Operator’s Manual Retail Customers Please contact your Bruno dealer with any questions or service concerns, using the contact information shown below: (Dealer: Place contact information below.) Dealer Name: Dealer Name: Gamburd Inc. Address: Address: 12405 Montague St. Los Angeles, CA 91331 Telephone No.:...
- Page 2 Bruno reserves the right to use information indicated on this form in its online, video, audio and printed Bruno dealer. materials. Names will be abbreviated to ensure the privacy and anonymity of the individual.
-
Page 3: Table Of Contents
Safety ........5-6 Parts of the CRE-2110 ......7 Circuit Breaker . - Page 4 400 lbs. (181 kg) Control: constant pressure (armrest and two remotes) Maximum Incline: 45 degrees Seat Swivel: 0, 60 and 90 degrees at top Power Supply: 24VDC battery charger powered by 120V outlet ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
-
Page 5: Safety
• Be certain the seat swivel is locked in place before attempting to get on or off the stairway elevator. • NON-AMBULATORY USERS: Bruno recommends carrying a cellular or cordless telephone or an emergency communication device when riding the stairway elevator while alone in the house. - Page 6 Your CRE-2110 is battery powered and will continue to operate for some time during a power outage. The length of operation will depend on the battery condition, the length of the stairs and the weight of the rider.
- Page 7 CRE-2110 armrest UP-DOWN rocker switch positioning belt swivel release handle footrest lever obstruction sensors ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
-
Page 8: Circuit Breaker
CIRCUIT BREAKER The CRE-2110 includes an ON/OFF switch with a built-in circuit breaker. The circuit breaker protects the battery, controller and motor circuits in the stairway elevator carriage. It is unlikely that this circuit breaker will trip during normal use. However, if the elevator becomes inoperative, check the circuit breaker as a first troubleshooting step. -
Page 9: Seating
SEATING The CRE-2110 seat assembly (with standard armrests) is designed to swivel a total of 135 degrees. It locks in the center (home) position, and in positions 60 and 90 degrees to the up side and 45 degrees to the down side. -
Page 10: Operation
A safety switch prevents operation of the CRE-2110 unless the seat is locked in position at right angles to the rail (the “riding” position). Depressing and holding the rocker switch will cause the 6. - Page 11 10. Release the seat swivel lever and allow the seat to lock in this position. 11. Unbuckle the positioning belt and carefully exit the seat. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
-
Page 12: Power Swivel Seat
6. To rotate the seat at the top landing, press the rocker switch again on the same side. 7. Release the rocker switch when you have fully rotated out. 8. Unbuckle the positioning belt and carefully exit the seat. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010... -
Page 13: Optional Mid-Park Position
3. Press again and hold until the unit arrives at the top or bottom of the rail. NOTE: The seat will again stop and beep once to indicate end of travel. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010... - Page 14 2. If the unit stops unexpectedly while traveling, check for obstructions or excessive loading. You will only be able to run the unit in the opposite direction until the overload is cleared. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
-
Page 15: Power Footrest
To restore normal footrest operation: ▫ Clear the jam. ▫ Move the seat up and down until the footrest moves again. ▫ If normal footrest operation is not restored, contact a Bruno Service Representative. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010... -
Page 16: Diagnostic Codes
Off Charge and Not Parked Parked and Charger Not Detected Battery Voltage Critical Battery Voltage Low Seat Safety Switch Open Up Limit Switch Open Down Limit Switch Open Mid-Rail Park Active Soft Stop Switch ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010... -
Page 17: Charging
Using the transmitter, call it back to the other end of the stairs when needed. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010... - Page 18 LED occasionally turns BLINKS BLINKS low voltage indication ALTERNATELY ALTERNATELY BLINKS BLINKS battery defective or ALTERNATELY ALTERNATELY heavily sulfated FAST BLINK partially open circuit; bad contact or battery sulfation ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
- Page 19 3. Twist the fuseholder cap and pull out to charger power switch remove the fuse. 4. Replace with the same size and type fuse: (Bussmann GMD-2A or equivalent) 2A, Slo-Blow, 5 x 20mm. ©2010,2009 Bruno Independent Living Aids, Inc.® CRE-2110 Operator 08-16-2010...
- Page 20 MAINTENANCE Your CRE-2110 is designed to provide many years of reliable service with minimal maintenance. For best service life: • Keep the rail channel clean and free of debris. • Always park the carriage at one end of the rail so that the batteries charge when the elevator is not in use.
-
Page 21: Troubleshooting
TROUBLESHOOTING Your CRE-2110 is not operating correctly. What should you do? Before calling your Bruno dealer, refer to the solutions listed below. This could save you an unnecessary service call! • Seat swivel. Is the seat locked in the riding position? •... -
Page 22: Battery Charger
• Visual check. Do you notice anything about your elevator that is different or out of place? If your CRE-2110 continues to function improperly or not at all after completing the preceding checklist, contact an authorized Bruno dealer to perform all required service, repair and maintenance operations. -
Page 23: Vacation And Long-Term Storage
VACATION AND LONG-TERM STORAGE If the CRE-2110 will remain unused for an extended period of time, turn off the circuit breaker, then unplug the battery charger from the wall outlet. NOTE: The batteries may require recharging before normal use if the stairway elevator remained unused for an extended period of time. -
Page 24: Warranty
The exclusive remedy for a defect in a Bruno Stairlift shall be the repair or replacement, at the option of Bruno, of the defective part or component. After the first 30 days of this war- ranty, only parts and components are covered. This warranty does not cover labor and other services after the initial 30 days. - Page 25 Bruno, damage in shipment, or repairs undertaken by anyone other than Bruno factory employees or authorized distributors. The “original purchaser” of a Bruno Stairlift that is leased or rented shall be the person or entity acting as the lessee or rental provider.
- Page 28 262-567-4990 • FAX: 262-953-5501 ©2009 Bruno Independent Living Aids, Inc. ® All illustrations and specifications in this brochure are based on the latest product information available at the time of publication. Bruno Independent Living Aids, Inc . reserves the right to make changes at any time without notice. Manual Back Cover 7/09-2.
Need help?
Do you have a question about the CRE-2110 and is the answer not in the manual?
Questions and answers
Does the CRE-2110 have a manual release? If so please tell me where it is on the unit. I need to move it manually to bottom of track as it's not working and in the way now. Thanks!
Yes, the Bruno CRE-2110 has a manual swivel release. It is located under the seat on either side.
This answer is automatically generated
C4,L2,L6,L8
