Summary of Contents for Lite-Puter DX-610

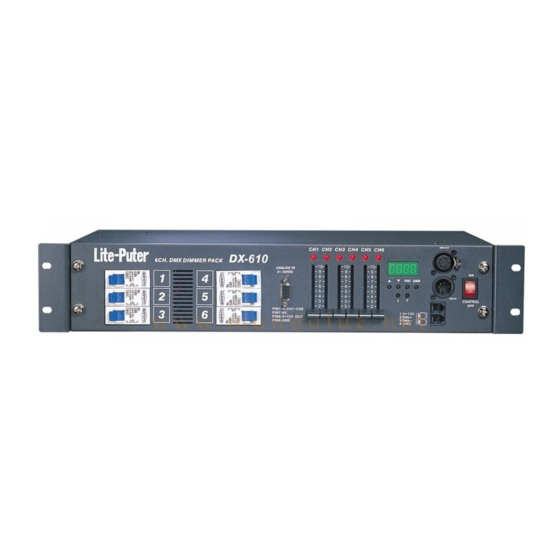

- Page 1 ISO 9001 CERTIFIED DX-610/DX-626 6CH.DMX DIMMER PACK User Manual Lite Puter Enterprise Co., Ltd. Website: www.liteputer.com.tw E-mail sales@liteputer.com.tw Lite-Puter DX-610/626 [EUM-I]...
-
Page 2: Table Of Contents
2 - 5 Channel output status preview ............7 2 - 6 Manual dimming ..................7 2 - 7 Display the dimming value of DMX channel, internal temperature..........................7 2 - 8 DMX status & DMX address ..............8 2 - 9 Protocol control ..................8 Guarantee ......................……9 Lite-Puter DX-610/626 [EUM-I]... -
Page 3: Safety Introduction
Please refer to the data we suggested to ensure the normal total working hours of DX-610/DX-626 If DX-610/DX-626 is installed in a rack, please make sure the rack is airy. Otherwise the machine will become over-heat and result in the mis-function. -
Page 4: Chapter 1. Introduction
1-3 Specification Power AC 90-240V, 45-63Hz, 3Ø4W, 1Ø2W Output DX-610: Maximal output is 10A each channel DX-626: Maximal output is 20A each channel (Please refer to the user manual) DMX signal output/ input DMX512/ 1990 DMX signal connector... -
Page 5: Front Panel
(13) Power input terminal board. (10) DMX IN (XLR-3 pin) (DX-610: 20A Single phase; y y y y y y DX-626: 40A Single phase) (11) DMX OUT (XLR-3 pin) Lite-Puter DX-610/626 [EUM- ]... -
Page 6: Wiring Diagram
ISO 9001 CERTIFIED AMERICAN TYPE Output sockets (DX-610: 10A each channel; DX-626: 15A each channel, external power no fuse breaker is necessary when mounting.) SCHUKO TYPE Output sockets (DX-610: 10A each channel; DX-626: 16A each channel, external power no fuse breaker is necessary when mounting.) 1-6 Wiring Diagram PS.: There are ‘3 PHASES 3 WIRES’... -
Page 7: Chapter 2. Operation
STEP-1 press DMX key into DMX status. STEP-2 press and hold the FNC key for 3 sec. Default settingFAll channel are dimming mode STEP-3 press FNC key to select channel. STEP-4 press ▲ or ▼ to select dimming mode or switching mode. Lite-Puter DX-610/626 [EUM- ]... -
Page 8: Warm Up Setting (0
When there is another signal inputting from a console, it will take the higher value as the output. 2 - 7 Display The Dimming Value of DMX Channel,Internal Temperature. Press L to display the dimming value of DMX channel. Press T to display the internal temperature. Lite-Puter ¡ DX-610/626 [EUM-... -
Page 9: Dmx Status & Dmx Address
When the protocol control turn on, it only receive the DMX signal whose break width range from 88us to 230us. STEP-1 Press FNC and LED displays as below. STEP-2 Press and LED displays as below, Protocol control is ON. STEP-3 Press and LED displays as below, Protocol control is OFF. Lite-Puter ¡ DX-610/626 [EUM-... -
Page 10: Guarantee
ISO 9001 CERTIFIED Guarantee 1. Lite-Puter is only responsible for DX-610/DX-626 itself. 2. Lite-Puter guarantees to keep Lite-Puter’s fault products caused by techniques, materials and any other logical reasons in good repair for free within a year since the distributing date. - Page 11 Zip Code: 22103 Tel: +886-2-86472828 Fax: +886-2-86472727 Website: www.liteputer.com.tw E-mail: sales@liteputer.com.tw Shanghai Factory: Lite-Puter Technology (Shanghai) Co., Ltd. Address: Building B5, No. 298, Lane 3509, Hongmei S. Road, Shanghai, China Zip Code: 201108 Tel: +86-21-54408210 Fax: +86-21-64978079 Shanghai Sales Center: Address: Room 701, Building Gem, No.
