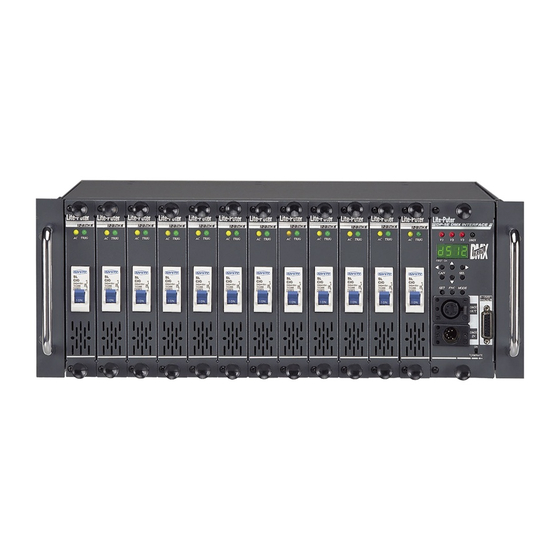

Lite-Puter DX-1210 User Manual

12/6 channel modular dimmer pack
Hide thumbs
Table of Contents

Advertisement

Quick Links

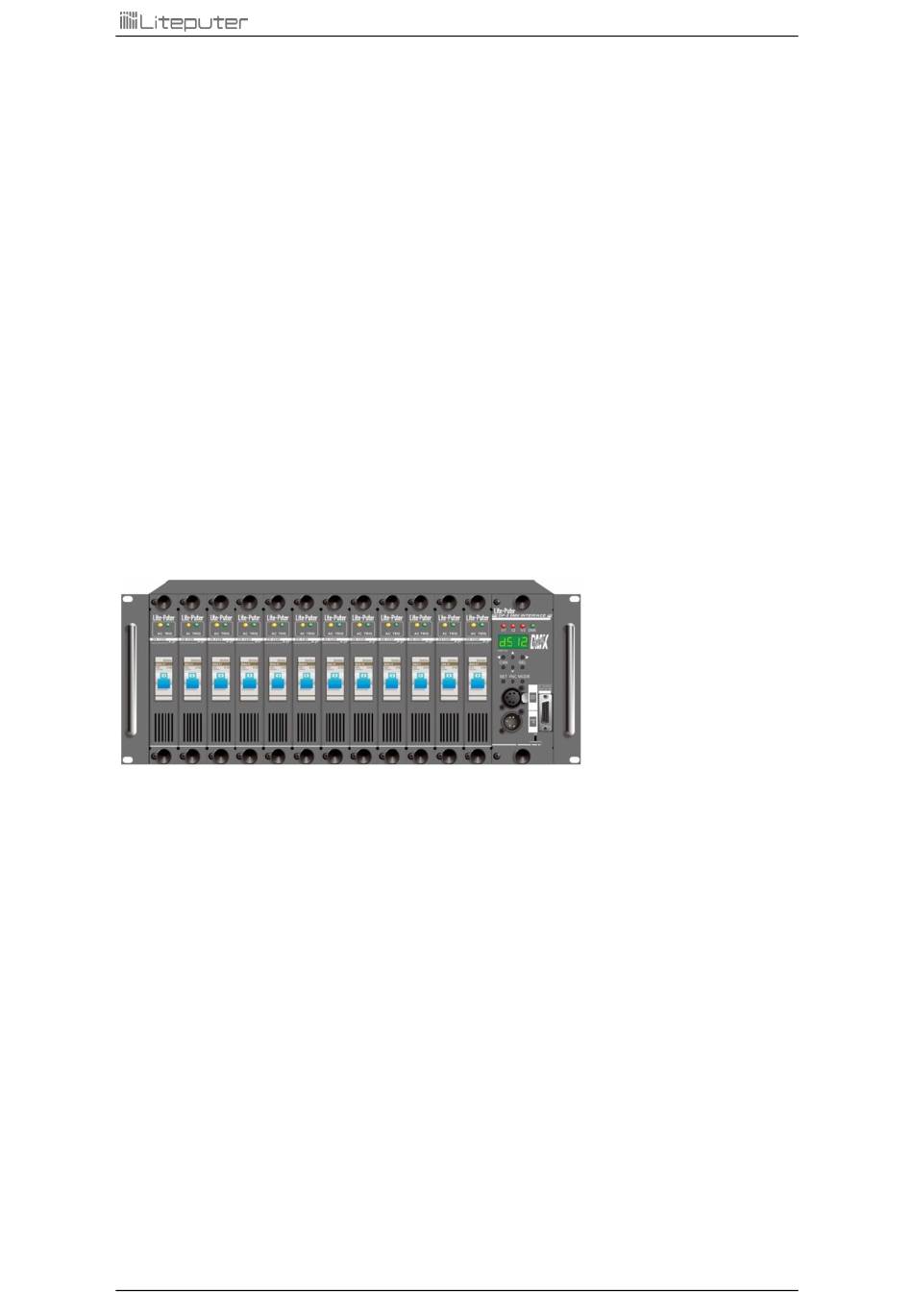

User Manual
DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230
DX-630/DX-640
12/6 Channel Modular Dimmer Pack
www.m-s-v.eu
DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-1210 and is the answer not in the manual?

Questions and answers

Related Manuals for Lite-Puter DX-1210

Summary of Contents for Lite-Puter DX-1210

  • Page 1 User Manual DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230 DX-630/DX-640 12/6 Channel Modular Dimmer Pack www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 2: Table Of Contents

    ETS OF ERIES 4-4 L ..........................15 NLOCK 4-5 FUN (FUNCTION) ........................... 15 4-6 SET F ..........................17 UNCTIONS 4-7 S )....................23 PECIFICATIONS OF PTIONAL 4-8 W DX-1210/1210T/1220/1220AF/1230/630/640 ..........24 IRING DIAGRAM OF LIMITED WARRANTY ........................26 www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 3: The Regulation Of Safe Usage

    (3) Maximum Capacity-1: For testing (about 30 minutes) DX-1210/DX-1210T: Maximum output of individual channel is 10A; DX-1220/DX-1220AF: Maximum output of individual channel is 25A; DX-1230: Maximum output of individual channel is 30A: For testing (about 10 minutes) DX-630: Maximum output of individual channel is 30A;...

  • Page 4: Introductions

    Maximum wattage limit setting. Each output can be set warm-up from 0 to 6.0% to protect lamps. Built-in MCB on each output. Thermal-controlled fan Built-in active anti-flicker circuit, minimizing the shimmering issue on LED lamps (only applicable to DX-1220AF, DX-1210T) www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 5: Specifications

    Input: AC100-240, 45-63Hz, 3 phase 4 wire or single phase 3 wire Output: DX-1210: Leading-edge dimming output, 10A MAX output per channel DX-1220/DX-1220AF: Leading-edge dimming output, 20A MAX output per channel DX-1230: Leading-edge dimming output, 30A MAX output per channel...

  • Page 6: Structure

    EN 61000-4-11 ENV 50141 2-3 Structure Magnetic Circuit Breaker (M.C.B) DX-1210: 10A M.C.B on each module (P-10) DX-1210T: 10A M.C.B on each module (P-10T) DX-1220/DX-1220AF: 25A M.C.B on each module (P-27/P-27AF) DX-1230: 30A M.C.B on each module (P-30) DX-630: 32A M.C.B on each module (P-30A) DX-640: 40A M.C.B on each module (P-40A)

  • Page 7: Dimensions

    2-4 Dimensions www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 8: Installation And Function Introduction

    3 Installation and function introduction 3-1 Installation DX-1210 is composed of 12 pieces of P-10. DX-1210T is composed of 12 pieces of P-10T. DX-1220/DX-1220AF is composed of 12 pieces of P-27/P-27AF. DX-1230 is composed of 12 pieces of P-30. DX-630 is composed of 6 pieces of P-30A.

  • Page 9: P-10/P-10T/P-27/P-27Af/P-30/P-30A/P-40A

    3-2 P-10/P-10T/P-27/P-27AF/P-30/P-30A/P-40A P-10/P-10T/P-27/P-27AF/P-30 (Dimming Module) P-30A/P-40A (Dimming Module) (1) UNLOCK / LOCK KNOB: PULL-UNLOCK, PUSH-LOCK. (2) AC OUTPUT INDICATOR. (3) TRIG INDICATOR. (4) 25A MAGNETIC CIRCUIT BREAKER. (5) VENTILATOR www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 10 (14) ▼BUTTON (15) SET / SETTING BUTTON (16) FUNCTION BUTTON (17) MODE BUTTON (18) 5 PIN DMX "OUT" CONNECTOR (19) 5 PIN DMX "IN" CONNECTOR ANALOG"IN"CONNECTOR(0-10VDC) (20) (21) TERMINATE SWITCH (22) UNLOCK / LOCK KNOB: PULL-UNLOCK / PUSH-LOCK www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 11: Connection Of Dmx & Analog

    PIN 1 ~ 12: CH-1 ~ CH-12 PIN 13: NC PIN 14: DC+12V / 100mA PIN 15: GND 3-4-2 DMX-512 Connector PIN 1: GND PIN 2: DATA - PIN 3: DATA + PIN 4: NC PIN 5: NC www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 12: Rear Panel

    3-5 Rear Panel (23) AC Main power input terminal (3 phase 4 wire) (24) Thermal-controlled fans (25) Load output terminal www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 13: Operations

    2. Analog mode 3. OFF mode 4-1-1 DMX Mode In DMX mode, DX-1210/1220/1220AF/1230/630/640 will accept DMX-512 signal input or analog 0 - 10VDC signal. Press "MODE" key to choose DMX mode, the LED will display the selected address of DMX as follows, and then press "SEL"...

  • Page 14: Dmx Address Setting

    Led display from d 0 0 1 to d 0 0 2. Press【◄】: Decrease channel number e.g.: Led display from d 0 0 2 to d 0 0 1. Press【▲】 DX-1210/1210T/1220/1220AF/1230 increases 12 channel number。 ： e.g. d 0 0 1 becomes d 0 1 3 DX-630/640 increases 6 channel number。...

  • Page 15: Lock/Unlock

    4-5-1 Display Dimming Level .. Channel Number Dimming Level 00 - FL(100%) Press【►】: Increase 1 channel. e.g.: Led display from 0 1.0.0 to 0 2.0.0 Press【◄】: Decrease 1 channel. e.g.: Led display from 0 2.0.0 to 0 1.0.0 www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 16 Please turn off DMX signal input and analog signal input before using this function. ....  Auto fade in/fade out All channels Press【►】: Auto fade one channel - Increase channel. Press【◄】: Auto fade one channel - decrease channel. Press【SEL】: Confirm Press【CAN】: Return www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 17: Set Functions

    Press【►】: Increase channel. Press【◄】: Decrease channel. Press【▲】: Increase dimmer- warm up value. Press【▼】: Decrease dimmer- warm up value.. Press【CAN】: Return Warm-up function of a channel will be invalid if the channel is set to switch mode (non-dim) . www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 18 All channels are in dimming mode.  All channels are in switch mode.  Some channels are dimming; some channels are switch.  Press【►】: Increase channel number Press【◄】: Decrease channel number Press【▲】: Switch (non-dim); Press【▼】: Dimming Press【SEL】: Select/confirm www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 19 A : 10th channel B : 11th channel C : 12th channel Press【►】: Increase channel number Press【◄】: Decrease channel number Press【▲】: Increase fade time Press【▼】: Decrease a time Press【SEL】: Select/confirm Please check the fade time code in 4-6-4 www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 20 04'28 9E 11'59 09'59 BE 18'47 15'39 DE 25'35 21'19 FE 32'23 26'59 1F 01'19 01'06 3F 02'41 02'14 5F 04'02 03'22 7F 05'24 04'30 9F 12'12 10'10 BF 19'00 15'50 DF 25'48 21'30 FF 32'36 27'10 www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 21 4-6-5 Dimming Curves Square law dimming curve: C2  Linear dimming curve: C3  Press【▲】: Change dimming curve Press【▼】: Change dimming curve Press【SEL】: Select/confirm www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 22 8 : 8th channel 9 : 9th channel A : 10th channel B : 11th channel C : 12th channel Press【►】: Increase channel number Press【◄】: Decrease channels number Press【▲】: Increase percentage of wattage Press【▼】: Decrease percentage of wattage. Press【SEL】: Select/confirm www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 23: Specifications Of Plug (Optional)

    4-7 Specifications of Plug (Optional) SOCKET TYPE : GERMAN (SCHUKO) SOCKET TYPE : UK SOCKET TYPE :FRENCH SOCKET TYPE : SOCAPEX 19 PIN SOCKET TYPE : USA SOCKET TYPE : AUSTRALIA SOCKET TYPE: CEE SOCKET TYPE: GERMAN (SCHUKO WITH COVER) www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 24: Wiring Diagram Of Dx-1210/1210T/1220/1220Af/1230/630/640

    4-8 Wiring diagram of DX-1210/1210T/1220/1220AF/1230/630/640 www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...
  • Page 25 Recommended Wiring (3 Phase 4 Wire) www.m-s-v.eu DX-1210/DX-1210T/DX-1220/DX-1220AF/DX-1230/DX-630/DX-640 [EUM-O]...

  • Page 26: Limited Warranty

    Other Lite-Puter or non-Lite-Puter products or devices offered, packaged, or sold with the product. 5. Lite-Puter does not warrant that the product will operate without interruption or free of error. World Headquarters：...
