Lite-Puter EDX-607A User Manual

6 channel integrated dimmer pack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

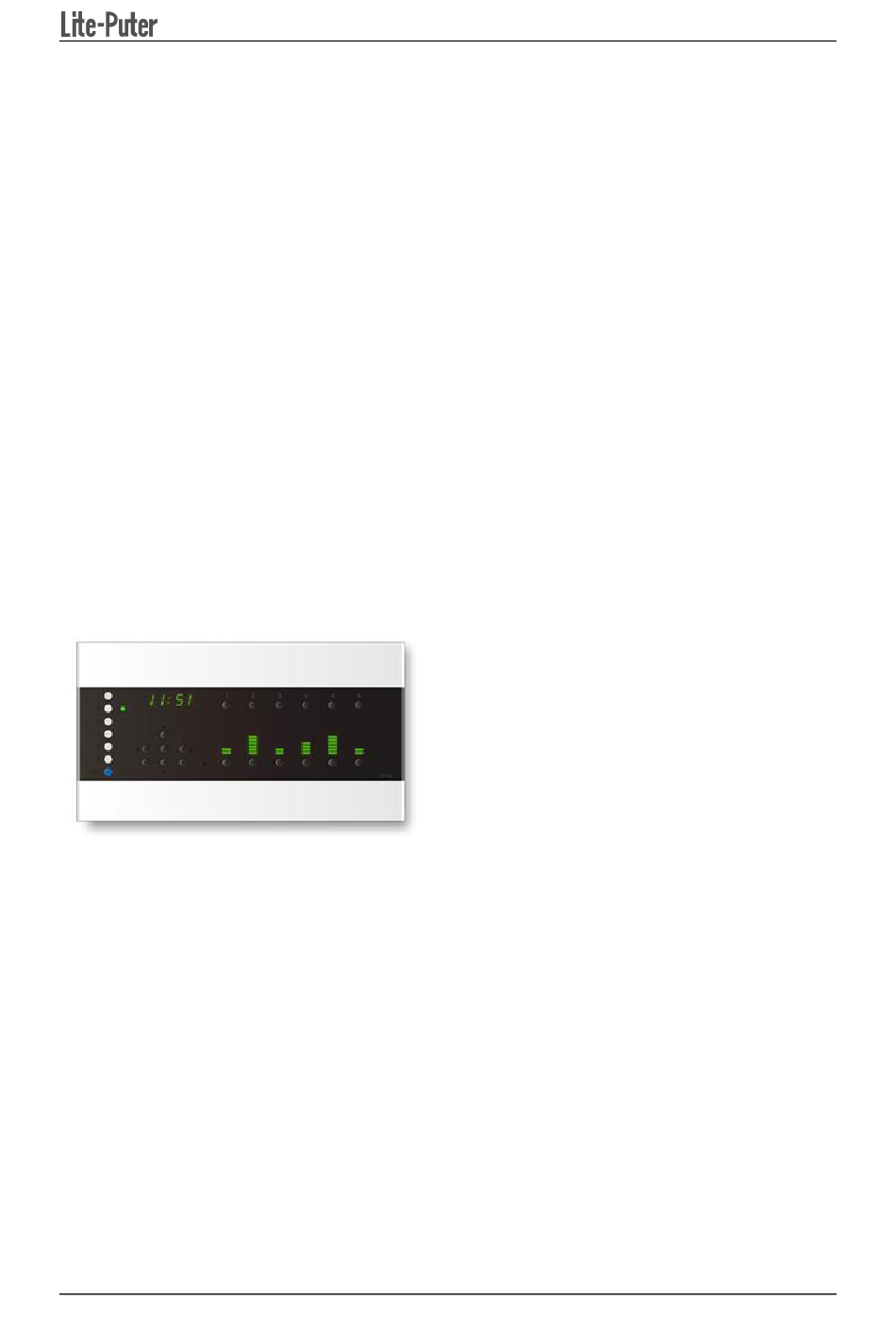

User Manual
EDX-607A
6 Channel Integrated Dimmer Pack
EDX-607A [EUM-G]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDX-607A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lite-Puter EDX-607A

Summary of Contents for Lite-Puter EDX-607A

  • Page 1 User Manual EDX-607A 6 Channel Integrated Dimmer Pack EDX-607A [EUM-G]...

  • Page 2: Table Of Contents

    URVE ETTING 2-20 E ..................30 NABLE ISABLE ARTITION UNCTION 2-21 C ......................31 HECK OFTWARE ERSION 2-22 E IR R ..................31 NABLE ISABLE EMOTE ONTROL 2-23 E SC5/6 O ..............32 NABLE ISABLE VERLAP CENE UNCTION EDX-607A [EUM-G]...
  • Page 3 2-24 C ......................32 LOCK YNCHRONIZATION LIMITED WARRANTY .......................... 33 EDX-607A [EUM-G]...

  • Page 4: Before Installation

    3. Instruction of power/ load wiring: Connector size range AWG 22-14 Use Copper Conductors Only, 60/75C, Tighten To 12 pound-inches. 4. Suggested Environment: Ambience Temperature: under 35°C Humidity: 40% ~ 80% 5. About wiring: Please check EDX/DMX-512 wiring guide on Lite-Puter’s website: http://www.liteputer.com.tw/tech_guide.asp EDX-607A [EUM-G]...

  • Page 5: Introductions

    . If total current is over 20A, it will limit the output to 12A and press any button to restart the system. 10. Can be connected to scene control panels (ECP series). 11. Lock/unlock. EDX-607A [EUM-G]...

  • Page 6: Specifications

    Output: 4A per channel, total 8A . Leading edge (forward phase) dimming control.  Protocol: DMX-512/ EDX (RS-485)  Dimension: 212 (W) x 118 (H) x 60 (D)mm  Weight: 0.88 KG  Fuse：PCB No.: QB18B F1 (Resistive fuse 20A, 250V) F2 (Resistive fuse 1A, 250V) F3 (Resettable fuse) EDX-607A [EUM-G]...

  • Page 7: Wiring Diagram

    1-3 Wiring Diagram EDX-607A [EUM-G]...

  • Page 8: Installation

    1. Please refer chapter 2-10 to set switch mode before connecting no-dimmable lamps. Non-dimmable lamps might be damaged by dimming mode. 2. Please make sure the ambience temperature is under 40°C. 3. Please ensure that wall-mounted area has at least 75mm in depth. EDX-607A [EUM-G]...
  • Page 9 EDX-607A [EUM-G]...
  • Page 10 EDX-607A [EUM-G]...

  • Page 11: Panel Introduction

    1-5 Panel Introduction Scene buttons IR receiver Channel dimming value display or other function Function buttons dimming value UP CH1- CH12 dimming value DOWN CH1- CH12 EDX-607A [EUM-G]...

  • Page 12: Operations

    For example, EDX devices configured as zone 1 can be controlled (recall scenes) by ECP panel configure as zone 1. EDX devices configured as zone 5 can be controlled (recall scenes) by ECP panel configure as zone 5. Figure 1: One EDX device with one ECP scene panel EDX-607A [EUM-G]...
  • Page 13 Figure 2: Multiple EDX devices with ECP scene panels ECP scene panel 1 controls EDX device 1. ECP scene panel 2 controls EDX device 2. * If there are both DMX-512 and EDX signal present, DMX-512 signal has the highest priority. EDX-607A [EUM-G]...

  • Page 14: Functions

    Channel non-dimming/switch mode setting 【FCN】+【CH1_UP】 Channel fluorescent mode setting 【FCN】+【CH2_DOWN】 View and set the timer 【FCN】+【CH3_DOWN】 Display system temperature 【FCN】+【CH4_DOWN】 Display the load current 【FCN】+【CH5_DOWN】 Display the panel LED on /off 【FCN】+【CH6_DOWN】 Select dimming curve Partition setting Partition function on/off EDX-607A [EUM-G]...

  • Page 15: Initialization

    】 or 【 】 , DMX ADR (DMX address) will increase or decrease 10 addresses at one time. Press【】 or【】, DMX ADR will increase or decrease 1 address at one time. STEP-3: After setting, press【ENTER】 to save and exit. EDX-607A [EUM-G]...

  • Page 16: Zone Setting

    】once, the two digits on the left side are blinking, it will display, 2. Press【 ▲ 】twice, it will display, 3.Press【 4. Press【】once, The two digits on the right side are blinking, it will display, ▲ 】once, it will display, 5. Press【 6. Press【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 17: Partition Setting

    STEP-3: Hold【FCN】for 3 seconds to enter function menu and then press【FCN】12 times until the screen shows STEP-4: Press【】or【】to select partition no. and press【CH1- CH12 UP】 to select channels to partition; press【CH1- CH12 DOWN】to cancel channels out of partition. STEP-5: Press【ENTER】to save and exit. EDX-607A [EUM-G]...
  • Page 18 . The LED bars of channel 1 ~ 6 show all of them are in partition 1. Press【SHIFT】to check channel 7 ~ 12, the LED bar of each channel shows that channel 7 – 12 belong to partition 1. EDX-607A [EUM-G]...
  • Page 19 Press【SHIFT】shift back to channel 1 ~ 6. Press【CH1_DOWN】to remove channel 1 from partition. LED bar of channel 1 is blank. Press【】to shift to partition 2. By default, no channel belongs to partition 2 EDX-607A [EUM-G]...
  • Page 20 Press【CH1_UP】to set channel 1 to partition 2, the LED bar shows that channel 1 is in partition 2 now. Press【】once to shift to partition 3. By default, no channel belongs to partition 3 Press【SHIFT】 shift to channel 7 ~ 12. EDX-607A [EUM-G]...
  • Page 21 8. Press【CH10_UP】 to set channel 10 to partition 3. (Channel 10 is in partition 1 and 3 simultaneously) 9. Press【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 22: Id Number Setting

    Press 【ENTER】, it will display, Press【】2 times to select scene 2 as ▲ ▲ 】 4 times or hold【 】 to set fade time to 5 seconds as Press【 Press【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 23: System Clock Setting

    【 FCN】 + 【CH6_UP】 at the same time, the screen will display timer status as ▲ ▼ 】 to turn on timer ;press【 】to turn it off. STEP-2: Press【 STEP-3: Press【ENTER】 to save and exit. EDX-607A [EUM-G]...

  • Page 24: Dimming /Switch /Fluorescent Mode Setting

    4.Press 【SHIFT】shift to channel 7 to12, the screen will display ▼ 5.Press 【CH10_DOWN】 or press 【】 or 【 】 to select channel 10 and then press 【 】 to set channel 10 as switch mode 6.Press【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 25: Display System Temperature

    55°C ; when it over 65°C, EDX-607 will stop output immediately. 2-12 Display Current Load Hold【FCN】for 3 seconds to enter function menu and then press【FCN】9 times to select the function or press【FCN】+【CH4_DOWN】at the same time, the screen will display the current of present load. Press【ENTER】to exit. EDX-607A [EUM-G]...

  • Page 26: Set Timer

    Select the record number need to edit. Press 【ENTER】 to edit the current record. The following steps are the same as adding record. 2-13-3. Delete Timer ▼ Select the record number and press 【 】for 3 seconds to delete the record. The screen will show as below, it means the record was deleted. EDX-607A [EUM-G]...

  • Page 27: Scene Setting

    The dimming values also showed on the LED bar. Hold a scene button for 3 seconds to save current scene. To save scene 7 to scene 12 is to press【SHIFT】+ scene button for 3 seconds. EDX-607A [EUM-G]...

  • Page 28: Scene Recall

    4.Hold【DOWN】 button of current channel, and then press【UP】the current channel’ dimming value will be 0% at once. Repeat it, the dimming value of the current channel will be 100% at once. 5.Hold【UP】 then press【DOWN】has the same function as step 4. EDX-607A [EUM-G]...

  • Page 29: Panel Led On/Off Setting

    ▲ ▼ 】to turn on LED or press【 】to turn it off. STEP-2: Then press【 STEP-3: Press【ENTER】 to save and exit. Note: After turn off the LED screen, it will be turned on again if press any button. EDX-607A [EUM-G]...

  • Page 30: Dimming Curve Setting

    STEP-3: Press【ENTER】to save and exit. 2-20 Enable/Disable Partition Function STEP-1: Hold【FCN】for 3 seconds to enter function menu and then press 【FCN】until the screen shows ▲ ▼ 】to turn on partition function，press【 】to turn it off. STEP-2: Press【 STEP-3: Press【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 31: Check Software Version

    ▼ STEP-2: Press 【 】 to turn on IR remote control( EDX-607 under the IR remote control)or press 【 】 to turn IR the control（EDX-607 out of IR remote control）. STEP-3: After setting, press 【ENTER】to save and exit. EDX-607A [EUM-G]...

  • Page 32: Enable/Disable Sc5/6 Overlap Scene Function

    】 to enable clock to enable clock synchronization, the screen shows ； STEP-2: Press【 ▼ press 【 】 to disable clock synchronization，the screen shows ；press 【ENTER】 to return. If clock synchronization is enabled, all EDX-607s in the same zone will be synchronized at 12:00 every day. EDX-607A [EUM-G]...
  • Page 33 Lite-Puter guarantees repairing any material or manufacturing defects. The Exclusion： 1. Any damage or fault caused by improper usage, accident and disaster affirmed by Lite-Puter, includes but not limited to: Not operated according to the National electrical safety requirements...
  • Page 34 World Headquarters： Lite-Puter Enterprise Co., Ltd. Address: 11F, No. 189, Gangqian Rd., Neihu Dist., Taipei City 11494, Taiwan. Tel: +886-2-27998099 Fax: +886-2-27993828 Website: www.liteputer.com.tw E-mail: sales@liteputer.com.tw Shanghai Factory： Lite-Puter Technology（Shanghai）Co.,Ltd. Address: No. 375, Xingmei Rd., Minhang Dist., Shanghai 200237, China...
