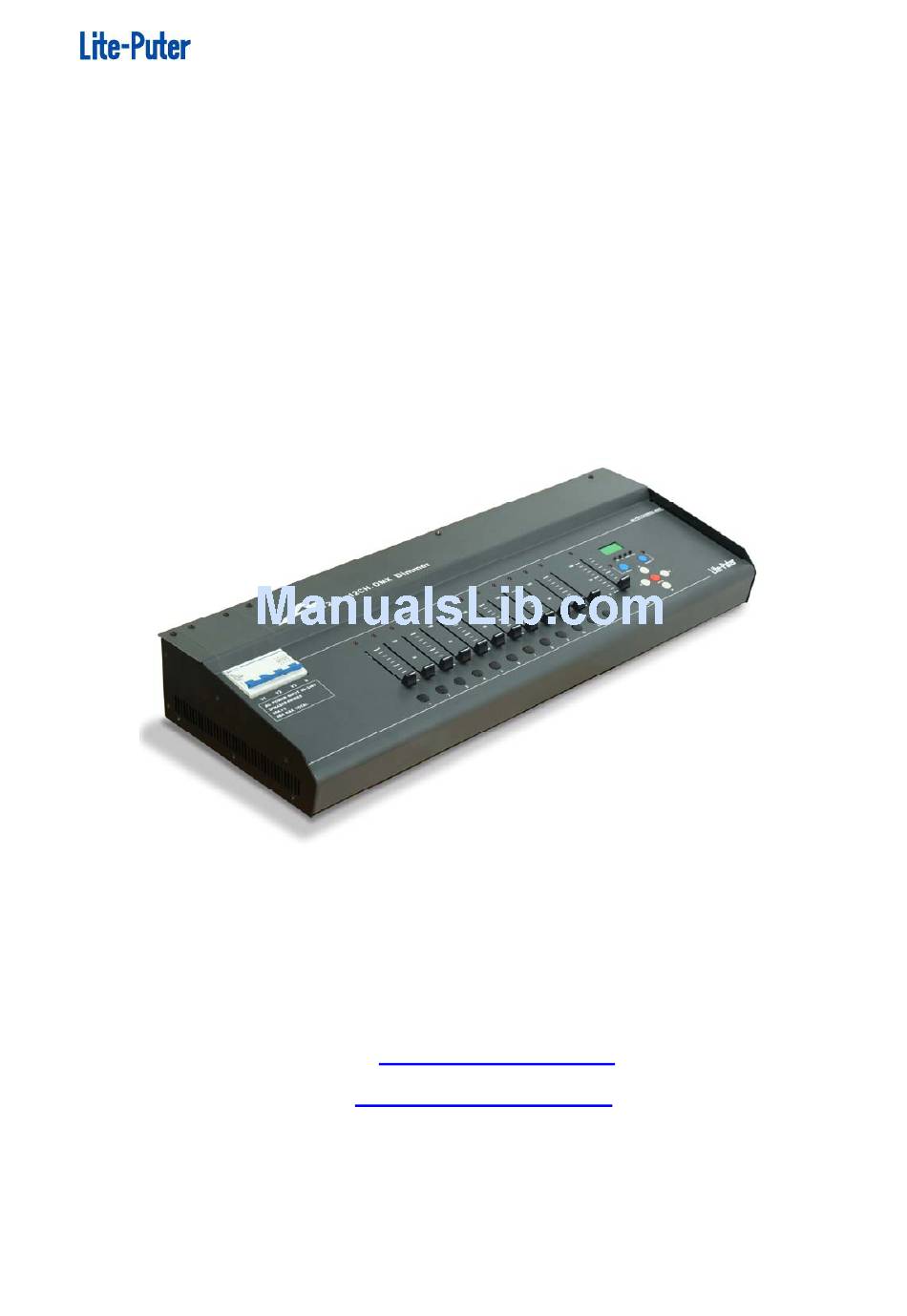

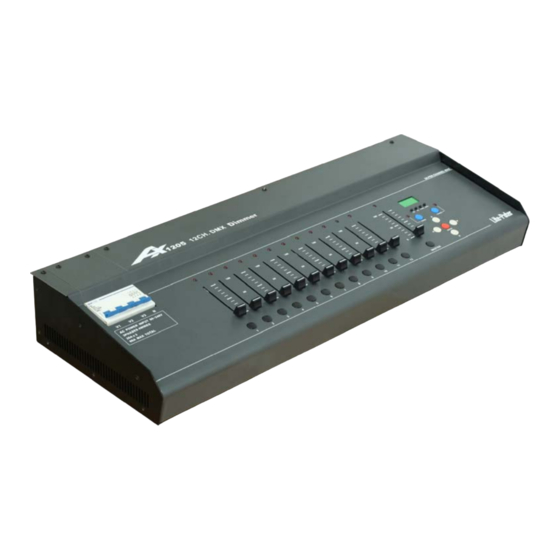

- Page 1 ISO 9001 CERTIFIED www.liteputer.com.tw AX-1205 12 Channel DMX Dimmer 【User Manual】 Lite-Puter Enterprise Co., Ltd. Website：www.liteputer.com.tw Email：sales@liteputer.com.tw Lite-Puter AX-1205[CUM-C]...
-
Page 2: Table Of Contents
2-12-4. Back scene setting in channel chase....................13 2-13 S ..........................14 CENE HASE 2-13-1. Scene Chase without Fade-in/Fade-out..................14 2-13-2. Scene Chase with Fade-in/Fade-out....................14 2-13-3. Audio Control Chase ........................14 2-13-4. Back Scene Setting in Scene Chase ....................15 Lite-Puter AX-1205[CUM-C]... -
Page 3: Chapter One Introduction
● Can save and recall 12 scenes. ● Channel and scene chase function. 1-2 Specification ● Power Supply：3φ4W, AC 90-240V, 50/60Hz ● Protocol：DMX-512 ● Signal Output Channel：12 channels ● Signal Connector：XLR 5 PIN ● Dimension：672(W)×100(H)×250(D)m m ● Weight： 7.2 kg Lite-Puter AX-1205 [CUM-C]... -
Page 4: Chapter Two Operation
Chase signal indicator 1-12 channel FLASH button Function button channel mode scene mode function selection DMX IN / DMX OUT selection audio control chase selection AUDIO chase selection CHASE confirm button ENTER aid button ▲▼◄► AC POWER INPUT 90─240V Lite-Puter AX-1205[CUM-C]... -
Page 5: Memory Initialization
Hold DMX to shift between DMX IN and DMX OUT.When LED displays C.0.0.1, press ENTER to confirm DMX OUT function and LED will display, Now AX-1205 becomes a console to send DMX signal out to dimmer. VR1 stands for CH001，VR2 stands for CH002 VR12 stands for CH012．... -
Page 6: Dmx In Function
STEP-1 Hold DMX till LED display d.0.0.1．Press ENTER to confirm DMX IN function and LED will display, Now AX-1205 becomes a dimmer to receive DMX IN signal. STEP-2 In DMX IN status,press ◄，►，▲，▼ to adjust start channel address and LED will display, ◄... -
Page 7: Channel Dimming/Non-Dimmming Mode Setting
If a channel set as non-dimming mode, when the dimming value higher than 50%, it will switch on at 100%; when the dimming value lower than 20%, it will switch off. 2-7 Channel Dimming Value Check STEP-1 Hold FNC till LED display, Lite-Puter AX-1205[CUM-C]... -
Page 8: Dot On Screen Introduction
It means the 1 st channel’s dimming value is zero. AX-1205 has atuo channel ouput monitor function. (Enter this function, AX-1205 will automatically display the channel’s dimming value if it changes) . STEP-2 If the 2 nd channel’s dimming value changes, the LED will automatically display the value. -
Page 9: Channel Mode
2-11 Scene Save and Recall Scene save: At DMX IN or DMX OUT function, adjust the VR to change channels’ dimming value, hold ENTER and then press the 1-12 button below VR1 ~ 12 to save current dimming value to the scene. Lite-Puter AX-1205[CUM-C]... -
Page 10: Channel Chase
STEP-1 In channel mode, press CHASE to enter channel chase mode and LED will display, P stands for chase, 02 stands for chase mode No. (AX-1205 has 15 build-in channel chase modes, each of which has two opposite types. Please check the graph as below, ●... - Page 11 ISO 9001 CERTIFIED www.liteputer.com.tw Lite-Puter AX-1205[CUM-C]...
- Page 12 ISO 9001 CERTIFIED www.liteputer.com.tw Lite-Puter AX-1205[CUM-C]...
- Page 13 ISO 9001 CERTIFIED www.liteputer.com.tw Lite-Puter AX-1205[CUM-C]...
- Page 14 ISO 9001 CERTIFIED www.liteputer.com.tw STEP-2 Press ◄ or ► to select chase mode, press ► and LED will display, STEP-3 Press ▲or▼ to adjust chase speed, press ▼ and LED will display, Lite-Puter AX-1205[CUM-C]...
-
Page 15: Channel Chase With Fade-In /Fade-Out
When it runs channel chase, you can use VR1 ~ VR12 to recall a scene as the back scene. The dimming value of the channels in the back scene depends on the value of MASTER VR controls the dimming value of all the channels in chase. Lite-Puter AX-1205[CUM-C]... -
Page 16: Scene Chase
2-13-2. Scene Chase with Fade-in/Fade-out Press CHASE to shift between scene chase mode with Fade-in/ Fade-out and scene chase mode without Fade-in/ Fade-out. 2-13-3. Audio Control Chase STEP-1 In scene mode, press AUDIO to enter audio control chase and LED will display, Lite-Puter AX-1205[CUM-C]... -
Page 17: Back Scene Setting In Scene Chase
ISO 9001 CERTIFIED www.liteputer.com.tw Audio indicator light will blink according to audio’s frenquence. 2-13-4. Back Scene Setting in Scene Chase When it runs scene chase, you can use VR1 ~ VR12 to recall a scene as the back scene. Lite-Puter AX-1205[CUM-C]...
