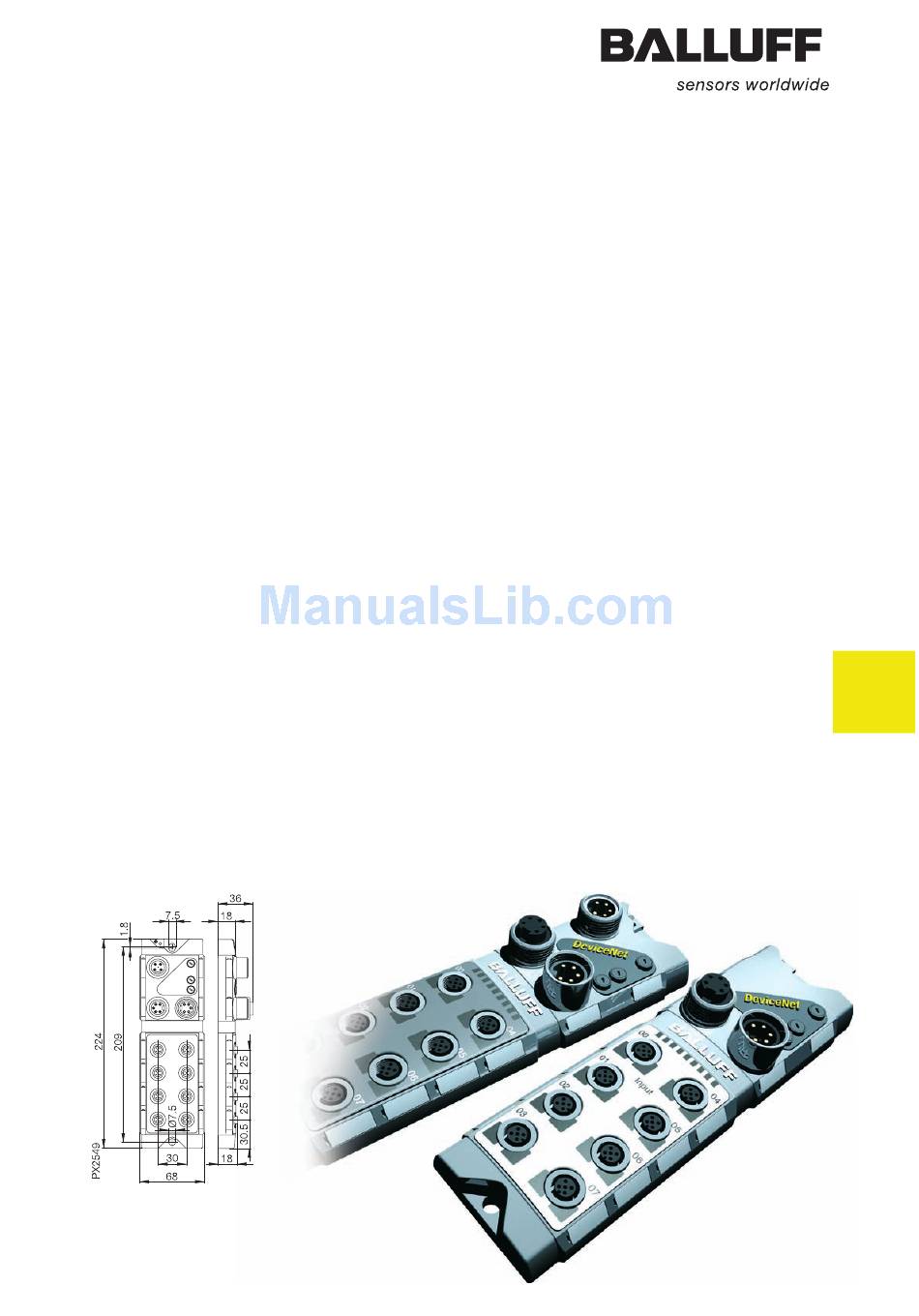

- Page 1 BNI DNT-104-000-Z004 BNI DNT-202-000-Z005 BNI DNT-302-000-Z005 BNI DNT-305-000-Z005 Short Guide English...
-
Page 2: Table Of Contents
Balluff Network Interface / DeviceNet Fieldbus Distributor Notes to the User 1.1 About this guide 1.2 Structure of the guide 1.3 Typographical conventions 1.4 Symbols 1.5 Abbreviations Safety 2.1 Intended use 2.2 General safety notes 2.3 Meaning of the warnings Getting Started 3.1 Connection overview... -
Page 3: Note To The User
Balluff Network Interface / DeviceNet Fieldbus Distributor Notes to the User 1.1 About this guide This Guide describes the Balluff DeviceNet Fieldbus Module BNI DNT-..., which enables expan- ded communication down to the lowest level so as to provide improved process optimizing and preventive maintenance. -
Page 4: Safety
Balluff Network Interface / DeviceNet Fieldbus Distributor Safety 2.1 Intended use The BNI DNT-... serves as a decentral in- and output module for connecting to a DeviceNet network. 2.2 General safety Installation and startup notes Installation and startup are to be performed only by trained specialists. Any damage resulting from unauthorized manipulation or improper use voids the manufacturer's guarantee and war- ranty. -
Page 5: Getting Started
Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started BNI DNT-104-000-Z004 3.1 Connection overview Fig. 1: Connection overview BNI DNT-104-000-Z004 Mounting hole Standard I Port 7 Baud rate switch 10 Standard I Port Address switches 11 Standard I Port 7/8“... - Page 6 Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started BNI DNT-202-000-Z005 Fig. : Connection overview BNI DNT-0-000-Z00 Mounting hole 10 Standard O Port Baud rate switch 11 Standard O Port Address switches 1 Standard O Port 1 7/8“ Bus OUT...
- Page 7 Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started BNI DNT-302-000-Z005 Fig. : Connection overview BNI DNT-0-000-Z00 Mounting hole 10 Standard I/O Port Baud rate switch 11 Standard I/O Port Address switches 1 Standard I/O Port 1 7/8“ Bus OUT...
- Page 8 Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started BNI DNT-305-000-Z005 Fig. 4: Connection overview BNI DNT-0-000-Z00 Mounting hole 10 Standard O Port 1 Baud rate switch 11 Standard O Port 0 Address switches 1 Standard I Port 1 7/8“ Bus OUT...
-
Page 9: Electrical Connection
Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started 3.3 Electrical connection AUX Power (7/8“ 4-pin plug) Supply voltage Function + 4 V Output power (actuator) + 4 V Input power (sensor) Earth Common GND (0V) – DC voltage 4 V DC. -
Page 10: Bus Connection
Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started 3.4 Bus connection The bus connection is made using the 7/8“ sockets DeviceNet IN and DeviceNet OUT. The address is set on the address switch. DeviceNet IN (7/8“ male) DeviceNet OUT (7/8“ female) - Page 11 Balluff Network Interface / DeviceNet Fieldbus Distributor Getting Started More detailed explanations of the baud rate and address switches can be found on the rear of the module. Fig. 7: Baud rate and address switch labels on the rear of the module 3.5 Connecting...
-
Page 12: Technical Data
Balluff Network Interface / DeviceNet Fieldbus Distributor Technical Data 4.1 Dimensions Fig. 8: Dimensions in mm 4.2 Mechanical data Housing material Zinc die-cast, satin nickel-plated Fieldbus DeviceNet: 7/8“ -pin (male and female) Supply voltage 7/8" 4-pin male I/O ports M1, A-coded (8x female) -
Page 13: Function Indicators
Balluff Network Interface / DeviceNet Fieldbus Distributor Technical Data 4.5 Function indicators LED indicators Profibus Fig. 9: LED indicators for bus and I/O ports Status LED‘s Display Function LED 1 green/red UA, supply voltage (AUX Power actuator)*) LED green/red... -
Page 14: Appendix
Balluff Network Interface / DeviceNet Fieldbus Distributor Appendix BNI DNT – x0x – 000 – Z00x Ordering code Balluff Network Interface DeviceNet Functions 104 = 16 standard inputs 0 = 8 standard outputs A 0 = max. 16 inputs / outputs 1.6 A... - Page 15 Bit layout BNI DNT-104-000-Z004 - 16 Standard I-Ports (4 bytes IN, 0 bytes OUT) Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0...
- Page 16 Balluff GmbH Schurwaldstraße 9 776 Neuhausen a.d.F. Germany Tel. +49 718 17-0 Fax +49 718 010 balluff@balluff.de www.balluff.com...
