Summary of Contents for Balluff BNI IOL-302-000-Z026

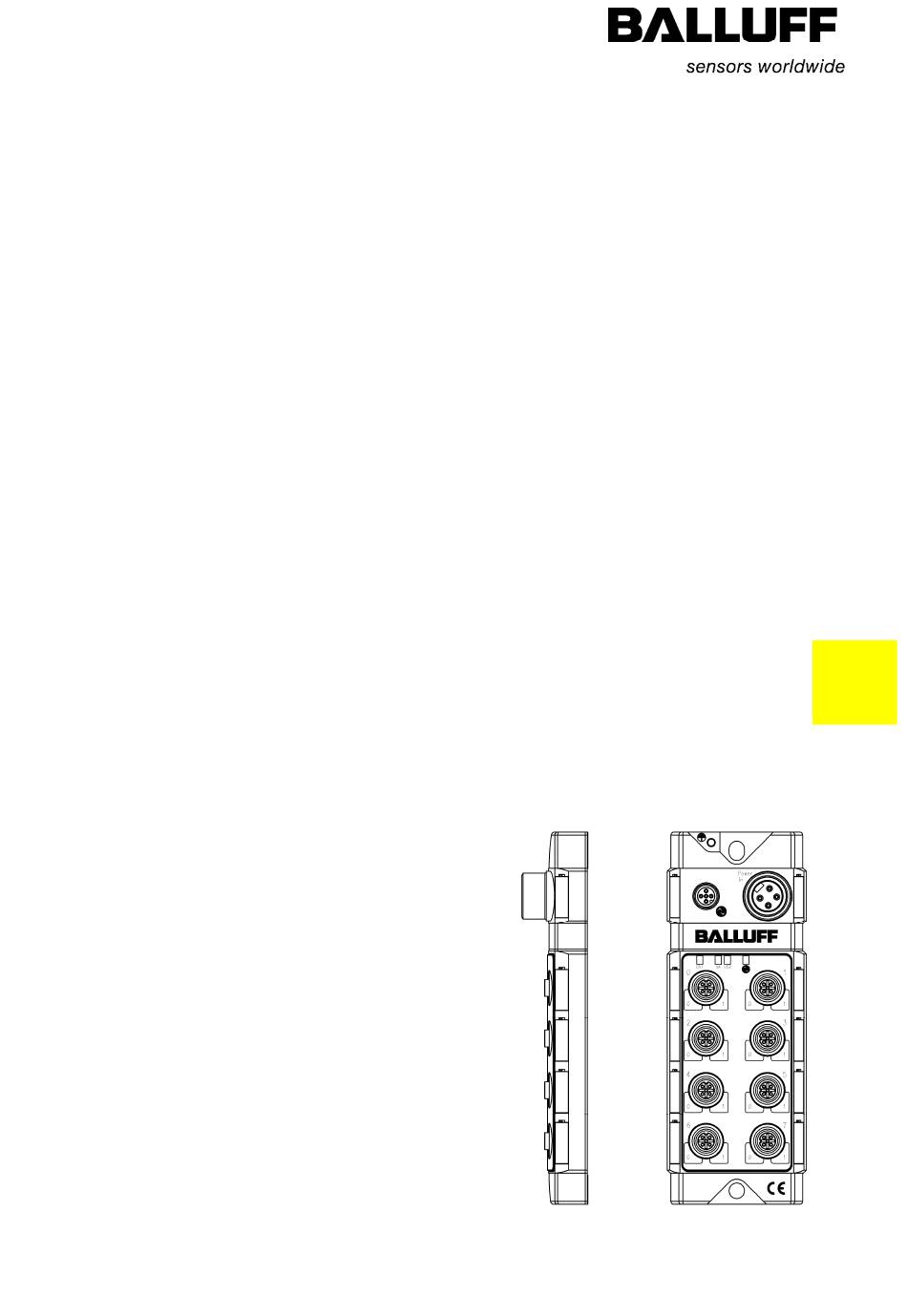

- Page 1 BNI IOL-302-000-Z026 BNI IOL-302-S01-Z026 User’s Guide...
-
Page 2: Table Of Contents
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 1 Notes for the user About this guide Structure of the guide Typographical conventions 1.3.1 Enumerations 1.3.2 Actions 1.3.3 Syntax 1.3.4 Cross references Symbols Abbreviations 2 Safety Intended use General safety notes Meaning of the warnings... -
Page 3: Notes For The User
Notes for the user 1.1 About this guide This guide describes the Balluff Network Interface BNI IOL-302-xxx-Z026 for the application as peripheral in-/ output module to establish connection of binary standard sensors or actuators. Hereby it is about an IO-Link device which communicates by means of IO-Link protocol with the superordinate IO-Link master assembly. -
Page 4: Safety
Safety 2.1 Intended use This guide describes the Balluff Network Interface BNI IOL-302-xxx-Z026 for the application as peripheral in-/ output module to establish connection of binary standard sensors or actuators. Hereby it is about an IO-Link device which communicates by means of IO-Link protocol with the superordinate IO-Link master assembly. -
Page 5: Getting Started
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Getting started 3.1 Connection overview Figure 3-1: Connection overview BNI IOL-302-xxx-Z013 Mounting hole 10 Pin/Port LED: Signal status Label 11 Standard I/O port 6 Supply voltage connection 12 Standard I/O port 4 Status LED: communication / module... -
Page 6: Mechanical Connection
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Getting started 3.2 Mechanical The BNI IOL-302-xxx-Z026 modules are attached by using 2 M6 screws and 2 spacers. connection 3.3 Electrical The BNI IOL-302-xxx-Z026 modules require two separate supply voltage connection. The supply connection voltage of the module is provided through the IO-Link interface by the host IO-Link Master. -
Page 7: Sensor-Actuator Interface
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Getting started 3.3.3 Sensor-Actuator Standard I/O port (M12, A coded, female) interface Function +24V, 300mA Input 2 / Output 2 Input 1 / Output 1 Note! For the digital sensor inputs follow the input guideline per EN61131-2, type 2. -
Page 8: Io-Link Interface
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 IO-Link interface 4.1 IO-Link data BNI IOL-302-000-Z026 Data transmission rate COM2 (38,4 kBaud) Frame type Minimal cycle time 3 ms Process data cycle time 12 ms, 3 ms, at minimal cycle time Process data length... -
Page 9: Process Data / Output Data
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 IO-Link interface Byte 4 Byte 5 Actuator short circuit at Signal port on port x Short circuit port x.0=Pin4 Short circuit port x.1=Pin2 Note: Actuator short circuit: overload or short circuit of the output signal against 0V. -
Page 10: Parameter Data / Request Data
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 IO-Link interface 4.4 Parameter data / SPDU Request data Object name Length Range Default value Sub- Index Index Index 0x07 Vendor ID 2 Byte 0x0378 0x08 0x09 0x05070F 0x0A Device ID 3 Byte... - Page 11 Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 IO-Link interface Fault state Pin 4 Byte 0 Byte 1 Fault state port (x) 00 – 0 01 – 1 10 – Latest state 11 – Not defined Subindex Fault state Pin 2...
-
Page 12: Error
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 IO-Link interface 4.5 Error Error Code Additional Code Device application Index not available error 0x80 0x11 Device application Subindex not available error 0x80 0x12 Device application Value out of range error 0x80 0x30 4.6 Events... -
Page 13: Mechanical Data
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Technical data 5.1 Dimensions Figure 5-1: Dimensions BNI IOL-302-xxx-Z013 5.2 Mechanical Housing material Die-cast zinc housing data IO-Link port M12, A coded, male Supply voltage connection 7/8” male, 4 poles I/O-ports M12, female, 5 poles... -
Page 14: Led Indicators
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Technical data 5.5 LED indicators LED 1-4, Status LED Port/Pin LED: Status input / output ports Figure 5-2: Indication LEDs Status LEDs BNI IOL-302-xxx-Z013 Indicator Function LED 1 Green / Red Supply module ok / Under voltage... -
Page 15: Product Ordering Code
Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 Appendix Product ordering BNI IOL-302-xxx-Z026 code Balluff Network Interface IO-Link Interface Functions 302 = 16 dig. Inputs/ Outputs Versions 000 = Standard version S01 = Single channel monitoring Mechanical design Z026 = Die-cast zinc housing, matte nickel plated Bus connection and power supply: 1xM12 male, external thread Power supply: 1x7/8“... - Page 16 Balluff Network Interface / IO-Link BNI IOL-302-xxx-Z026 www.balluff.com Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Germany Tel. +49 7158 173-0 Fax +49 7158 5010 www.balluff.com balluff@balluff.de...
