Instruction Manual

Qute

Mini driverless digital to analogue converter

Thank you for purchasing the Chord 2Qute. In order to get the most from your

product please, take a few moments to read these instructions.

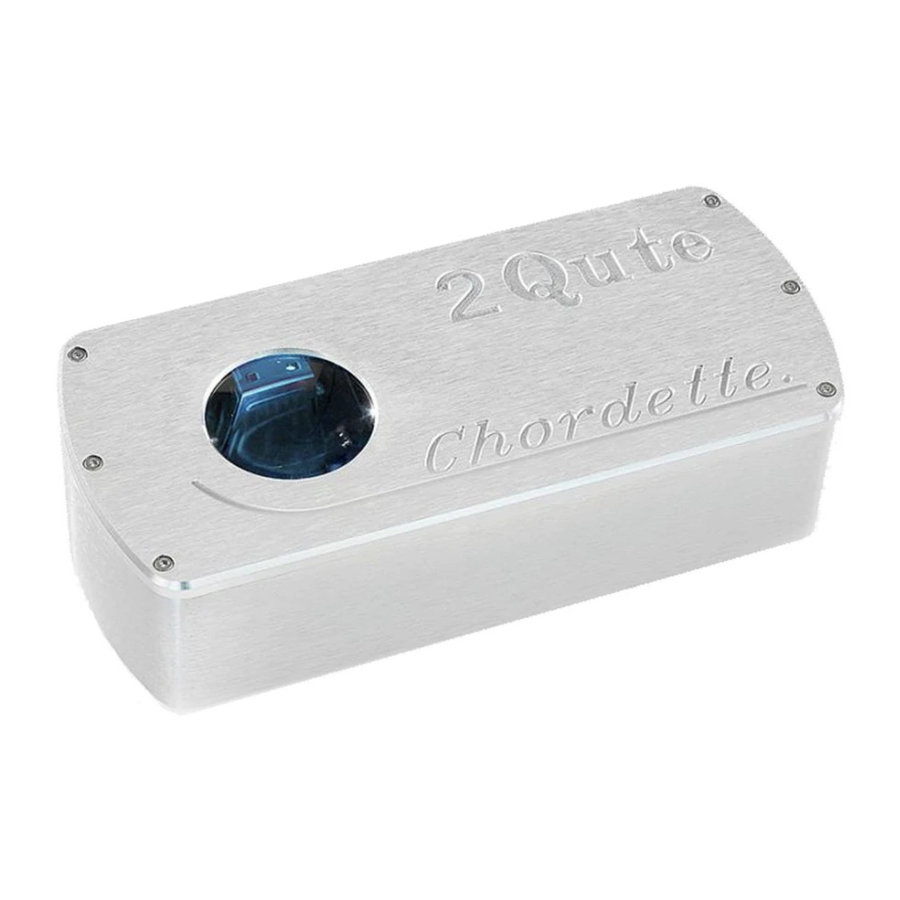

2Qute advances the award-winning Qute EX DAC to the latest Chord DAC

specification. 2Qute features a high-performance Spartan 6 FPGA that enables the

latest WTA DAC design with 26,368 tap length filter. The 2Qute boasts astonishingly low

distortion levels of 0.0003%.

2Qute offers support for up to 32-bit/384kHz audio via coax and USB, and 24-bit/192kHz

over optical. DSD64 is supported on all inputs and DSD128 is supported via coax or USB

(all via DoP).

Inputs can easily be changed via a switch to easily move between coax, optical and

USB digital inputs.

2Qute features a Class 2 USB input which is galvanically isolated for greater sonic

performance. The input is driverless on Apple and Android devices, with (ASIO included)

drivers for Windows devices.

Chord Electronics Limited

Need help?

Do you have a question about the 2 Qute and is the answer not in the manual?

Page 1 Qute Mini driverless digital to analogue converter Thank you for purchasing the Chord 2Qute. In order to get the most from your product please, take a few moments to read these instructions. 2Qute advances the award-winning Qute EX DAC to the latest Chord DAC specification.
Page 2 Power HD USB connection BNC coaxial Input Optical TOSLink Phono connection switch connection connection Operation Plug your power adapter into 2Qute and it will cycle through a sequence of colours and then be ready for operation. Select the input you wish to use using the input switch and plug in your input cables, as appropriate.
Page 3 Coax Input Connect a coax digital signal to the BNC type coax socket and select the coax input indicated by the red source light. This input supports 44.1kHz - 384kHz operation. Optical Input Connect an optical digital signal to the TOSLink socket and select the optical input indicated by the green source light.
Page 4: Specifications
0.0003% at 3v RMS 1kHz; 0.0002% at 2v RMS 1kHz Crosstalk: 126dB 1kHz Frequency Response: +/- 0.1dB 20-20kHz Power supply: 12V 0.5A Dimensions: 0.4Kg Weight: 160x70x40mm (width x height x depth) Chord Electronics Limited Chord Electronics Limited Made in England by Chord Electronics Ltd www.chordelectronics.co.uk...
