Hugo M Scaler | Quickstart Manual
Quickstart Manual
Introduction
Welcome to the M Scaler Quickstart Guide. This shortened guide is
supplementary to the main manual which should be referred to for full
safety and operational information.
Please note, more information on any of these topics is listed within
the full manual.
Warranty
The M scaler comes with a comprehensive 3-year warranty. To activate
this warranty, please register your device via the Chord Electronics
website:
chordelectronics.co.uk/register-product
Note: please do not use a third-party charger with the M Scaler as it
voids the warranty

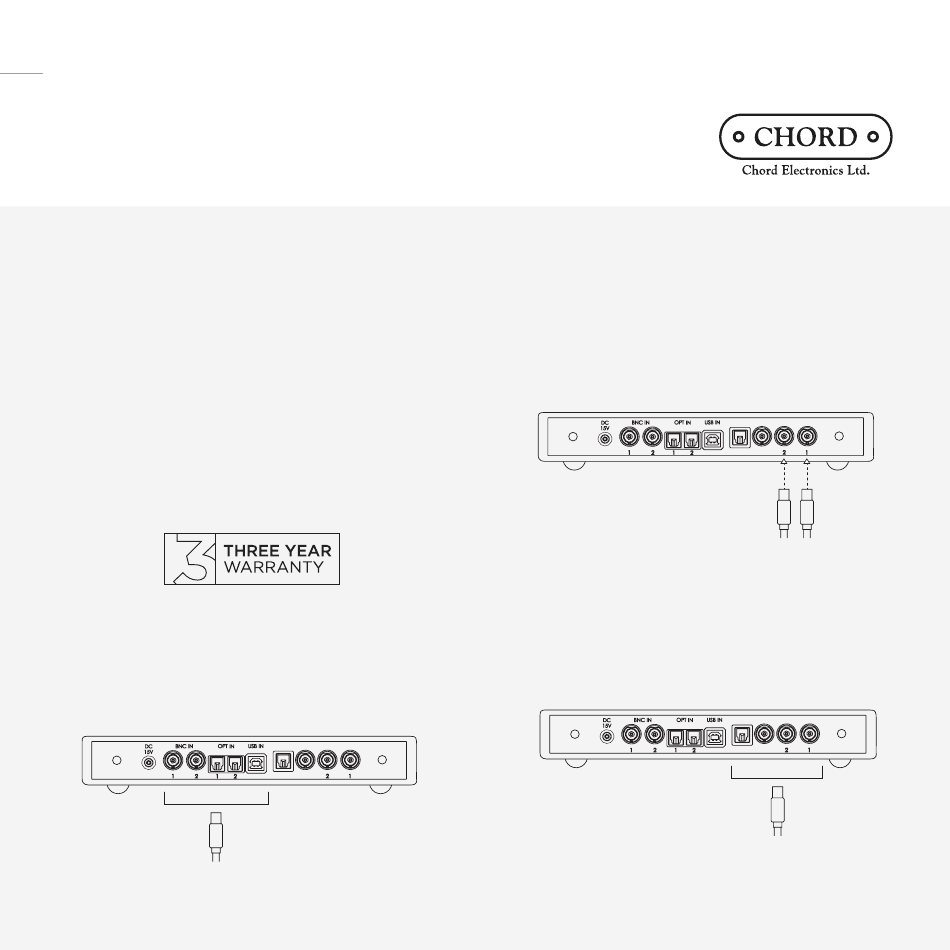

Connecting your source to M Scaler
In order for M Scaler to upscale/upsample your music, you must
connect your source to any input of M Scaler. You can connect multiple
sources if you wish. If you are using a MAC/Linux device you will not
need a driver but a Windows device will need a driver from the M scaler
section of our website:
chordelectronics.co.uk/product/hugo-mscaler/
Input
The Pumphouse, Farleigh Lane, East Farleigh, Kent, ME16 9NB, United Kingdom
info@chordelectronics.co.uk
chordelectronics.co.uk
1.0
1.1
2.0
OPT OUT S/PDIF
OPT OUT
S/PDIF
DUAL BNC OUT
DUAL BNC OUT
For more in-depth information on the safety and warranty of the Hugo M
Scaler, please see section 1 and 2 of the manual.

Connecting M Scaler to DAVE, TT 2 or Qutest

To experience the full 768kHz upsampling benefits of M Scaler, you
must connect it in dual-data mode to a Chord Electronics DAC using
two BNC cables. These have been provided.
Plug BNC OUT 1 into BNC IN 1 and BNC OUT 2 into BNC IN 2. If you
only plug one BNC cable into the device you will only experience a
maximum upsampling of 384kHz. You no longer require your source to
be connected to your DAC.

Connecting M Scaler to a third-party DAC

Connecting M Scaler to a third-party DAC without a supported dual
data mode (x2 parallel BNC inputs) will yield maximum upsampling of
384kHz. We recommend connecting M Scaler to your DAC via BNC/
SPDIF for the maximum upsampling of 384kHz in this configuration.
Connect any output of M Scaler to the input of your DAC. You no
longer require your source to be connected to your DAC.
3.0
OPT OUT S/PDIF
OPT OUT
S/PDIF
DUAL BNC OUT
DUAL BNC OUT
Output
4.0
OPT OUT S/PDIF
OPT OUT
S/PDIF
DUAL BNC OUT
DUAL BNC OUT
Output
