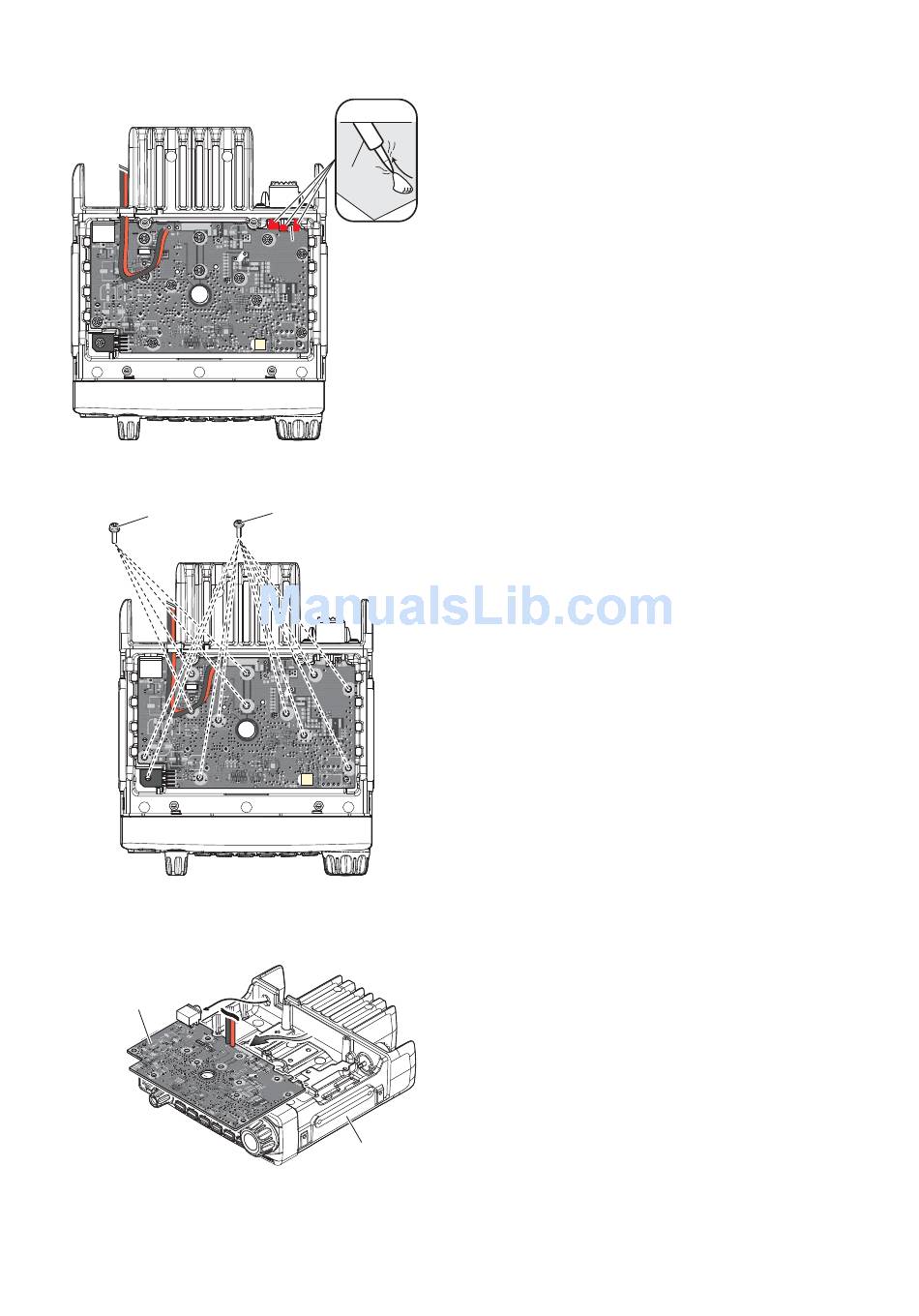

REMOVING THE MAIN UNIT (Conitunued)
5) Unsolder 3 points at the antenna connector.
MAIN UNIT
MAIN UNIT
MAIN UNIT
6) Remove the total of 13 screws from the MAIN UNIT.
4 screws
MAIN UNIT
MAIN UNIT
MAIN UNIT
7) Remove the MAIN UNIT from the chassis in the di-
rection of the arrow.
MAIN UNIT
MAIN UNIT
MAIN UNIT
UNSOLDER
Solder
remover
W2
W2
W2
9 screws
Chassis
3 - 2
MAIN UNIT
MAIN UNIT
