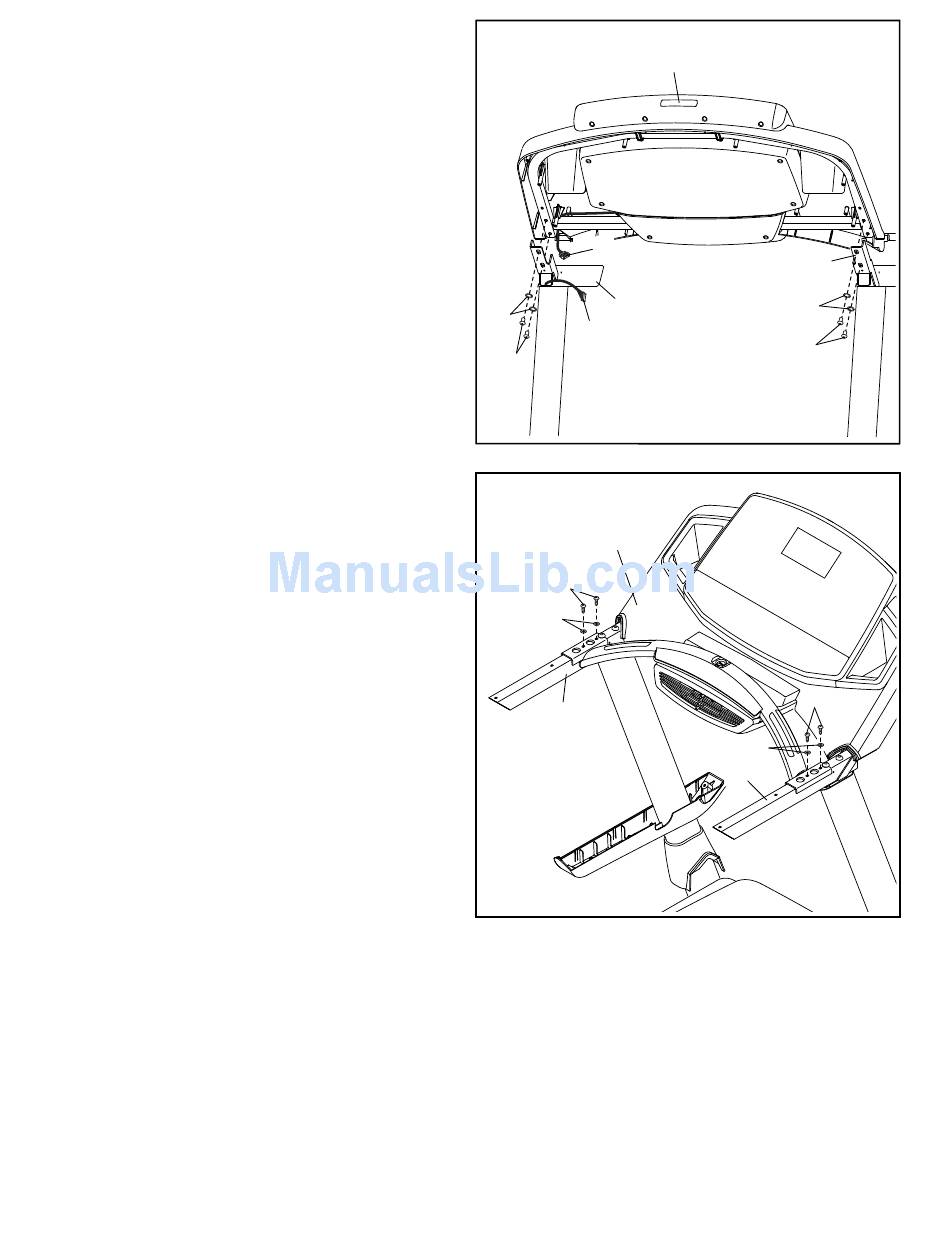

12. Set the console assembly on the Left Handrail
(86) and the Right Handrail (87). Make sure not
to pinch any wires (D, 81).
Attach the console assembly with four 5/16" x
1/2" Screws (4) and four 5/16" Star Washers
(11). Do not tighten the Screws yet.
13. Attach the console assembly to the Handrails
(86, 87) with four #10 x 3/4" Screws (9) and four
#10 Star Washers (5) as shown. Start all four
Screws, and then tighten them.
12
Console
Assembly
D
87
11
81
4
13
Console
Assembly
9
5
86
13
86
11
4
9
5
87
