FIRE TABLE INSTALLATION
AND OPERATING INSTRUCTIONS
FOR MODELS 800154FTBL, 820649FTBL, 800154FTBL-34, 820649FTBL-34,
401154FTBL, 401154FTBL-34, 401158FTBL, 401158FTBL-34
INSTALLER: THIS MANUAL MUST BE LEFT WITH THE APPLIANCE.
CONSUMER: KEEP THIS MANUAL FOR FUTURE REFERENCE.
Improper installation, adjustment, alteration, service, or maintenance can cause
severe injury or death and may result in property damage. Read these installation,
operating and maintenance instructions thoroughly before installing or servicing this
equipment.
Do not store or use gasoline or other flammable vapors or liquids in or
near this or any other appliance.
An LP (Liquefied Petroleum) tank that is not connected for use shall not
be stored in or near this or any other appliance.
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away from appliance and immediately
call gas supplier and fire department.
WARNING
WARNING
DANGER
WARNING
For Outdoor Use Only !
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for tropitone 800154FTBL
Summary of Contents for tropitone 800154FTBL
- Page 1 FIRE TABLE INSTALLATION AND OPERATING INSTRUCTIONS FOR MODELS 800154FTBL, 820649FTBL, 800154FTBL-34, 820649FTBL-34, 401154FTBL, 401154FTBL-34, 401158FTBL, 401158FTBL-34 INSTALLER: THIS MANUAL MUST BE LEFT WITH THE APPLIANCE. CONSUMER: KEEP THIS MANUAL FOR FUTURE REFERENCE. WARNING Improper installation, adjustment, alteration, service, or maintenance can cause severe injury or death and may result in property damage.
-
Page 2: Installation
WARNING Tropitone recommends that all gas products installed in the USA and CANADA be serviced and maintained by professionals that are certified by the National Fireplace Institute (NFI) as a NFI Gas Specialist or by the Wood Energy Technical Training (WETT). - Page 3 IMPORTANT It is recommended that material such as granite, marble or other dense stone be kept away from heat and flame due to the risk of cracking. Tropitone will not be held responsible for materials damaged due to excessive heat.
- Page 4 Before you can enjoy your new Fire Table, you must assemble the table legs and leg brace to the unit. Instructions for your table type can be found in the Tropitone KD Table Assembly guide supplied with this product, or on the web at www.tropitone.com. You must also connect a Liquid Petroleum (LP) gas tank (sold separately).
- Page 5 The spark used to ignite your Fire Table comes from a 9 volt battery located just inside and to the right of the access door. Upon initial installation, please remove the battery and take the plastic protective cover off the terminals and discard. Reinstall the battery in to the battery compartment before attempting to light your Fire Table.
- Page 6 Once the tank is installed as instructed above, you can connect your LP gas tank to the Fire Table, using the supplied propane gas hose shown above. Hand tighten the propane tank gas connector, to the tank valve. CAUTION: Do NOT use tools to tighten this connection. Open the gas valve on the tank by turning the gas valve knob counter-clockwise (to the left) until fully open.
- Page 7 Remove the LP Gas tank hose (shown in blue) from the gas valve (shown in bronze) at the elbow coming out of the gas valve as shown below. Connect your inlet supply line, including pressure regulator to this location. Follow all local codes. Do not install without a regulator, which will limit your fuel supply to 5 inches of water column.
-
Page 8: Fire Media Installation
FIRE MEDIA INSTALLATION Please follow the instructions below to add the finishing touch to your Fire Table. Your Fire Table needs a fire media in order to get the proper flame characteristics from the burner assembly. The media can be lava rocks, decorative fire glass, fire logs, or other fire media specifically designed for outdoor fire pits and fireplaces. -
Page 9: Lighting Instructions
LIGHTING INSTRUCTIONS To light your new Fire Table, complete all installation and safety instructions above. Be sure to install a 9 volt battery in the ignition system battery case mounted on the inside post of the right door frame. To install the battery, follow the instructions on page 5. Spark Igniter Switch Gas Valve Knob... -
Page 10: Internal Controls
INTERNAL CONTROLS PARTS LIST Item No. Description Part No. 3/8” Flare x 1/2” MIPT R18CO107 Gas Regulator, 3/8” FPT x 1/4” FPT R18FH101 Nipple, ¼” FPT x CLOSE R18CO115 Tee, ¼ FPT x ¼” FPT x ¼” FPT R18CO109 Nipple, ¼” FPT x 1-1/2” Long R18CO114 Nipple, ¼”... - Page 11 BURNER TRAY AND CONTROLS Pressure Test Port PARTS LIST Item No. Description Part No. Blow Out Box Assembly R19NT108 Pilot & Thermocouple Assembly R19TC100 Igniter Assembly R19NT100 Burner, 6 Point Arm, 12” Diameter R18BA104 Nut, 1/2” Stainless Steel R02NU500 Burner Tray, Square 18” R15MS301 Burner Tray, Round 18”...
- Page 12 This Fire Table has been tested and approved in accordance with ANSI Z21.97 by ICC-ES Listing No. PMG-1114 Tropitone Furniture Co., Inc. 5 Marconi Irvine, Ca 92618 949-951-2010 www.tropitone.com 1401 Commerce Blvd. Sarasota, Fl 34243 © Tropitone Furniture Co., Inc. 2013 12/13 R9TFIRETABLE Page 12 of 12 Rev. D11MAR14...
Need help?
Do you have a question about the 800154FTBL and is the answer not in the manual?
Questions and answers

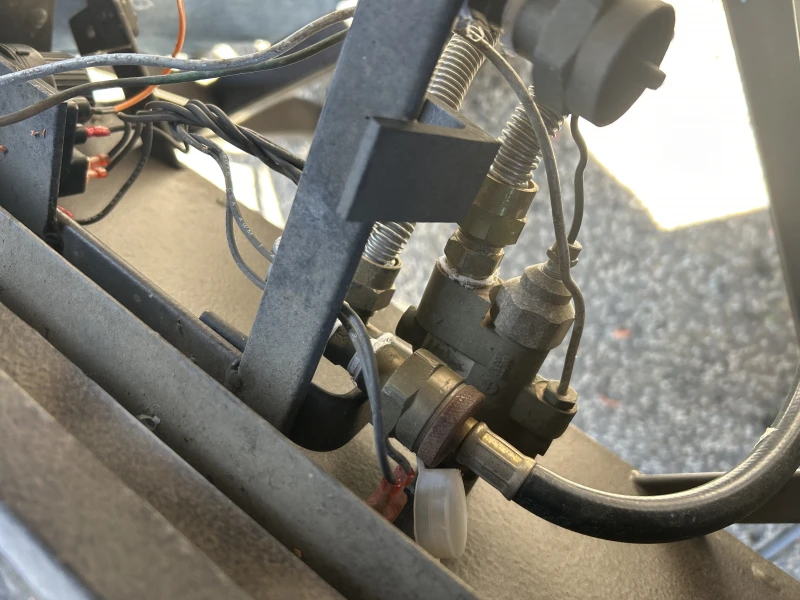

I’m trying to replace parts that plumb the propane components new valves, and hoses and pilot assembly
The manual provides a parts list and safety warnings but does not include specific step-by-step instructions for replacing the propane valves, hoses, and pilot assembly for Tropitone part number 800154FTBL. However, general replacement steps would involve shutting off the gas supply, disconnecting the necessary components, and installing new parts according to manufacturer specifications. It is recommended to have a qualified technician perform the replacement to ensure safety and proper installation.
