401601RD MODELS: 401642FPM, 401654FPM, 801654FPM, 801686FPM, 821649FPM,
821686FPM 401601SQ MODELS: 401643FPM, 401667FPM, 401658FPM 401600RCT
MODELS: 401767FPM-18, SB5442FPM-18, SL5442FPM-18 401701RCT MODELS:
401767FPM-24, 801753FPM-24, 821753FPM-24, SB5442FPM-24, SL5442FPM-24 401600RD
MODELS: 401641FPM, SB30RFPM, SL30RFPM 401801SQ MODELS: CM42SFPM-18,
CM42SFPM-25 401801RCT MODELS: CM5030FPM-18, CM5030FPM-25
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Do not store or use gasoline, or other flammable vapors and liquids, in
the vicinity of this or any other appliance.
An LP-cylinder (Liquefied Petroleum) not connected for use shall not be
stored in the vicinity of this or any other appliance.
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
Installation and service must be performed by a qualified installer, service
DANGER
WARNING:
explosion may result causing property damage, personal injury, or loss of life.
FIRE PIT INSTALLATION
AND OPERATING INSTRUCTIONS
WARNING
DANGER
FIRE OR EXPLOSION HAZARD
WARNING: For Outdoor Use Only.
agency, or the gas supplier.
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as camper, tent, car, or home.
If the information in this manual is not followed exactly, a fire or
CARBON MONOXIDE HAZARD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for tropitone 401601RD
Summary of Contents for tropitone 401601RD

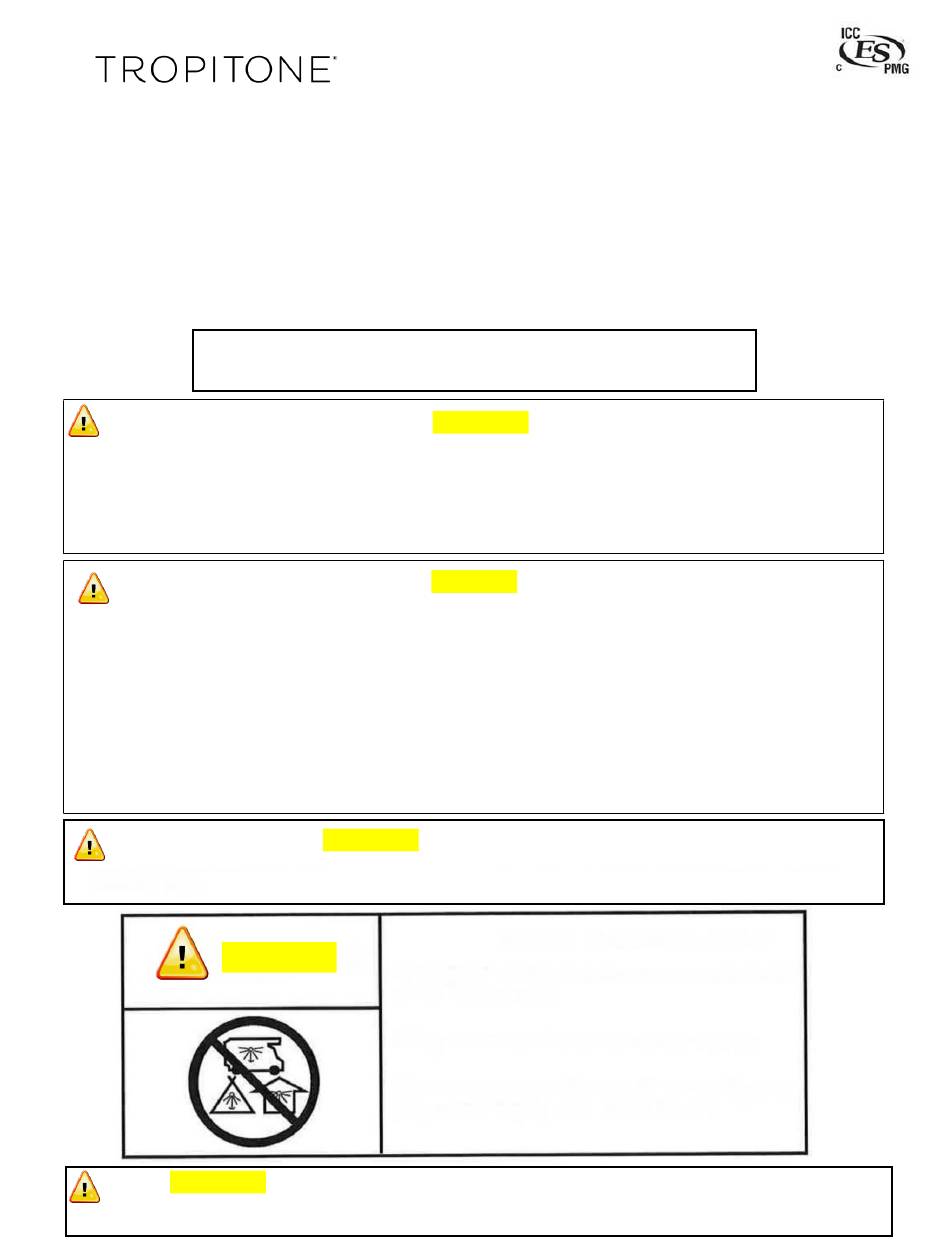

- Page 1 FIRE PIT INSTALLATION AND OPERATING INSTRUCTIONS 401601RD MODELS: 401642FPM, 401654FPM, 801654FPM, 801686FPM, 821649FPM, 821686FPM 401601SQ MODELS: 401643FPM, 401667FPM, 401658FPM 401600RCT MODELS: 401767FPM-18, SB5442FPM-18, SL5442FPM-18 401701RCT MODELS: 401767FPM-24, 801753FPM-24, 821753FPM-24, SB5442FPM-24, SL5442FPM-24 401600RD MODELS: 401641FPM, SB30RFPM, SL30RFPM 401801SQ MODELS: CM42SFPM-18, CM42SFPM-25 401801RCT MODELS: CM5030FPM-18, CM5030FPM-25 INSTALLER: Leave this manual with the appliance.
-
Page 2: Installation
WARNING Tropitone recommends that all gas products installed in the USA and CANADA be serviced and maintained by professionals that are certified by the National Fireplace Institute (NFI) as NFI Gas Specialist or by the Wood Energy Technical Training (WETT). - Page 3 IMPORTANT It is recommended that material such as granite, marble or other dense stone be kept away from heat and flame due to the risk of cracking. Tropitone will not be held responsible for materials damaged due to excessive heat.
- Page 4 DANGER Do not install this product under any type of covering, including overhangs, patio covers, umbrellas, cabanas, tree limbs or branches. The risk of fire, inhalation of fumes, and exposure to excessive heat increases greatly if this product is installed under any type of covering, which could result in personal injury, damage to property or death.
- Page 5 The LP Gas tank must be secured in the fire pit. For 401600RD, 401601RD, 401601SQ, and 401701RCT bases, place the tank in the tank retaining ring. For 401600RCT base, slide horizontal LP gas tank along middle support until the back mounting bracket of the tank hits the back of the slot.
- Page 6 You can now connect your LP gas tank to the Fire Pit, using the standard propane gas hose with built in regulator (shown in blue). Hand tighten the propane tank gas connector (shown in black), to the tank valve (shown in red). CAUTION: Do NOT use tools to tighten this connection. Open the gas valve on the tank by turning the gas valve knob (shown in green) counter-clockwise (to the left) until fully open.
- Page 7 Incorrect media OPENING! installation will cause the pilot flame to suffocate and turn off pit or delay main burner ignition. Lava rock not available from Tropitone. R9T15FIRE Page 7 of 16 Rev. D 04JAN19...
-
Page 8: Lighting Instructions
LIGHTING INSTRUCTIONS To light your new Fire Pit, complete all installation and safety instructions above. Gas Valve Knob Gas Tank Gas Valve 1. Make sure the gas valve on the gas tank is open (turned all the way to the left). 2. -
Page 9: Internal Controls
INTERNAL CONTROLS (401600RD, 401600RCT, AND 401701RCT BASE) PARTS LIST Item No. Description Part No. Knob, Black, for Gas Valve R01MS102 Nut, Retaining, M1 for Gas Valve R02NU501 Gas Valve R18VL100 3/8” Flare x 3/8” MIPT R18CO108 Gas Hose with Regulator, 3/8” x 12” Long R18FH100 Gas Hose with Regulator, 3/8”... - Page 10 BURNER TRAY AND CONTROLS (401600RD, 401601RD, AND 401601SQ BASE) PARTS LIST Item No. Description Part No. Burner Tray, Round 12” R15MS306 Burner Tray, Round 18” (not shown) R15MS300 Burner Tray, Square 18” (not shown) R15MS301 Blow Out Box Assembly R19NT113 6”...
- Page 11 INTERNAL CONTROLS (401601RD, 401601SQ, 401801SQ, AND 401801RCT BASE) PARTS LIST Item No. Description Part No. Knob, Black, for Gas Valve R01MS102 Nut, Retaining, M1 for Gas Valve R02NU501 Gas Valve R18VL100 Brass Adapter, 3/8” R15CO111 Elbow, 3/8” M x 3/8” F R15CO100 3/8”...
- Page 12 BURNER TRAY AND CONTROLS (401600RCT AND 401701RCT BASE) PARTS LIST Item No. Description Part No. Burner Tray, 30” x 8” Rectangular R15MS308 Spacer M401767FPS Rectangular Burner Support R15MS309 Rectangular Stamped Burner STMPBA243 Electrical Insulation, Silicone/Fiberglass R19NS100 Blow Out Box Assembly R19NT107 Pilot &...
- Page 13 FIRE PIT NATURAL GAS CONVERSION AND OPERATING INSTRUCTIONS First turn the LP Gas tank (if installed) fully off by rotating the valve completely to the left until closed. Then disconnect the LP Gas tank hose with built in regulator by turning the large connector fully counter-clockwise until the hose is completely disconnected.
- Page 14 CAUTION: Use a joint compound or thread tape approved for the type of gas this appliance is intended to use on all male threads EXCEPT compression threads. Never apply thread tape of compound to compression threads. Beneath the Burner tray, locate the Gas/Air Mixer in the plumbing. Remove the LP Gas/Air Mixer and replace with the Natural Gas Orifice.
- Page 15 Once your Fire Pit has been converted to Natural Gas, please locate the small silver label and remove the bottom strip. Place this strip over the section indicated above, on the large label located on the inside door. R9T15FIRE Page 15 of 16 Rev.
- Page 16 This Fire Pit has been tested and approved in accordance with ANSI Z21.97 by ICC-ES Listing No. PMG-1114 Tropitone Furniture Co., Inc. 5 Marconi Irvine, Ca 92618 949-951-2010 www.tropitone.com 1401 Commerce Blvd. Sarasota, Fl 34243 © Tropitone Furniture Co., Inc, 2019 R9T15FIRE Page 16 of 16 Rev. D 04JAN19...
