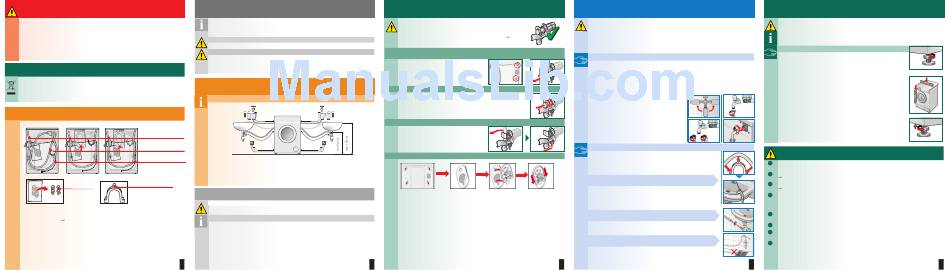

Safety instructions
– The washer dryer is heavy – take care when lifting it.
– Warning: frozen hoses may tear/burst. Do not install the washer dryer outdoors or in areas
where there is a risk of frost.
– The washer dryer may be damaged. Do not lift by moveable components (e.g. washer dryer
door).
– In addition to the instructions mentioned here, special regulations regarding the relevant
water and power supply companies may apply.
– If in doubt, have the appliance connected by a technician.
– Lay hoses and cables in such a way that there is no risk that they can be tripped over.
Environmentally friendly disposal
– Dispose of packaging in an environmentally friendly manner.
– This appliance has been identified in accordance with the European Directive
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This directive
specifies a framework for the return and recycling of waste appliances, and is valid
throughout Europe.
Scope of delivery
Humidity in the drum is caused
according to the model
by the final inspection.
Aqua-Stop
Aqua-Secure
Standard
Water drainage
Water supply
Power cord
Elbow
Covers
for fixing the waste
water hose
Depending on the connection
– A 24–40 mm dia. hose clip may also be required for connecting the siphon (available from
specialist retailers).
Page 4: Water connection
Useful tool
– Spirit level for aligning the washer dryer.
– Wrench for adjusting the machine feet.
1
Installation area
– Stability is important to prevent the machine from wandering.
– The installation area must be firm and level.
– Soft floors/floor coverings are not suitable.
– Ensure the area is well ventilated to achieve good drying performance.
If installing the appliance on a platform
– It is essential to secure the washer dryer feet with holding brackets *.
If installing the appliance on a wooden joist floor
– If possible, install the washer dryer in a corner.
– Screw a water-resistant wooden panel (min. 30 mm thick) to the floor.
– It is essential to secure the washer dryer feet with holding brackets *.
* order no. WMZ 20490, WZ 20490
Hose and cable lengths
or
Connection on left side
Connection on right side
~140 cm
~90 cm
~95 cm
~140 cm
~160 cm
~165 cm
Note: If hose holders are used, the hose lengths may be reduced.
Available from dealer/after-sales service:
– Aqua-Stop extension hose **, approx. 2.50 m.
– Longer supply hose, approx. 2.20 m, for standard model.
** order no. WMZ 2380, WZ 10130
Built-under/built-in appliances
Build these appliances under/in before connection to the power supply.
Installed in between kitchen units (built-under or built-in)
– 62 cm cavity width required.
– Install the washer dryer only under a continuous worktop that is connected firmly to the
adjacent cupboards.
2
Removing the transport bolts
– Before using the appliance for the first time, always remove and retain
all 4 transport bolts.
– If transporting the appliance at a later date, always re-install the
transport bolts – this prevents damage to the machine.
Page 6
– Retain the screw and sleeve.
1. Take the hoses out of the holder and the elbow.
2. Undo and remove all 4 transport bolts.
3. Take the power cord out of the holders. Remove the sleeves.
4. Insert the covers and lock them in place by pressing on the locking hook.
3
Water connection
– Risk of electric shock. Do not immerse the Aqua-Stop safety device in water
(contains an electric valve).
– To prevent leakage or water damage, follow the instructions in this chapter.
– Note: operate the washer dryer with cold mains water only.
Do not connect to the mixer tap of a pressureless hot-water heater.
– Do not use a used inlet hose. Only use the inlet hose supplied or one which was
purchased from an authorised specialist dealer.
– If in doubt, have the appliance connected by a technician.
Water supply
Water inlet hose:
Note: Do not bend, crush, modify or cut through the hose (the strength is no longer guaranteed).
Optimum water pressure in the mains: 100-1000 kPa (1-10 bar)
– When the tap is turned on, the water flow is at least 8 l/min.
– If the water pressure is higher, install a pressure reducing valve.
Model:
Aqua-Stop
Standard
Aqua-Secure
1. Connect the water supply hose to the tap.
3/4 ''
Tighten the plastic screw fittings by hand only.
min. 10 mm
max.
max.
2. Carefully turn on the tap and check that the
90°
90°
connection points are not leaking.
Note: The screw connection is under water
3/4 ''
mains pressure.
min 10 mm
Water drainage
Water drainage hose:
Note: Do not kink or stretch.
Height difference between the installation area and outlet: 60–100 cm
Drainage into a sink/bath tub:
Note: Secure the drainage hose to prevent it from slipping out of the sink.
Note: The plug must not be in the plug hole. When the water is being
pumped out of the washer dryer, check that the water drains away quickly
enough. Do not immerse the end of the drainage hose in the water that has
been pumped out. There is a risk that water will be drawn back into the
washer dryer.
Drainage into a siphon:
Note: Secure the connection with a 24-40 mm dia. hose clip (available from
a specialist retailer).
Drainage into a plastic pipe with rubber sleeve:
Note: secure the drainage hose to prevent it from slipping out
of the drain.
4
Alignment
High levels of noise, intense vibrations and "walking" may be due to incorrect alignment.
Alignment will be carried out by customer service or authorised technicians; if you want
to align the machine by yourself please use a spirit level.
Aligning the washer dryer with a spirit level.
1. Undo the lock nut in a clockwise direction using a wrench.
2. Adjust the height by turning the appliance foot.
All four appliance feet must be placed firmly on the floor.
The washer dryer must not be able to wobble.
Check the alignment of the washer dryer with a spirit level and
correct if necessary.
3. Tighten the lock nut against the housing.
Hold the foot in place and ensure that the height is not adjusted.
The lock nuts on all four appliance feet must be screwed tightly against
the housing.
Electrical connection
Connect the washer dryer to an alternating current using a correctly installed earthed socket
only.
The mains voltage and specifications on the washer dryer must match.
Page 6: Technical specifications
For information about the connected load and required fuse.
Page 6: Technical specifications
Ensure that:
– the mains plug and socket are compatible,
– the cable cross-section is adequate,
– the earthing system has been installed correctly.
A damaged power cord must be replaced by an electrician only.
Replacement power cords are available from after-sales service.
Do not use multiple plugs/connectors or extension cables.
If a residual current-operated circuit-breaker is used, only use the type which complies with
current regulations.
Mains plug:
– Do not insert into/pull out of the socket with damp hands.
– do not pull the plug out of the socket by pulling on the power cord.
– never pull out the plug while the appliance is in operation.
5
Manufacturer (see Operating instructions)
9401/ 9000 829281
