Hardware Description and Installation

Note:
The figures in this document are for reference only.

3.1 Hardware Description

3.1.1

Front Panel

The following table describes the indicators on the front panel.
Indicator Color Status
On
Green
Blink
Power
Off
On
Red
Blink
On
WAN Green Blink
Off
On
WPS Green
Blink
Off
DSL Green On
User Manual

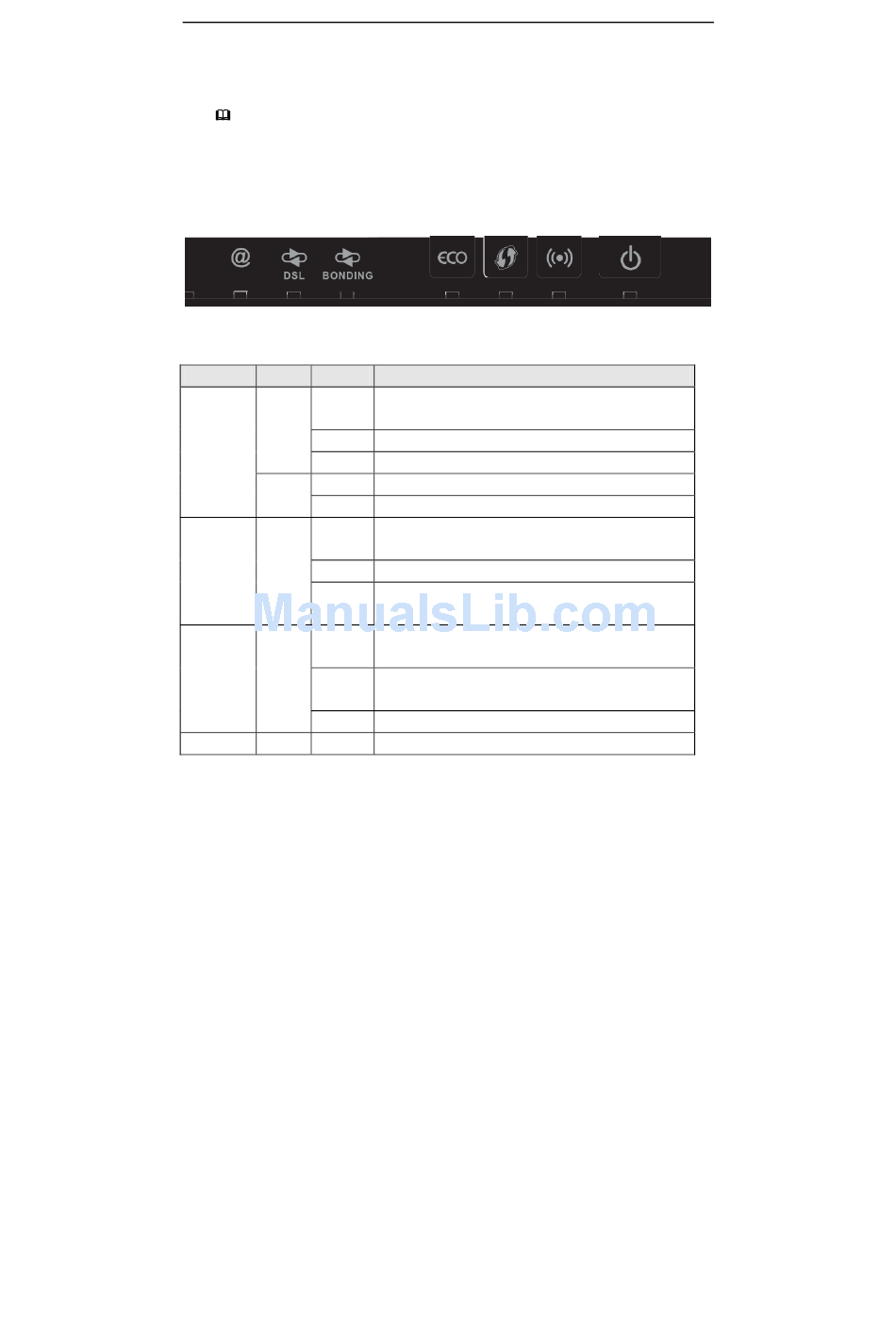

Figure 1 Front panel
Description
The device is powered on and the device operates
normally.
The software is upgrading.
The device is powered off.
The device is initiating.
The software is upgrading.
The WAN interface is connected to the Ethernet
cable.
Network data is transmitting.
The WAN interface is not connected to the
Ethernet cable.
Connection succeeds under Wi-Fi Protected
Setup.
Negotiation is in progress under W-iFi Protected
Setup.
Wi-Fi Protected Setup is disabled.
DSL link has established.
