Casio 5424 Operation Manual

MA1406-EA © 2014 CASIO COMPUTER CO., LTD.
About This Manual
1 4 2 3
30
5 6
E-2
The illustrations below show the different crown operations.
Pull out
When rotating the crown to move the hands of the watch, you can use the operations
described below to move the hands at high speed. There are two high-speed hand
movement speeds. High-speed 2 is the fastest.
High-speed 1
With the crown pulled out, rotate it rapidly away from you three
times.
E-4
Note
If you do not perform any operation for more than two minutes after pulling out the
crown, crown operations will become disabled automatically. If this happens, push
the crown back in and then pull it out again to re-enable crown operations.
You can use high-speed hand movement when confi guring time settings in the
Timekeeping Mode, Alarm Mode, Countdown Timer Mode or home position
adjustment.
High-speed hand movement is forward only. There is no high-speed backward
hand movement.
Button operations become disabled after you perform a crown operation. If this
happens, rotate the crown slightly. This should restore button operations.
E-6
2. Check the Home City.
Use the procedure under "To confi gure Home City settings" (page E-38) to confi gure your
Home City.
Important!
Proper time calibration signal reception depends on correct Home City, time, and
day settings in the Timekeeping Mode. Make sure you confi gure these settings
correctly.
3. Set the current time.
To set the time using a time calibration signal
See "To get ready for a receive operation" (page E-26).
To set the time manually
See "Confi guring Current Time and Day Settings Manually" (page E-43).
The watch is now ready for use.
For details about the watch's radio controlled timekeeping feature, see "Radio
Controlled Atomic Timekeeping" (page E-21).
E-8
Operation Guide 5424
Operations are performed using the watch's crown, and
the three buttons indicated by the letters A, B and C in
this manual.

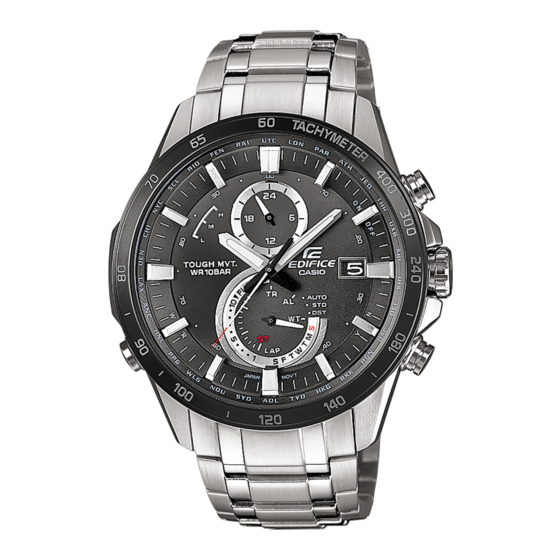

Hands and Indicators
1 Hour Hand
2 Second Hand
3 Minute Hand
4 Upper Dial Hand: Indicates a time, in 24-hour format,
depending on the current mode.
5 Lower Dial Hand: Indicates the current mode.
6 Day Indicator
This User's Guide uses numbers shown above to identify
watch hands and indicator.
Rotate Push in
Congratulations upon your selection of this CASIO watch.
Note that the product illustrations in this manual are intended for reference only, and
so the actual product may appear somewhat different than depicted by an illustration.
This watch does not have a city code that corresponds to the UTC offset of –3.5
hours. Because of this, the radio-controlled atomic timekeeping function will not
display the correct time for Newfoundland, Canada.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss suffered by you or any third party arising through the use of your
watch or its malfunction.
Using the Crown
The crown of this watch is a screw in lock crown. Before using
Crown
the crown, you must fi rst rotate it towards you to loosen it. After
performing crown operations, be sure to press the crown in
lightly as you screw it back in.
Important!
To maintain water resistance and avoid impact damage
to the crown, be sure to screw it back in when you are not
using it.
Loosen
High-speed 2
After starting the High-speed 1 operation, rotate the crown
rapidly away from you three more times.
High-speed Cancel
Rotate the crown towards you or press any button.
Things to check before using the watch
1. Hold down C at least two seconds to enter the Timekeeping Mode, and
then observe the movement of the 2 Second Hand.
Is the 2 Second Hand moving smoothly at one-second intervals?
NO
Is the 2 Second Hand moving at
two-second intervals or is it stopped
completely?
YES
Power is low. Charge the watch by
placing it in a location where it is
exposed to light. For details, see
"Charging the Watch" (page E-13).
Contents
Using the Crown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3
Things to check before using the watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-7
Charging the Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-13
To check the current power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-15
To recover from the sleep state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-20
Radio Controlled Atomic Timekeeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-21
To get ready for a receive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-26
To perform manual receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-29
To check the result of the latest receive operation . . . . . . . . . . . . . . . . . . . . . E-31
To turn auto receive on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-32
ENGLISH
E-1
E-3
E-5
YES
The watch is charged. For details
about charging, see "Charging
the Watch" (page E-13).
NEXT
Go to step 2.
E-7
E-9
