© 2015 CASIO COMPUTER CO., LTD.
MA1503-EA

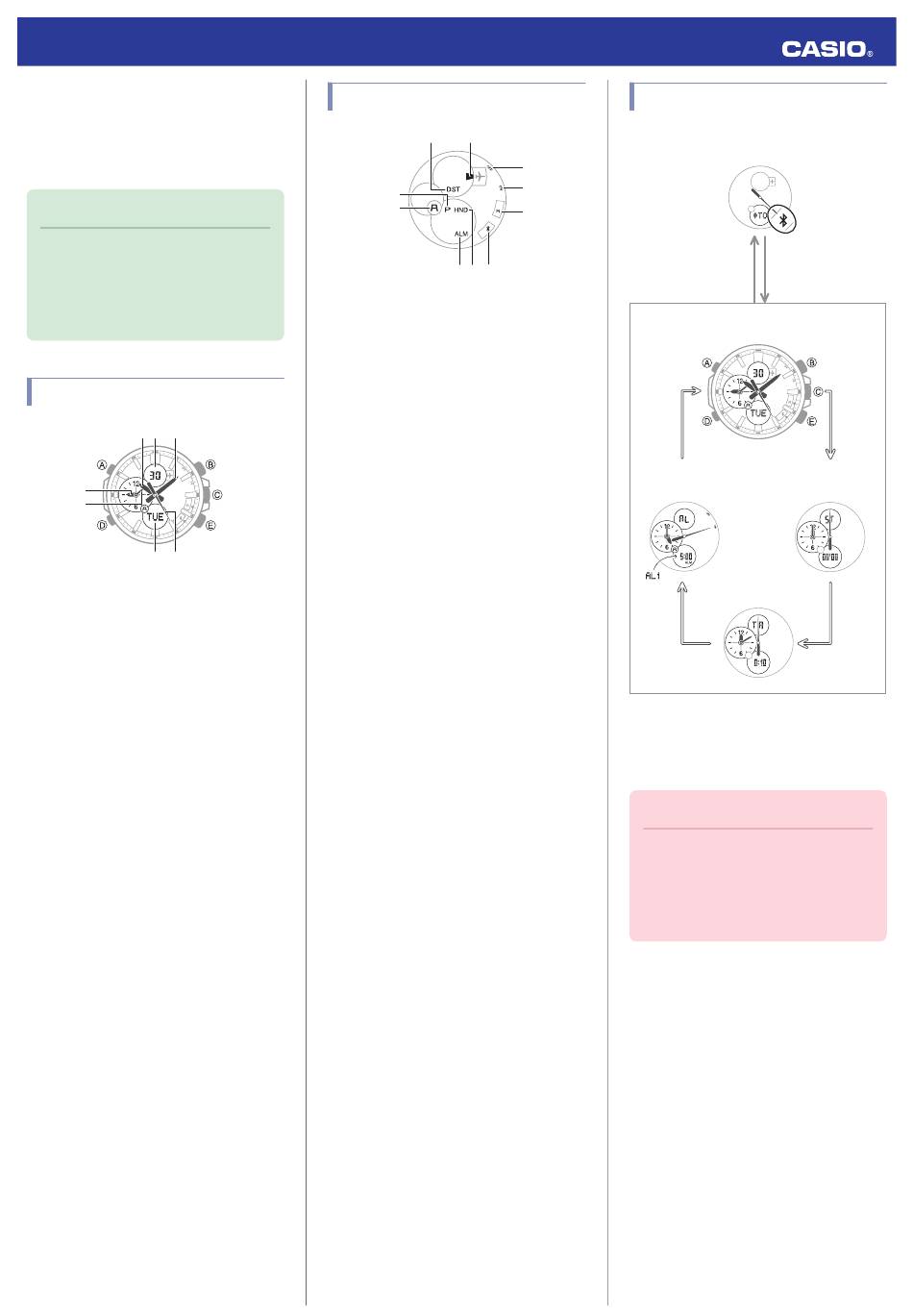

Basic Operations
This section provides an overview of the watch
and explains operations that are common to
all modes.
Note
The illustrations included in this
●
operation guide have been created
to facilitate explanation. An
illustration may differ somewhat
from the item it represents.
General Guide
① ②
③
④
⑤
⑥
⑦
A Hour hand
B Digital display
C Minute hand
D Small hour hand
E Small minute hand
F Dot display
G Second hand
Operation Guide 5427
Indicators and Displays
①
③
④
A DST indicator
Appears when the indicated time is summer
time.
B Airplane indicator
Indicates the watch is in the Airplane Mode.
Communication with a phone is disabled.
C PM indicator
Appears when the time in the dot display is a
p.m. time.
D AM/PM indicator
Indicates whether the small hour and minute
hands are showing an a.m. time [A] or p.m.
time [P].
E Alarm indicator
Appears when an alarm is turned on.
F Hand shift indicator
Flashes while the hands are shifted.
G e mark
When the watch is connected with a phone,
the second hand points to e.
H OFF mark
When the watch is in the Alarm Mode and the
alarm is disabled, the second hand points to
"OFF".
I ON mark
When the watch is in the Alarm Mode and the
alarm is enabled, the second hand points to
"ON".
J R mark
When the watch is standing by for connection
with a phone, the second hand points to "R".
②
⑧
⑨
⑩
⑤
⑥ ⑦
Navigating Between Modes
Your watch has the modes shown below.
Bluetooth connection
C
C
(Approximately
0.5 seconds)
Timekeeping Mode
D
Alarm Mode
Stopwatch Mode
Timer Mode
D
Use (D) to navigate between modes. Hold
down (D) for about two seconds to enter the
Timekeeping Mode. To connect with a phone,
hold down (C) for about 0.5 seconds.
Important!
(C) is not a crown, so you should not
●
pull on it. It is a button that you
operate by pressing it. Forcibly
pulling on (C) can cause damage to
and malfunction of the watch.
D
D
