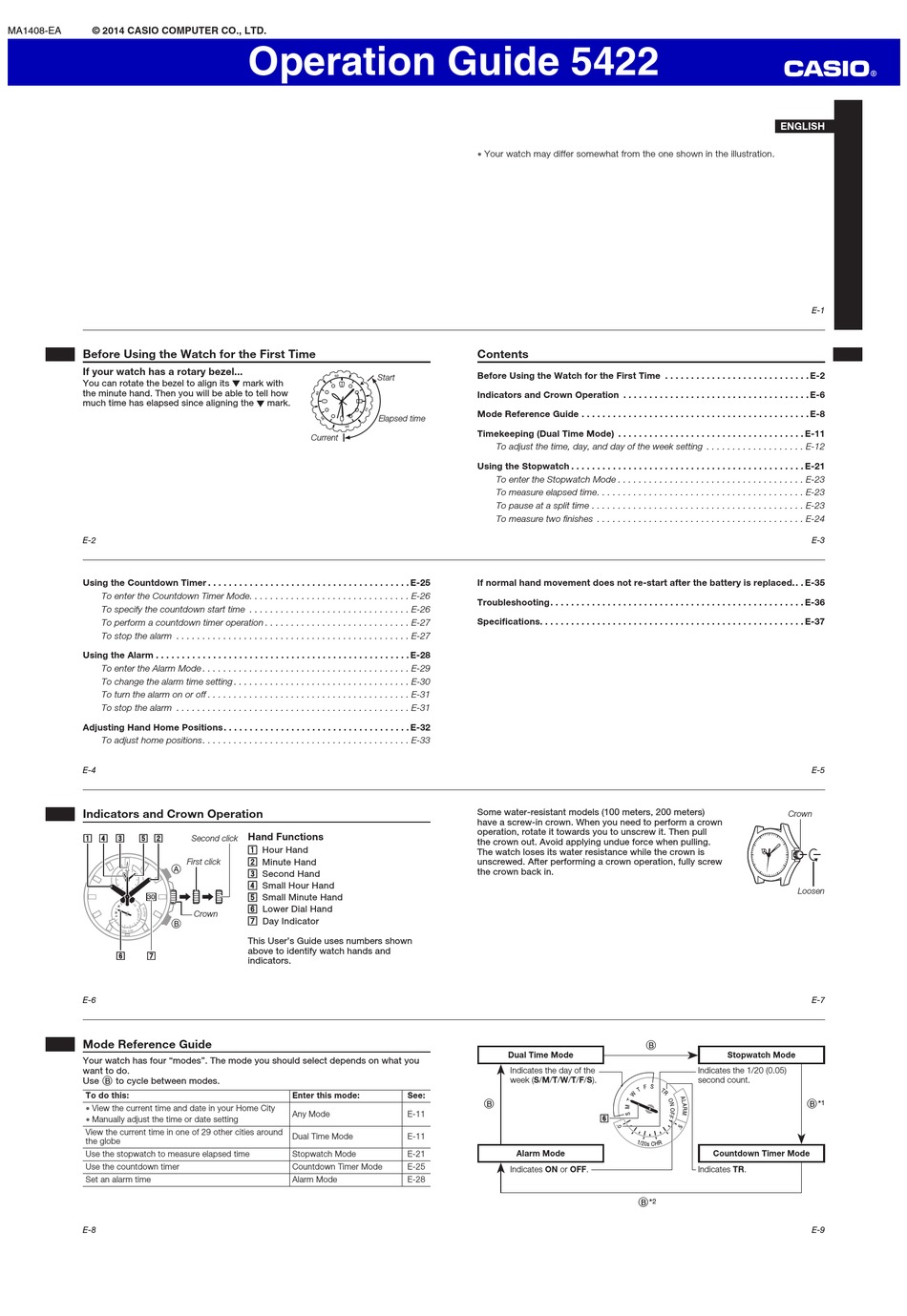

Casio 5422 Operation Manual

MA1408-EA © 2014 CASIO COMPUTER CO., LTD.
Before Using the Watch for the First Time
If your watch has a rotary bezel...
You can rotate the bezel to align its ▼ mark with
the minute hand. Then you will be able to tell how
much time has elapsed since aligning the ▼ mark.
E-2
Using the Countdown Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-25
To enter the Countdown Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-26
To specify the countdown start time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-26
To perform a countdown timer operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-27
To stop the alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-27
Using the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-28
To enter the Alarm Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-29
To change the alarm time setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-30
To turn the alarm on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-31
To stop the alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-31
Adjusting Hand Home Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-32
To adjust home positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-33
E-4
Indicators and Crown Operation
1 4 3 3 5 5 2 2
30
6 7
E-6
Mode Reference Guide
Your watch has four "modes". The mode you should select depends on what you
want to do.
Use B to cycle between modes.
To do this:
View the current time and date in your Home City
Manually adjust the time or date setting
View the current time in one of 29 other cities around
the globe
Use the stopwatch to measure elapsed time
Use the countdown timer
Set an alarm time
E-8
Operation Guide 5422
Current
Hand Functions
Second click
1 1 Hour Hand
2 2 Minute Hand
First click
3 3 Second Hand
4 4 Small Hour Hand
5 5 Small Minute Hand
6 6 Lower Dial Hand
Crown
7 7 Day Indicator
This User's Guide uses numbers shown
above to identify watch hands and
indicators.
Enter this mode:
Any Mode
Dual Time Mode
Stopwatch Mode
Countdown Timer Mode
Alarm Mode
Your watch may differ somewhat from the one shown in the illustration.
Contents
Before Using the Watch for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-2
Start
Indicators and Crown Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-6
Mode Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-8
Elapsed time
Timekeeping (Dual Time Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-11
To adjust the time, day, and day of the week setting . . . . . . . . . . . . . . . . . . . E-12
Using the Stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-21
To enter the Stopwatch Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-23
To measure elapsed time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-23
To pause at a split time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-23
To measure two fi nishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-24
If normal hand movement does not re-start after the battery is replaced. . . E-35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-36
Specifi cations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-37
Some water-resistant models (100 meters, 200 meters)
have a screw-in crown. When you need to perform a crown
operation, rotate it towards you to unscrew it. Then pull
the crown out. Avoid applying undue force when pulling.
The watch loses its water resistance while the crown is
unscrewed. After performing a crown operation, fully screw
the crown back in.
Dual Time Mode
Indicates the day of the
week (S/M/T/W/T/F/S).
See:
B
E-11
E-11
Alarm Mode
E-21
E-25
Indicates ON or OFF.
E-28
B
Stopwatch Mode
Indicates the 1/20 (0.05)
second count.
6
Countdown Timer Mode
Indicates TR.
B*
2
ENGLISH
E-1
E-3
E-5
Crown
Loosen
E-7
B*
1
E-9
