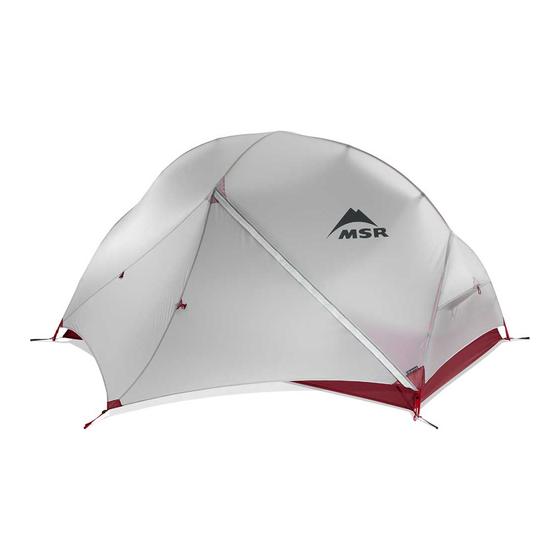

MSR HUBBA HUBBA NX Assembly Instructions

80-467-1
PACKAGE INCLUDES:
Frame assembly, tent body, rainfly, 2 guy cords, 2 tensioners,
6 MSR Mini-Groundhog™ Stakes, 1 repair sleeve
®

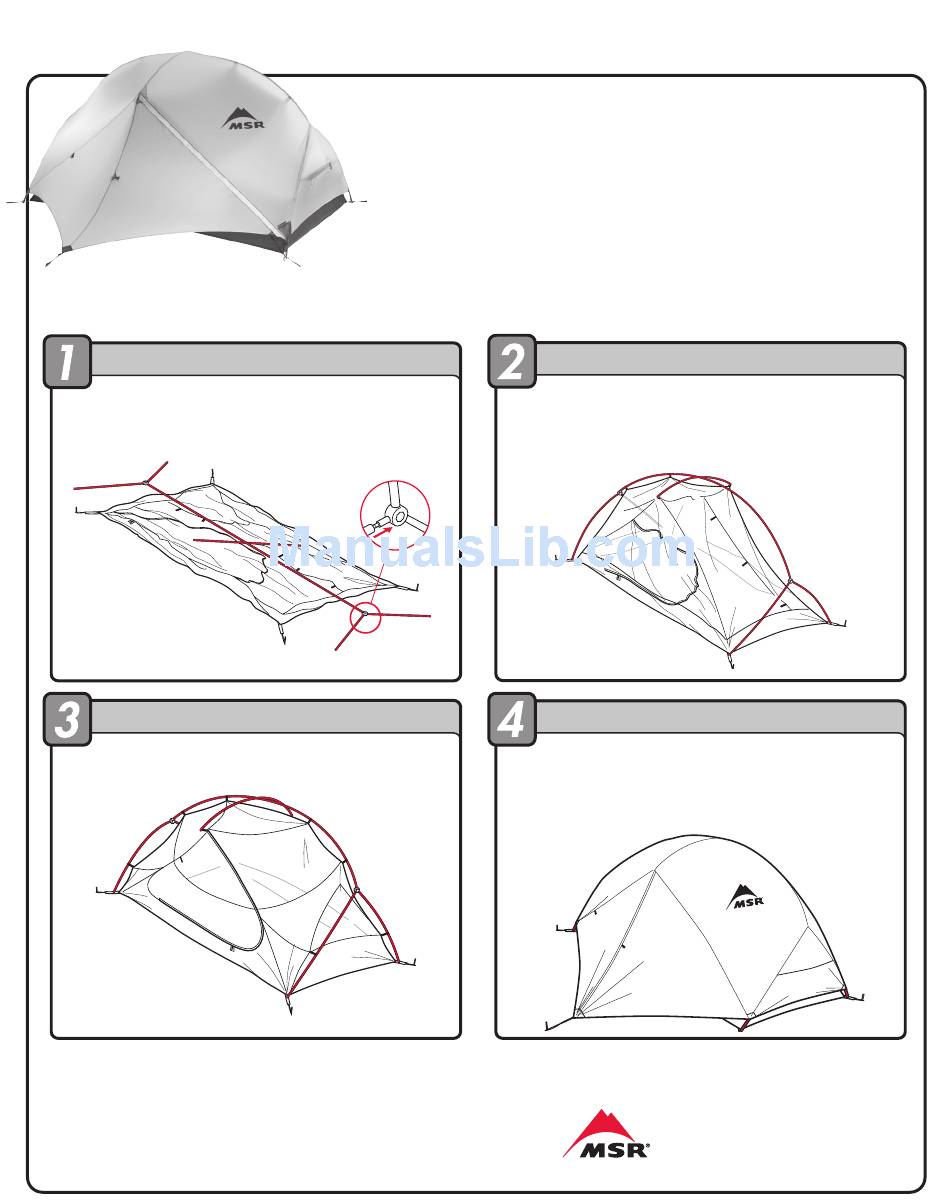

P R EPA R E F O R S ET UP
1. Spread tent out and stake out four corners tightly.
2. Assemble poles.
AT TA C H C L I P S
1. Attach clips to pole along length of tent and ridge pole.
USE TIPS: All tents require staking; unsecured tents are susceptible to
wind damage. In some conditions, additional stakes and cord may
be required. Readjustment of stakes and rainfly may be necessary
to keep tent tight and weatherproof. A footprint can help keep your
tent clean, dry and protected from abrasion. Following these tips will
prolong the life of your tent. MSR
secure, maintain and enhance your tent.
For German, French, Spanish, Italian, Dutch and Japanese instructions go to www.msrgear.com/tents/ownersmanual
HU BB A H U BB A
As s em b l y I ns t r u ct io n s
Please follow these instructions to guide you through assembly only.
For complete instructions on the recommended care and use of your tent,
please refer to Owner's Manual at www.msrgear.com/tents/ownersmanual
offers a full line of accessories to
®
Watch video setup instructions, including Fast & Light
at www.msrgear.com/HubbaHubba
AT TACH HU BBED POLES
1. Insert tips of two hubbed poles into grommets at one end of tent
floor, followed by the remaining two at the other.
2. Insert short ridge pole into two grommets at midpoint of tent
ceiling.
AT TACH RAINFLY
1. Lay rainfly over tent, aligning red webbing to red stake loops,
gray webbing to gray stake loops. Attach the rainfly's midpoint
grommets to ridge pole.
2. Stretch out vestibules until taut and stake down, making sure
seams align with frame.
M S R
O U N T A I N A F E T Y E S E A R C H
N X
™
options,
®
© 2014 Cascade Designs, Inc.
4000 First Avenue South
Seattle, WA 98134 USA
1-800-531-9531
1-206-505-9500
®
