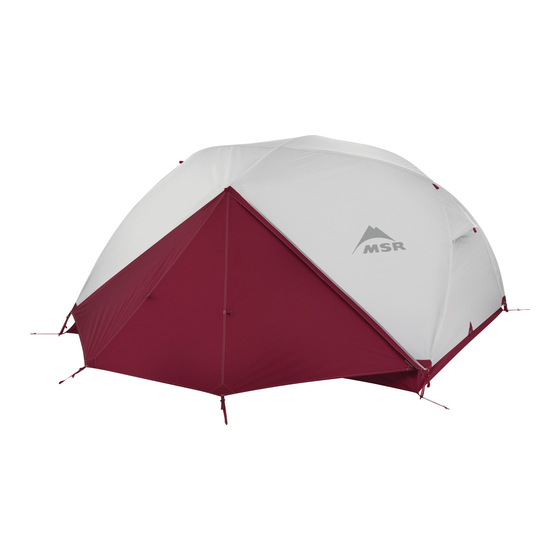

MSR ELIXIR 3 Assembly Instructions

81-461

PackagE IncLudEs:

Frame assembly, tent body, rainfly, 6 stakes, 1 repair sleeve
P R EPa R E F O R s ET uP
1. Spread tent out and stake out four corners tightly.
2. Assemble poles.
aT Ta c h R I d gE PO L E
1. Insert red ridge pole into grommets above doors, making sure
ridge pole rests on top of main poles.
usE TIPs: All tents require staking; unsecured tents are susceptible to
wind damage. In some conditions, additional stakes and cord may
be required. Readjustment of stakes and rainfly may be necessary
to keep tent tight and weatherproof. A footprint can help keep your
tent clean, dry and protected from abrasion. Following these tips will
prolong the life of your tent. MSR
secure, maintain and enhance your tent.
For German, French, Spanish, Italian, Dutch and Japanese instructions go to www.msrgear.com/tents/ownersmanual
E LI X IR
A s se m b l y I n s t r u ct io n s
Please follow these instructions to guide you through assembly only.
For complete instructions on the recommended care and use of your tent, please
refer to Owner's Manual at www.msrgear.com/tents/ownersmanual
offers a full line of accessories to
®
3
™
Watch video setup instructions, including Fast & Light
option, at www.msrgear.com/Elixir3

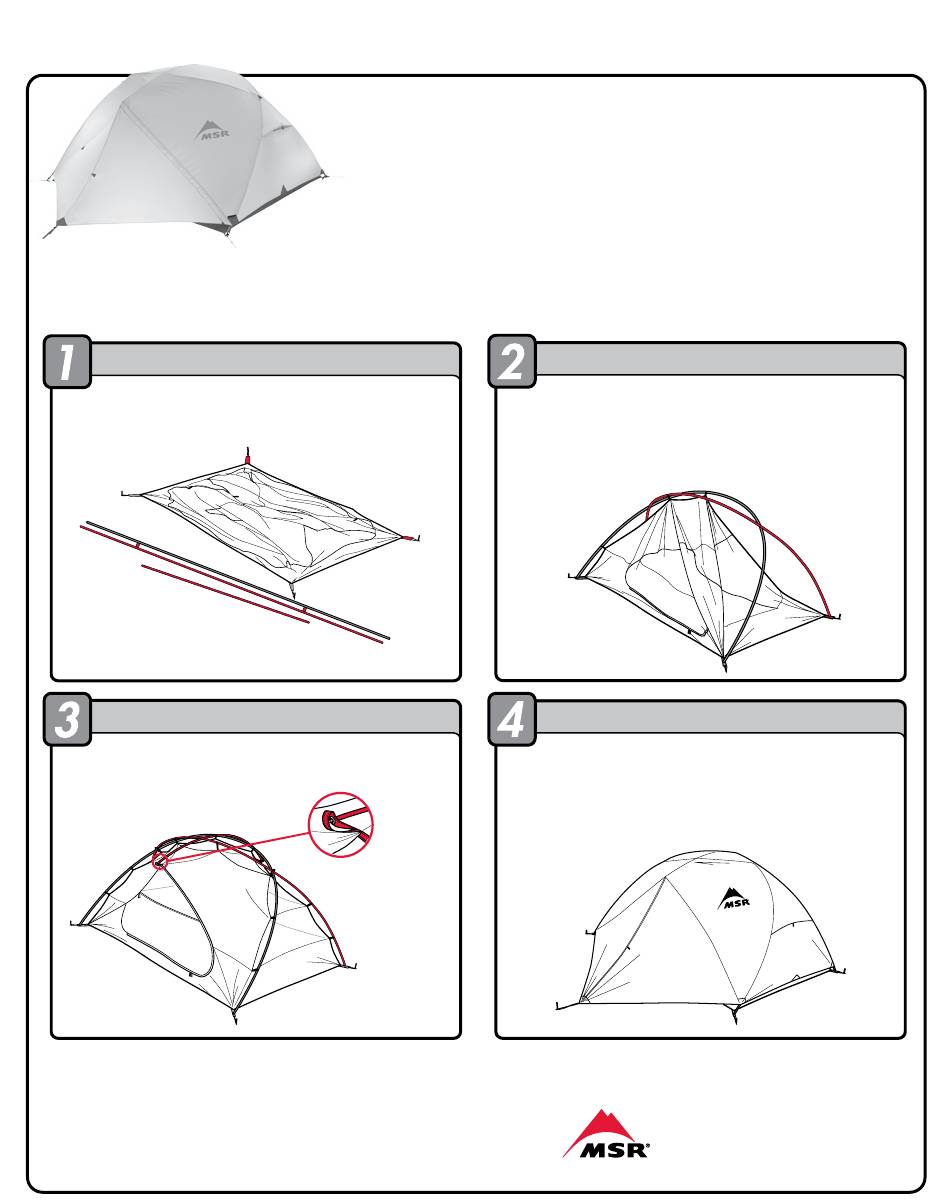

assEmbLE T EnT
1. Insert each red pole tip of main poles into grommets on the stake
loops with red webbing.
2. Insert each gray pole tip of main poles into grommets on the
stake loops with gray webbing.
3. Attach color-coded clips to like-color pole along entire length of
frame assembly.
aTTach RaI nFLy
1. Lay rainfly over tent. Attach rainfly's midpoint grommets to ridge pole.
2. Clip and tighten all buckles at all stake loops, connecting red web-
bing with red stake loops, gray webbing with gray stake loops.
3. Stretch out vestibules until taut and stake down, making sure
seams align with frame.
