Summary of Contents for Hyundai H-CDM8068

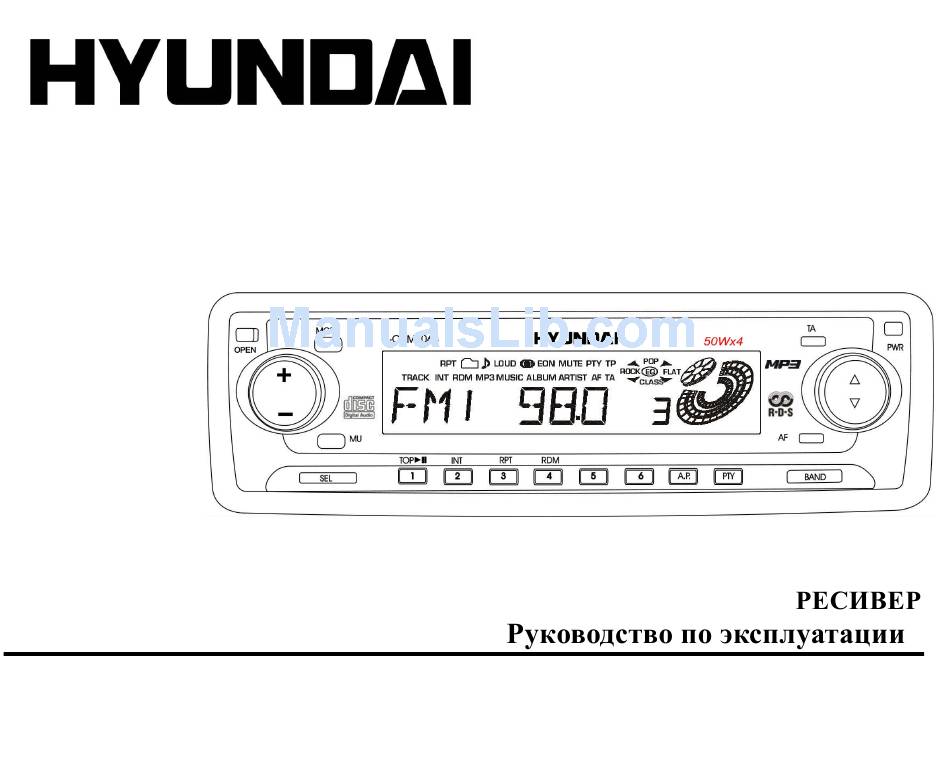

- Page 1 H- CDM8068 CD/MP3-RECEIVER CD/MP3- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents..............................2 Important safeguards............................3 Installation/Connections............................4 Panel controls ..............................7... -
Page 3: Important Safeguards
Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/Connections
Installation/Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. - Page 6 Speaker connection Notes: · In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. · Prohibit to make the conductors of auto antenna and ground touch with each other.
-
Page 7: Panel Controls
Panel controls 1. OPEN BUTTON. Press it to flip down the front panel and you can insert the disc into the CD compartment or press the EJ button to eject the disc from the disc compartment. 2. MODE BUTTON. Press it to select RADIO or CD mode. 3. - Page 8 Press the button to eliminate or resume the sound immediately. To resume the sound immediately, can also press MODE, BAND, +, -, (LOUD), SEL button. 8. PRESET STATION [1-6] AND TOP/CDP, INT, RPT, RDM BUTTONS. In MP3 mode 5 and 6 buttons are assigned as 10 TRACK up / down when normal play. 9.
-
Page 9: Function Of Controls
Function of controls Volume mode Press SEL button shortly and repeatedly to select sound mode VOLUME, BASS (without preset DSP), TREBLE (without preset DSP), BALANCE and FADER, then press + or - button to adjust level of the selected sound mode. Menu mode Press SEL button hold for more than 1 second to turn on MENU mode, and the LCD will display TA SEEK/TA ALARM, then press SEL button shortly and repeatedly to select MASK DIP/ MASK ALL,... - Page 10 Note: · If the selected track number is bigger than the biggest track number in the MP3 disc, it will play the last track in the MP3 disc. MP3 File search Press A.P button shortly twice to select FILE SEARCH mode, the LCD will display FILE SCH. Press SEL button shortly once to select and display the first folder.
- Page 11 station with step by step. Press button hold for more than 0.5 seconds to automatically tune up or down for the radio station of strong signal. 2. In radio mode, press it to perform all stations memory for 5 second search time, while memory digital and frequency will flash on LCD.
- Page 12 The current traffic announcement is canceled by pressing this key. But the TA mode will not be off. When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic program identification code has been received. When TA is on, traffic program identification code is not received during specified time.
- Page 13 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN 6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT AF Mode When pressed short, AF switching mode is selected and the state of AF switching mode is displayed by AF segment in display.
-
Page 14: Mp3 Overview
MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. -
Page 15: Anti-Theft System
· You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files. · With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. -
Page 16: Handling Compact Discs
Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·... -
Page 17: Troubleshooting Guide
Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected No power to the car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the player. - Page 18 The radio does not The antenna cable is not connected the Insert the antenna cable firmly select a work, signals are too weak. station manually. the radio station automatic selection does not work.
-
Page 19: Specification
Specification General. Power supply: 13.8V DC Current consumption max. 15A Maximum power output: 50Wx4 channels Fuse: Dimensions (W x H x D) 178 x 50 x 165 mm FM Stereo Radio. Frequency range: 64.0 -108.0 MHz Usable sensitivity: 3 uV I.F. - Page 20 ................................20 ...........................21 ............................25 ..........................27 3................................33 ..........................35 ..........................35 ..............................36 ....................37 ..........................39...
- Page 21 · · · · · · · · · · · · · CD-R CD-R/W · CD-R CD-R/W CD-R 4x CD-R/W.
- Page 24 · ·...
- Page 25 OPEN. MODE. RADIO EJECT OPEN, V-SEL/ MENU/ ENTER(SEL) VOLUME -UP/DOWN, MENU-UP/DOWN(+/-). (MUTE).
- Page 26 MODE, BAND, +, -, (LOUD), SEL. (1-6) TOP/CDP, INT, RPT, RDM. PTY ( AF ( RADIO.
- Page 27 VOLUME VOLUME, BASS ( DSP), TREBLE ( DSP), BALANCE FADER, MENU. TA SEEK/ TA ALARM, MASK DPI /MASK ALL, DSP OFF/POP M/ROCK M/CLASS M/FLAT M, LOUD ON/LOUD OFF, ESP12/ES45, BEEP ON/BEEP OFF, SEEK1/SEEK2, STEREO/MONO, LOCAL/DX, VOL LAST/VOL ADJ. ( VOL ADJUST, A-VOL VOL ADJUST, TRACK SEARCH (...
- Page 28 · FILE SEARCH, FILE SCH. CHARACTER SEARCH, CHAR SCH. 0-9 * A-Z 0-9 A-Z 0-9...
- Page 29 · (1-6) TOP/CDP, INT, RPT, RDM TA ( TA SEEK.
- Page 30 SEEK, (SCAN), AUTO MEMORY...
- Page 31 PTY ( PTY MUSIC PTY SPEECH PTY OFF PTY TYPE PTY TYPE PTY MUSIC SPEECH, PTY. PTY. PTY, NO PTY, (1-6) ª ª 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M 2. SPORT, EDUCATE, DRAMA 3.
- Page 32 SEEK, (SCAN), AUTO-MEMORY RDS. REGION ON/OFF. PI SEEK AF CHECK) PI SEEK. (PI CODE COVERAGE AREA AF CHECK).
- Page 33 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 256. · · · VBR, VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R...
- Page 34 · MP3 CD-R CD-RW · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
- Page 35 POWER OPEN, · · ·...
- Page 36 · · · · · · ·...
- Page 37 ». RESET.
- Page 39 13.8 , 178 50 165 64.0 108.0 10.7 522-1620 CD/ CD-R/ CD-RW/ MP3 44,1 20-100 10-20 . 1200...
