H-CMD7084
DVD/CD/MP3-RECEIVER
DVD/CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CMD7084 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CMD7084

Summary of Contents for Hyundai H-CMD7084

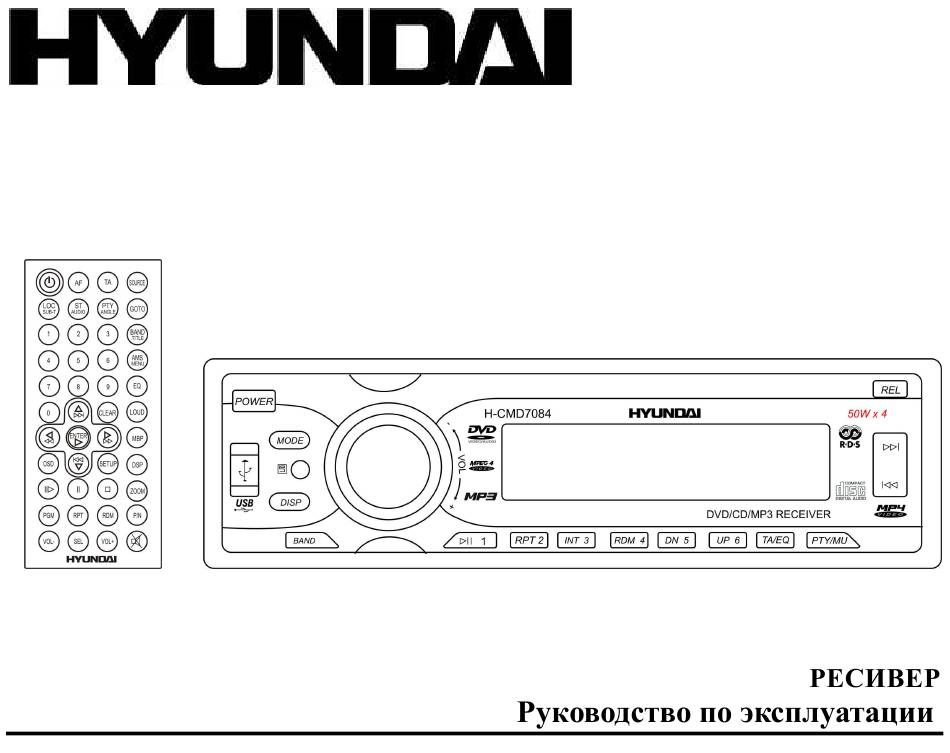

  • Page 1 H-CMD7084 DVD/CD/MP3-RECEIVER DVD/CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Installation.................................4 Panel controls ..............................8...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Installation

    Installation Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.
  • Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  • Page 6 Electrical connection ISO socket ISO socket ISO connector ISO connector...
  • Page 7 Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

  • Page 8: Panel Controls

    Panel controls Front panel 1. POWER button Press POWER button to turn the power on, press again to turn the power off. 2. MODE button Press to select radio mode or playback mode. 3. VOL knob/ SEL button Rotate VOL button clockwise to increase the volume level; rotate anticlockwise to decrease the volume level.
  • Page 9 5. REL button Press it to flip down the front panel and you can insert the disc into the compartment or press the EJECT button to eject the disc from the disc compartment. 6. NEXT / PREVIOUS buttons Use these buttons to search for the beginnings of the next/ previous tracks or manual seek tuning. 7.
  • Page 10 Back of the front panel Press the REL button to open the panel and press EJECT button to eject the disc. Disc eject Disc slot: insert a disc for playback here Reset hole Panel status indicator Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down;...

  • Page 11: Remote Control

    Remote control 1. AF button Press it to select the RDS station. 2. POWER button Press to turn on or off the unit. 3. ST/ AUDIO button During radio mode, press it to select the mono or stereo channel; during DVD mode, press it to select the audio language.
  • Page 12 9. PAUSE button Press it to pause or start the playback. Under the pause status, press it to play. 10. PGM button Press it to activate the program playing. 11. RPT button For DVD: use this button to play titles or chapters repeatedly. For CD/ VCD: use this button to play current track repeatedly.
  • Page 13 21. LOUD button Press it to activate LOUD function. 22. CLEAR button Press it to eradicate mistakes. 23. EQ button Press to select the corresponding preset modes to adjust the sound quality. 24. AMS/ MENU button During radio status, shortly pressing it to scan the each stored station 5 seconds; keep pressing it to activate the AMS function.
  • Page 14 Changing the battery 1. Press the catch and at the same time pull out the battery tray. 2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach.

  • Page 15: Glossary

    Glossary PBC (PlayBack Control) Playback Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

  • Page 16: Features

    Features Fully compatible Fully compatible with the most popular discs formats such as DVD, CD, CD-R (containing MP3, JPEG), CD-RW represented in the market. Upgrade intelligently Support the function of upgrading the software for playing discs of new formats to keep up with the market competition.

  • Page 17: Compatible Discs

    Compatible discs DVD Video DVD disc include video and audio data. The data can contained by the 12 cm diameter of DVD disc is 7 times of one can contained by the common CD-R disc. Its maximum continuous playback time can be up to 2 hours (one of double-sided disc can be up to 4 hours).
  • Page 18 CD-R/CD-RW Compatible with CD-R/CD-RW disc with ISO9660 specification include the format of MP3, JPG, JPEG, Ac3, PCM, MPG, MPE. DVD+/-R Compatible with DVD+/-R disc with UDF specification include the format of MP3, JPG, JPEG, Ac3, PCM, MPG, MPE.

  • Page 19: General Operation

    General operation Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button on the panel to open the panel and press the RESET hole with a point object to restore the unit to the original factory settings.
  • Page 20 Turning the sound off Press the MUTE button on the RC or PTY/ MU on the panel to turn the sound off. Press it again or use the VOL +/- buttons to turn the sound on. Loud function Press LOUD button to activate LOUD function. You can press this button to increase the low frequency, which can improve sensitivity for your ears.
  • Page 21 Setting the time Displaying time: Press DSP button on the RC or DISP button on the panel to display the current time on the LCD, it returns to original after 3 seconds. Setting time: Press and hold DSP button on the RC or DISP button on the panel until the two points in the middle of the clock stop blinking, you can rotate VOL button on the panel or press VOL buttons on the RC to adjust hours.

  • Page 22: Digital Tuner

    Digital tuner Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press POWER to power on, then press SOURCE button on the RC or MODE button on the panel once or more to select Radio mode.
  • Page 23 To recall a station: Select a band (if needed) Press a Preset button (1-6) briefly to recall the stored station During radio mode press the buttons on the RC to select upward or downward stored stations. AMS function (Auto Memory Store) Preset scan: press AMS button for less than 1 second to scan all preset stations in the memories of the current band and stay on each memory stations for about 5 seconds.
  • Page 24 AF function (Alternative Frequencies) Press AF button on the RC to turn on or turn off the AF function. After turning on, if the RDS signal is week or even no signal, the unit will search the RDS stations in the existed frequencies or in the whole band. AF blinking on the LCD at the same time.
  • Page 25 Note: Under radio mode, keep pressing PTY button on the head unit performs MUTE function. Under other modes, briefly pressing it performs MUTE function. TA (Traffic Alarm) function Press the TA/ EQ button on the panel or TA button on the RC to set TA mode on or off. When TA is on, the display shows TA .

  • Page 26: Cd/Usb Operations

    CD/USB operations Discs for playback This set can play the digital audio CD, DVD/DVCD/SVCD/VCD/MP3/WMA/CD-R/ CD-RW/DVD±R/MPEG4/DivX/JPEG playback. Max. track number is 448 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc :8 KHz to 48 (44.1 KHz preferably) KHz Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
  • Page 27 Loading a disc 1. Press REL button on the panel to slide down the panel. Insert the disc with the printed side facing upward into the slot. 2. Press REL button to slide down the panel. Press EJECT button on the panel to eject the disc. Playing a disc When the disc/ USB device has been already loaded the playback of the first track starts automatically.
  • Page 28 Pausing playback When pressing the PLAY/ PAUSE button on the panel or PAUSE button on the RC during playback, pause mode is set. Press again to resume playback. Stop playback For DVD/ VCD discs: 1. During playback press STOP button to pause the playing, the unit can memorize the play point. 2.
  • Page 29 Scanning forward and backward 1. Press the buttons on the RC to fast the playing when playing in forward/ backward direction. 2. Change the playing speed to X2, X4, X8, X16 and normal for every pressing the button. Note: During the disc playback when Fast/ Reverse Playback gets to the beginning of the playing title/ chapter/ track, it resumes normal playback.
  • Page 30 Setting the playing time For DVD/ VCD discs: 1. During the DVD mode press the GOTO button on the RC to set the playing time. The display will show: Title/ Chapter/ Sound/ Captions/ Angle/ Title time/ Chapter time/ Repeat playing/ Time option. 2.
  • Page 31 Playing from the menu For DVD discs: 1. If the disc is a DVD, press the MENU or TITLE buttons on the RC, the root menu will appear on the screen. The display will show all the chapters or titles. 2.
  • Page 32 Changing the subtitle For DVD discs only. Press LOC/SUB-T on the RC to select the sub-title when the main unit is in play mode. There are 3 supported subtitles: Subtitles 1 => Subtitles 2 => Subtitles OFF. Note: mark on a DVD's package indicates it features multi-subtitle recordings. The number in the mark on a DVD's package indicates the number of recorded subtitle languages.
  • Page 33 Random playback For VCD/ CD discs only. You can play all the tracks in random order. 1. During disc playback, press the RDM button on RC and the panel. 2. Press again to select normal playback. Program playing For VCD/ CD discs only. The Program playback option allows you to enter the order in which you want chapters or tracks to play.

  • Page 34: System Setup

    System setup 1. Press SETUP button on the RC to enter the setup menu. In Setup mode, press SETUP key again to quit the setup page. 2. Use the buttons to choose the setup page: General page, Dolby setup, Preference page, Exit. 3.
  • Page 35 CAPTIONS This function doesn't work when the disc without caption. If the caption is Off, press SUBTITLE key on the remote controller to make caption on. The default setup is On. SCREEN SAVER If the Screen saver is set On and the unit is switched on without a disc playing for 3 minutes, a moving picture appears on the screen.
  • Page 36 Preference setup TV TYPE This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Multi. Auto: the TV system is auto switched according to the disc system. NTSC: this system is used in USA, Taiwan, Japan etc. PAL: this system is used in China, Europe, Hong Kong etc.
  • Page 37 PASSWORD CHANGE The password option is initialized as locked, and you cannot set the ratings limit or change the password. In order to the Parental feature works, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 8888, then press ENTER to confirm.

  • Page 38: Anti-Theft System

    Anti-theft system Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press REL button to flip down the panel. 3. Hold the middle of the panel. Take off one end, and then take off the other end. 4.

  • Page 39: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 40: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected to the car No power The fuse is blown. accessory switch the ignition key to ACC . Replace the fuse. Disc Presence of disc inside the player.

  • Page 41: Specification

    Specification General. Power supply: 14.4 V DC Current consumption/Fuse: max. 15 A/ 15 A Maximum power output: 50 W x 4 channels Dimensions (W x H x D) 178 x 50 x 192 mm Working temperature range: -10º - +60º FM Stereo Radio.
  • Page 42 ..............................42 ..........................43 ..........................44 ............................48 ............................51 .........................55 ........................56 .......................57 ............................59 ............................62 ..................66 ............................75 ..........................79 ............................80 ..............................81 ....................82 ........................83...
  • Page 43 -10º...
  • Page 44 (5 x 25...
  • Page 45 (5 8 (4 8...
  • Page 47 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 48 POWER POWER, MODE VOL/ SEL. SEL,...
  • Page 49 EJECT PTY/ MU PTY ( PTY/ MU. TA/ EQ TA ( UP/ DN ( , INT ( Intro. PLAY/ PAUSE [1-6]...
  • Page 50 BAND BAND DISP EJECT RESET RESET...
  • Page 51 POWER ST/ AUDIO MONO STEREO. LOC/ SUB-T ENTER (...
  • Page 52 SLOW PAUSE DVD: CD/ VCD: VOL +/ VOL -/ SEL VOL +, VOL -, SEL, MUTE DVD VCD STOP...
  • Page 53 ZOOM SETUP MBP ( LOUD LOUD ( CLEAR AMS/ MENU AMS. DVD, VCD BAND/ TITLE BAND ID3. GOTO...
  • Page 54 PTY/ ANGLE SOURCE TA ( (CR 2025 3V),...
  • Page 55 PBC ( PBC, DVD-...
  • Page 56 DVD, CD, CD-R ( MP3, JPEG), CD-RW, icture CD, Photo CD icture CD Photo CD (Screen Saver) (Screen Saver). Screen Saver.
  • Page 57 DVD Video DVD- CD-R DVD- SVCD SVCD MPEG2. VCD. . SVCD VCD2.0 VCD1.1 VCD2.0 VCD2.0, VCD1.1 Picture CD VCD1.1 ( ) 74 DVCD DVCD. DVCD . DVCD CDDA CD-DA. CD-DA CD-DA ) 74...
  • Page 58 MP3/JPEG CD-R/CD-RW/CD-ROM MP3/JPG, CD-R/CD-RW CD-R/CD-RW ISO9660, 3, JPG, JPEG, Ac3, PCM, MPG, MPE. DVD+/-R DVD+/-R UDF, 3, JPG, JPEG, Ac3, PCM, MPG, MPE.
  • Page 59 RESET ( REL. RESET, POWER 6-30. VOL + : BAS (bass), TRE (treble), BAL (balance), FAD (fader), VOL ( VOL + VOL...
  • Page 60 SEL, : VOL/ BAL/ FAD. BAS/ TRE MUTE PTY/ MU VOL +/-, LOUD LOUD LOUD. Loud . TA/ EQ : POP, CLASS, ROCK OFF ( OFF (...
  • Page 61 OFF ( DISP DISP VOL+/- DISP, VOL+/- DISP, (RDS), RDS. SOURCE MODE USB. BAND, : FM 1, FM 2, FM 3, FM (OIRT), AM 1, AM 2.
  • Page 62 RDS ( POWER, SOURCE MODE BAND, : FM 1, FM 2, FM 3, FM (OIRT), AM 1, AM 2 ( 1~6, . CH...
  • Page 63 1~6. AMS ( 1~6. AMS. DISP RDS, DSP/ DISP : PS, PTY ( ), FREQ ( ), CLOCK ( FREQ.
  • Page 64 AF ( RDS. , AF DX/ LOC ( LOC ( Loc . DX ( Mono/ Stereo...
  • Page 65 PTY ( RDS, PTY/ MU Search . PS . PTY, PTY, MUTE. TA ( / EQ...
  • Page 66 CD, DVD/DVCD/SVCD/VCD/ MP3/WMA/CD-R/CD-RW/DVD±R/MPEG4/DivX/JPEG playback. : 448. : 8. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM. USB. USB ( FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500...
  • Page 67 : 32 : 32 (id3tag ver 2.0) USB 2.0. : 8 M ~ 1 EJECT MODE, ERROR. VCD CD, MP3,...
  • Page 68 JPEG, PLAY/ PAUSE PAUSE PLAY/ PAUSE DVD/ VCD/ CD STOP, « » PLAY/ PAUSE, STOP STOP, STOP (DVD, DVD/ VCD/ CD...
  • Page 69 : X2, X4, X8, X16, SLOW : 1/2, 1/4, 1/8 , 1/2, 1/4, 1/8 : 1/2, 1/4, 1/8 => => CD, MP3, VCD RPT,...
  • Page 70 10+, DVD/ VCD GOTO : Title/ Chapter/ Sound/ Captions/ Angle/ Title time/ Chapter time/ Repeat playing/ Time option. ENTER. GOTO : --:--. => => => =>...
  • Page 71 ZOOM : X2, X3, X4, SYSTEM (PAL NTSC) ( : PAL, NTSC, DVD: MENU TITLE ENTER, TITLE PBC. ENTER PLAY, STOP, TITLE. : PBC SVCD, DVD 2.0.
  • Page 72 ANGLE Angle 1 => Angle 2 => Angle 3 ( ANGLE, SUB-T ST/AUDIO Audio 1 => Audio 2 => Audio 3.
  • Page 73 ST/AUDIO => => Intro CD/ VCD...
  • Page 74 CD/ VCD PLAY Start ENTER, ENTER. STOP, BAND,...
  • Page 75 SETUP SETUP DOLBY, ENTER 4:3 PS: 4:3 LB: 16:9:...
  • Page 76 SUBTITLE DOLBY 5,1-...
  • Page 77 FULL OFF ( PAL: NTSC: ST/AUDIO LOC/SUB-T...
  • Page 78 8888), ENTER. 8888 ( ENTER,...
  • Page 79 POWER...
  • Page 82 RESET.
  • Page 83 14,4 , 15 / 15 178 50 192 -10º - +60º : 87.5 - 108.0 / 10.7 522-1620 DVD/SVCD/VCD/CD/MP3/CD-R/CD-RW/DVD±R/MPEG4/ DivX NTSC/PAL 0 - +/-30 16:9 4:3 1.0 , 75 RMS (+/-3 (A-vtd)/ . 2000...
